S&S Cycle Cycle Guardian Diagnostic System User Manual
Page 3

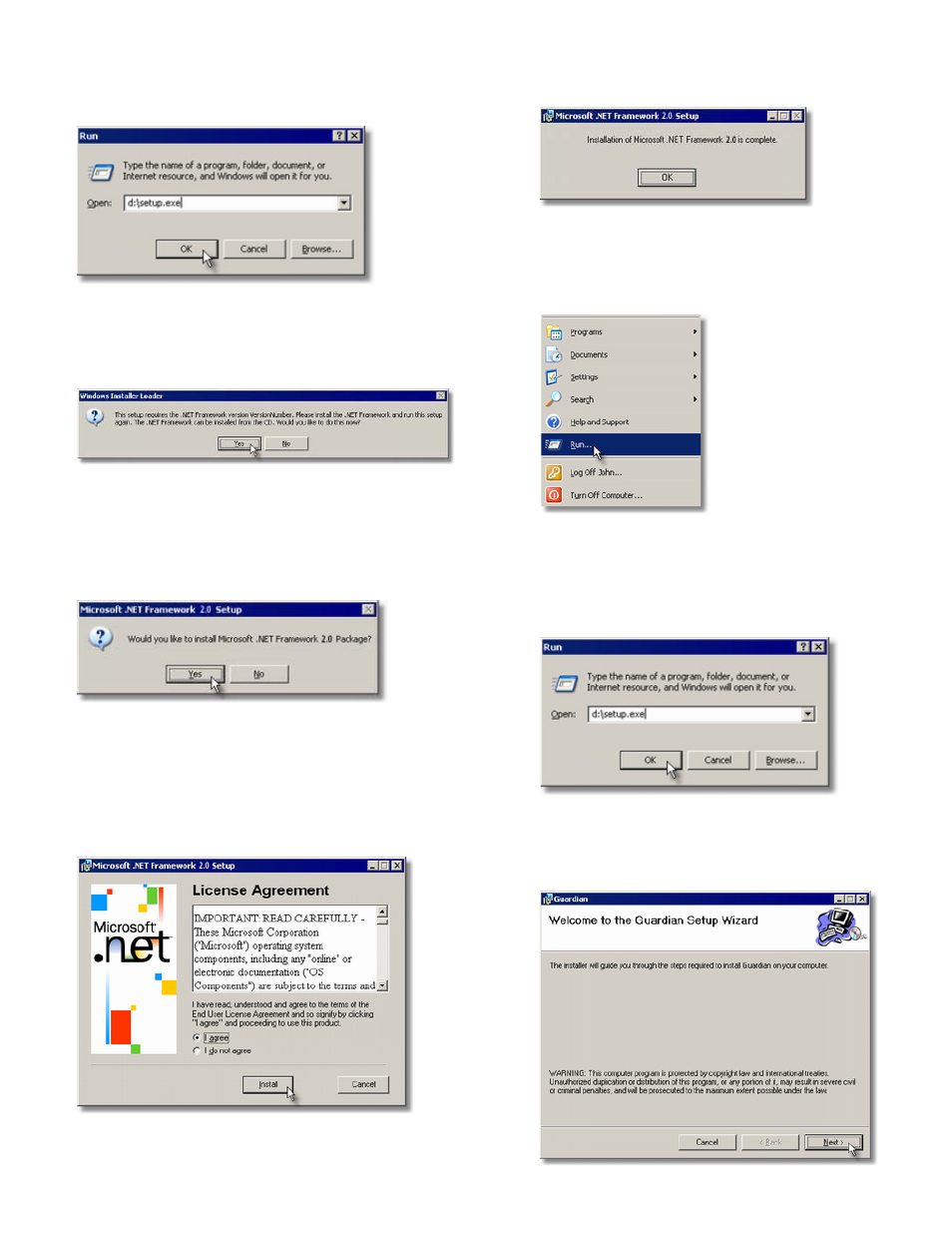

3. Type D:\Setup.exe in the Open box. You may need to replace
the drive letter D: with the appropriate letter for the CD drive
on your computer. Click on "OK" or press "ENTER" to continue.
4. This message box may appear. If it does, click on "Yes" to install
the required software. If it doesn't appear, proceed to step 10.
5. If you had to install the .NET Framework software in the
previous step, confirm the installation by clicking on "Yes"
when this message is displayed.
6. When this license agreement box appears, read the agreement,
select "I agree", and click on "Install". If you do not agree with
this agreement, click on "Cancel" to abort the installation.
Guardian will not run without this .NET software installed on
your computer.
7. This message will appear when the .NET installation is
complete. Click on "OK" to continue.
8. You can now install Guardian. From your start menu, click on
the "Run" menu item.
9. Type D:\Setup.exe in the "Open" box. You may need to replace
the drive letter D: with the appropriate letter for the CD drive
on your computer. Click on "OK" or press "ENTER" to continue.
10. Click on "Next" to continue installing Guardian.
