38
(304.8mm)
minimum
3” (76.2mm)
minimum
A06674

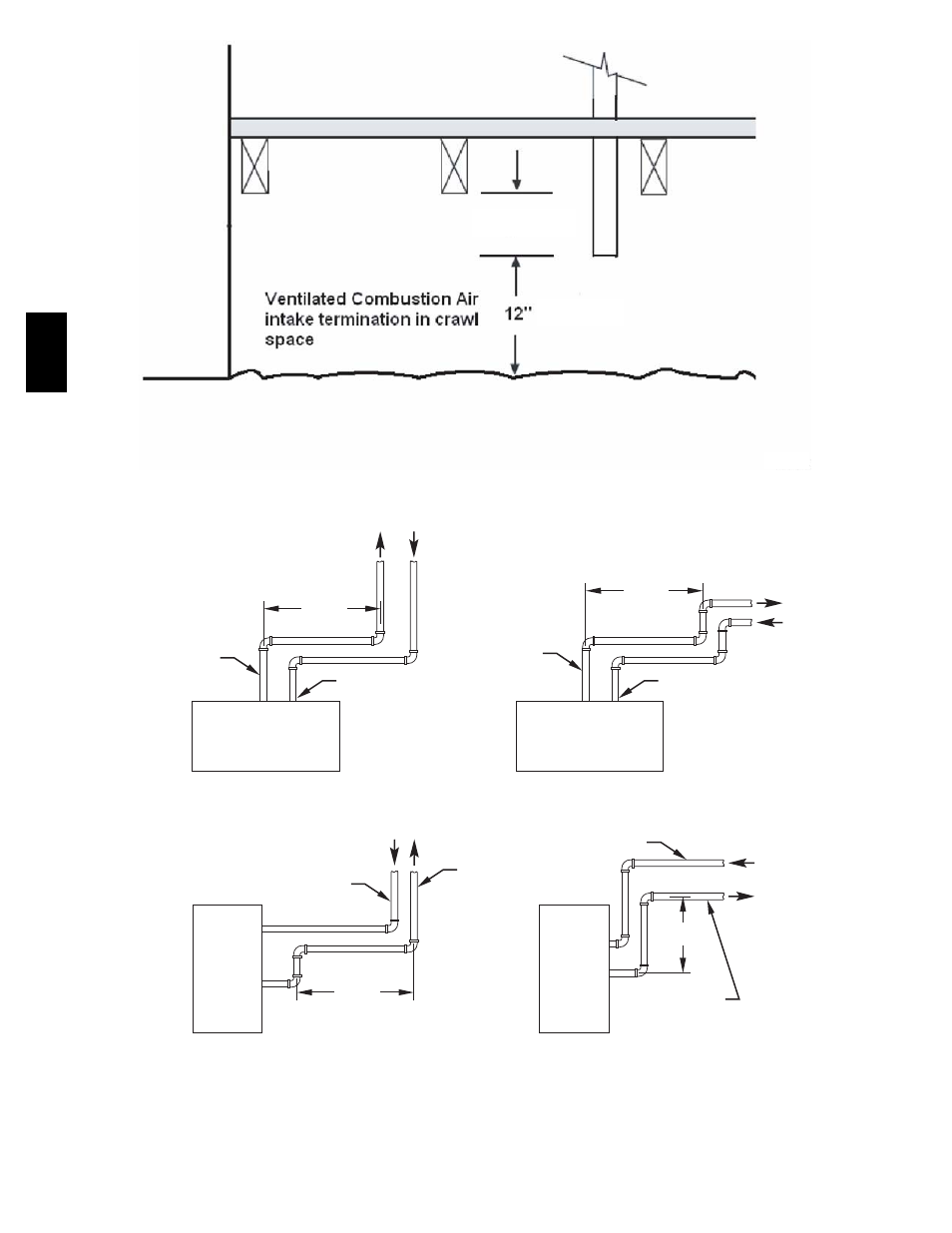

Fig. 43 -- Crawlspace Termination
HORIZONTAL TO ROOF HORIZONTAL TO SIDEWALL
VERTICAL TO SIDEWALL VERTICAL TO ROOF
VENT PIPE
COMBUSTION-AIR PIPE COMBUSTION-AIR PIPE
VENT PIPE
COMBUSTION-AIR PIPE
VENT PIPE
COMBUSTION-AIR PIPE
VENT PIPE
12 ″ MIN
12 ″ MIN
12 ″ MIN
(304.8mm)
12 ″ MIN
(304.8mm)
NOTE: A 12-in. (304.8mm) minimum offset pipe section is recommended
with short (5 to 8 ft / 1.5 to 2.5M) vent systems. This recommendation
is to reduce excessive condensate droplets.
(305mm)
(305mm)
A96230
Fig. 44 -- Short Vent (5 to 8 ft. / 1.5M to 2.4M) System
355C
A
V
