Retsch ZM 200 - Manual (Page 26)

08.02.2012 Retsch GmbH
26
0003

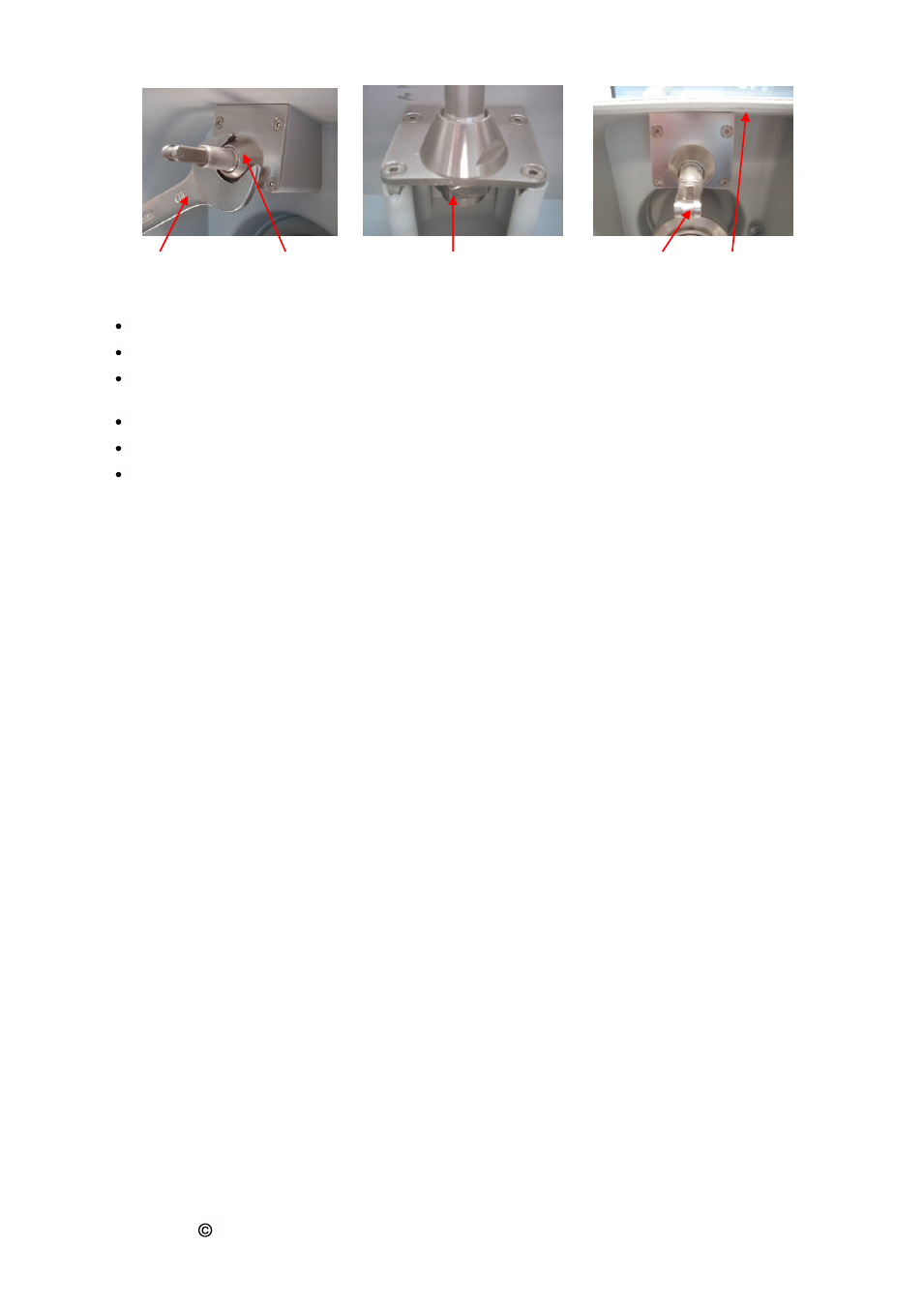

Adjusting the lock if the cassette
cover leaks
1 2 3 4 5
The lock in the housing cover can be subsequently adjusted to rectify leaks in the cassette cover.
Apply open-jaw spanner 1 size 30, not contained in the scope of supply
Undo lock nut 2 by turning it to the left
Turn counter nut 3 by hand in ¼ turns so that the distance between lock roller 4 and lock nut 2
becomes smaller
Repeat the steps above until the cassette cover is sealed again
CAUTION !
Once the adjustment work has been completed, retighten lock nut 2, lock roller 4 should then
be parallel to the edge of housing cover 5
Copyright
Reproducing or distributing this documentation, or utilizing and
distributing the contents is not permitted unless Retsch GmbH
has given express permission to do so.
Violations against this are subject to claims for damages
.
Changes
Technical changes are reserved.
