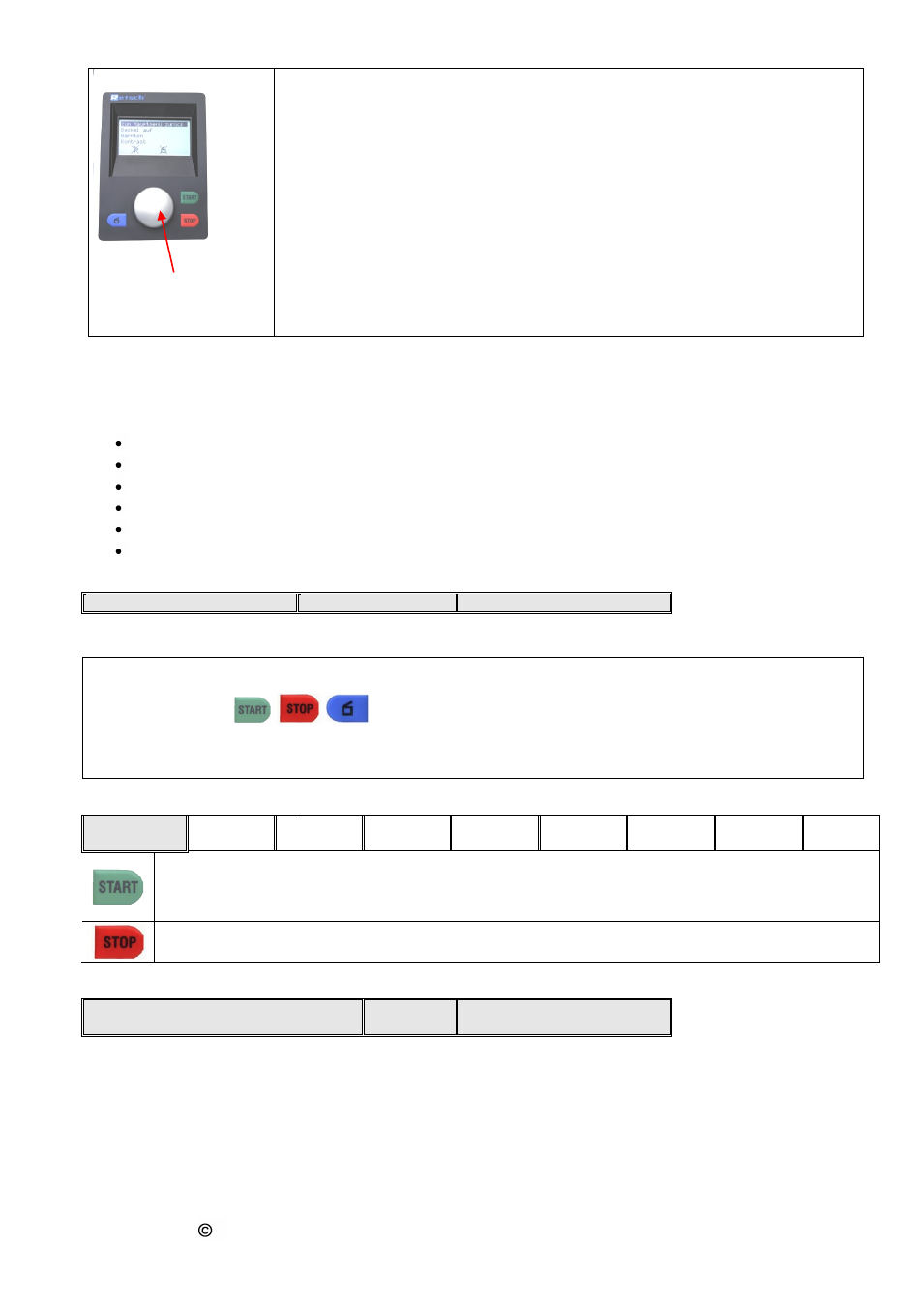

All menu items can be selected and parameters adjusted by turning and pressing
the setting button E.
Turn 1
The different menu items can be selected by turning.
Selected menu items are shown inversely.
Turn 2
Adjust parameters in opened menu items (see Press 1)
Press 1
Selected menu items are opened
Press 2
A short press confirms the adjustment of the parameters
Press 3
Return to the 1
st level menu by continuously pressing the button.
Adjustment options via the display menu
Please consult the menu structure on this page for the setting options on the display explained below. The
selection bar in the display is operated as follows:
Move vertically through the structure by turning the setting button
Move horizontally through the menu structure by pressing the setting button
Adjust numeric values / options by turning the setting button
Confirm settings by pressing the setting button
Return to the previous level of the menu structure with "BACK"
Return to the start screen by prolonged pressing of the setting button
LANGUAGES
MENU DISPLAY LANGUAGES
This allows you to select your language. After making the selection and pressing the setting button the
complete menu structure will be displayed in your language.
Incorrect language selection
If the wrong language has been selected, switch the device off at the main switch.
Hold down the keys simultaneously and switch the device back on.
Once the correct language has been selected, switch the device off and immediately back on again.
Confirm your selection by pressing the setting button.
The device is now permanently set to your language and you should see the main menu
Pre-selecting the SPEED
SPEED 18000 rpm 16000 rpm 14000 rpm 12000 rpm 10000 rpm 8000 rpm 6000 rpm Manual
In manual mode, the speed can be set between 6000-18000 rpm in single steps of 50 rpm. The
ZM200 is started at the speed which you pre-select, the unit likewise starts at this speed after being
turned on at the main switch. A different speed can be set even whilst the device is running by
pressing the setting button.
Once the STOP key has been activated, START can be pressed again immediately!
Preselection of the starting time
SETTING THE STARTING TIME START IN hh:mm:ss
You can use this function to start the ZM200 with a time delay.
- Press the setting button once to enter the setting menu.
- In the SET STARTING TIME menu press the setting button repeatedly to set the start delay in hours,
minutes and seconds.
Press the setting button again to leave the start delay setting.
Once you have selected the speed and closed the housing cover, the device is ready to start.
Press the START button. The set time counts down until the machine starts.
You can stop the delayed start at any time by pressing the STOP button, whereby this will also cancel the
set delay time.
