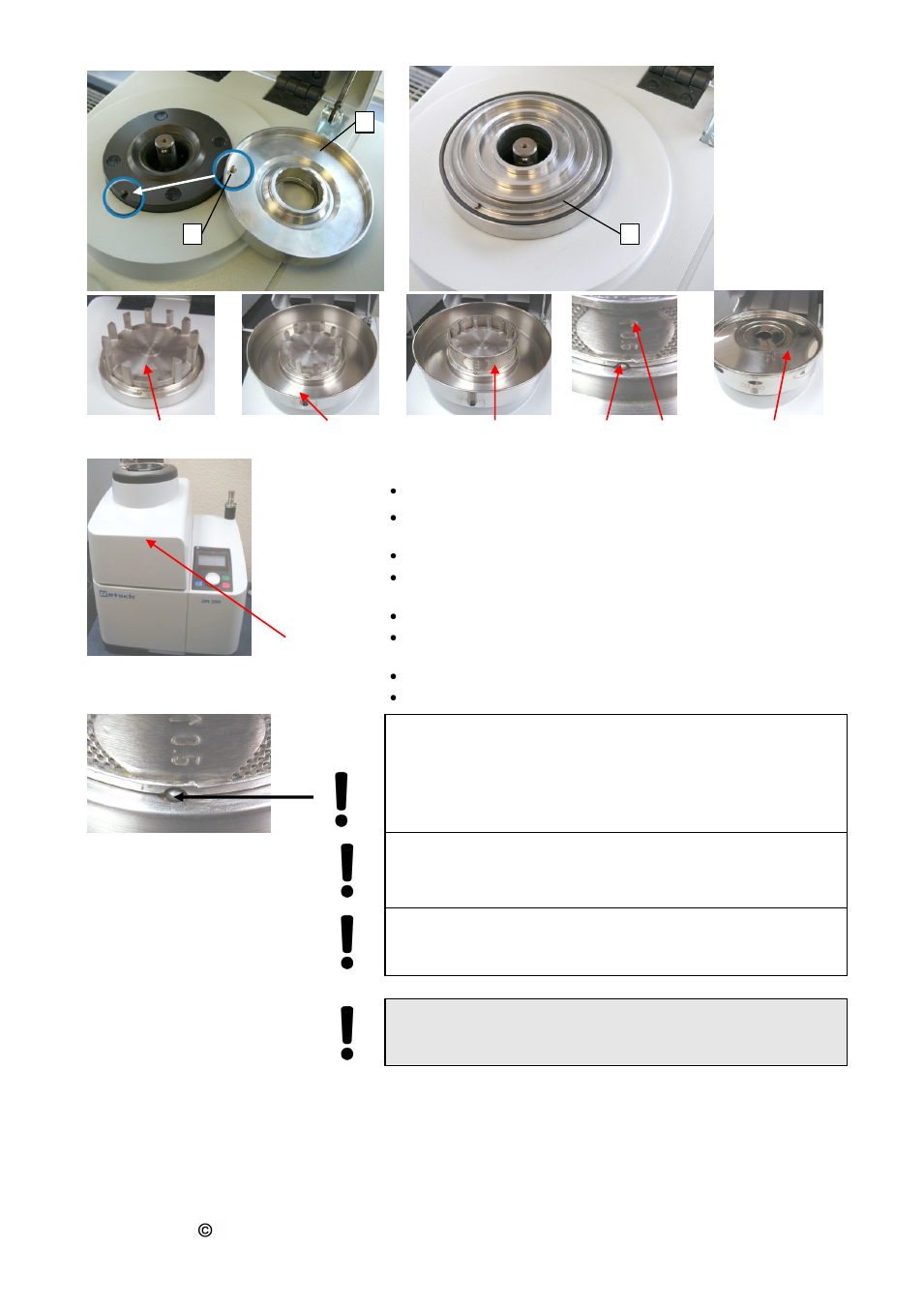

Inserting the grinding tools
A B C D P E
F
No tools are required to insert the grinding tools.
Open the cover of the grinding chamber housing
Insert the labyrinth L disc, pay attention to the torsion lock
V
Install rotor A
Insert the collecting vessel (cassette) B, pay attention to
the torsion lock
Insert the ring sieve C, pay attention to the torsion lock
Ensure that the opening for the torsion lock D below, arrow
P to the right, is sitting correctly
Install cassette cover E
Close housing cover F.
Set the openings for the torsion lock on the collecting vessel and the
ring sieve over the torsion lock pin.
Otherwise the ZM200 cannot be started.
When cold grinding, do not forcibly remove the plug-on rotor, which
jams easily for physical reasons, but rather wait for the temperature to
level out.
Forced removal causes damage to the motor shaft and the
rotor.
Do not forget to re-install the cassette cover.
Without the cassette cover, the motor is blocked by the thrust
pins in the housing cover.
When the rotor is not in use, take it off the shaft. Crevice corrosion
can occur when the rotor is installed.
L
L V
