Transport and assembly
Packaging
The packaging has been adapted to the mode of
transport. It corresponds to the generally applicable
packaging guidelines.
Please retain the packaging for the duration of the warranty
since, in case of complaint, returning in unsuitable packaging
can jeopardize your warranty claims.
Transport
During transportation, do not subject the ZM200 to impacts,
jolts or vibrations. The electronic and mechanical components
could otherwise be damaged.
Temperature fluctuations
In case of wide temperature fluctuations (during shipment by
air, for instance), protect the ZM200 from condensation. The
electronic components could otherwise be damaged.
Intermediate storage
Likewise for intermediate storage, ensure that the ZM200
is stored in a dry place.
Assembly
R
Place the ZM200 on a sturdy laboratory bench.
2 people are required to carry the device.
The net weight of the ZM200 is approx. 38 kg

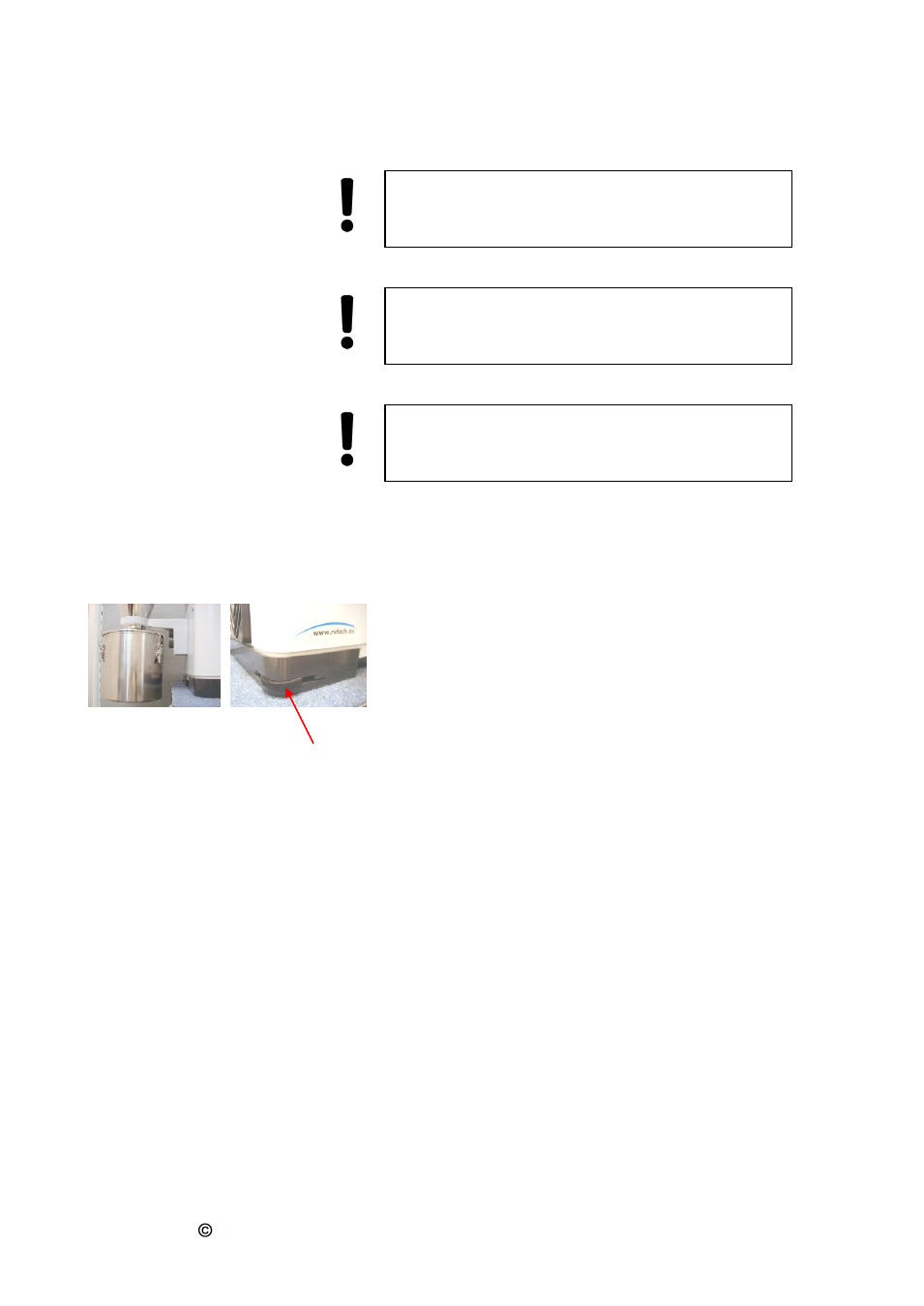

When installing a cyclone with a 5000ml collecting
container, there must be sufficient free space to the left
of the ZM200, see figure, because the cyclone's
collecting container is located below the feet of the
ZM200. This is not necessary for a cyclone with a
3000ml collecting container.
There is the option of compensating for unevenness on
the bench by adjusting the left rear foot of the ZM200
by up to 3mm. Turn wheel R on the foot until the
ZM200 is standing securely on all feet.
