5.6 Inserting the filter unit and collecting receptacle
Pos : 7. 22 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ SM100/ 0015 SM 100 Bedi enung/1565 SM 100 M odul Ri ngsieb Mont age @ 3\ mod_1284973929211_9. doc @ 23764 @ @ 1
The filter unit serves as air outlet for the flow of air generated by the grinding
rotors.

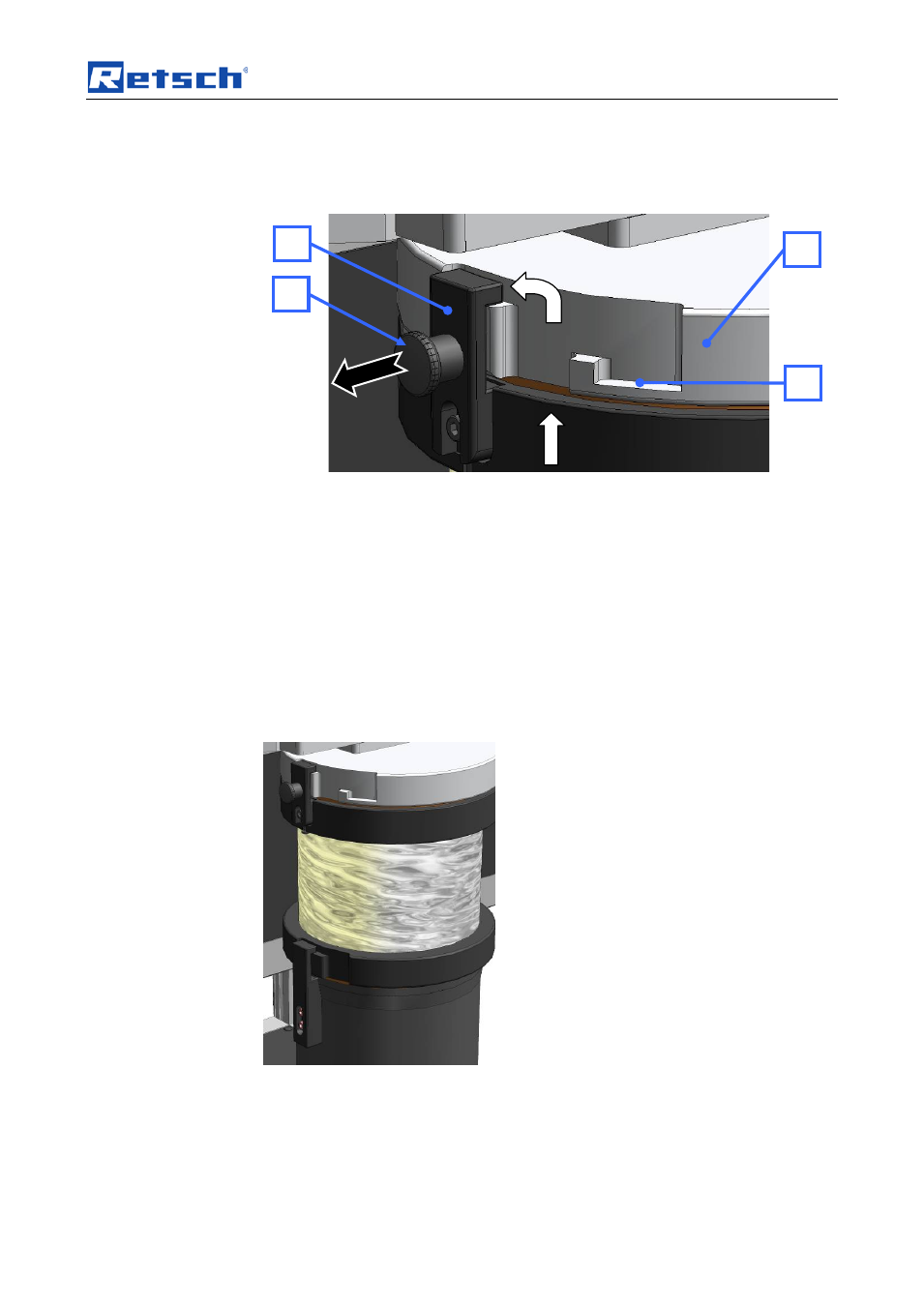

Fig. 2: Attaching and removing the filter unit
• Insert the bayonet lock (BV) on the filter unit (J) into the discharge flange
(AV) as shown in the diagram.
• Twist the filter unit in a clockwise direction to engage the bayonet lock.
• To remove the filter unit, pull the locking pins (RB) out to release the bayonet
lock (BV).
Alternatively the collecting receiver can be placed directly on the discharge flange.
The discharge of the air flow is prevented in the latching position (BV).
In the latching position (LS) a gap remains between the discharge flange and
collecting vessel; this permits air discharge.
Fig. 3: Collecting receiver and filter unit
