05/04/2012

Retsch GmbH
10
0002
Setting-up altitude
max. 2000 m above seal level
Setting up with base frame
8
9
1
2
3
4
5
6
7
Fig.1
Fig.2

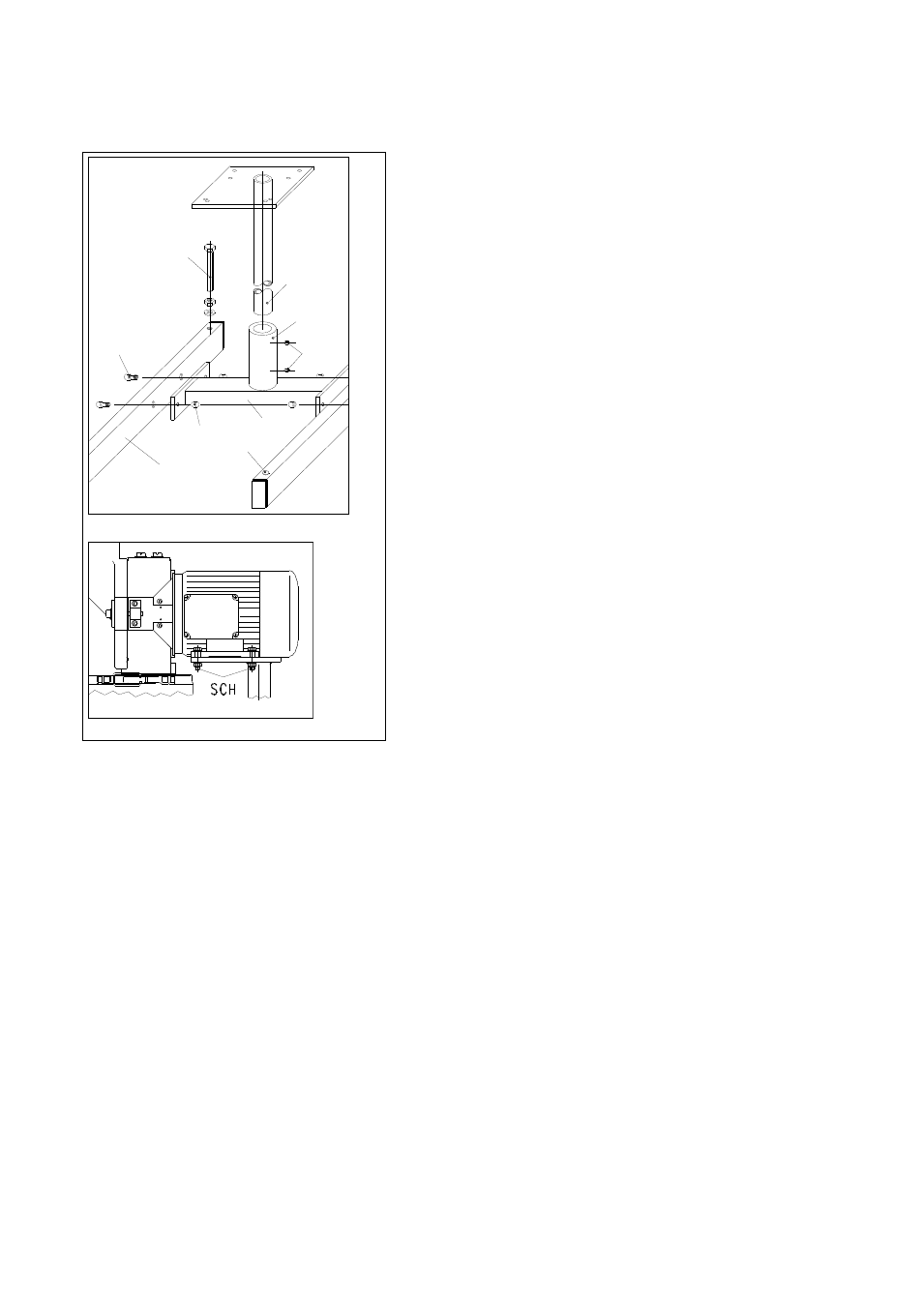

We recommend that the SK 100 be mounted on an base
frame which is available as accessory. Fig.1
Montage:
* Connect centre cross piece 9 and foot side parts 8 using
the cylinder-head screws 1
* Put covering caps 2 on the projecting thread
* Place stand tube 3 in the sleeve 4 and tighten fast with the
headless screws 5
* If necessary, the base frame can be aligned using the cylin-
der-head screws 6
To be able to fasten the base frame with screws, maximum
size 10 mm diam. possible, on the bottom, the two setting
screws 6 and the front plastic caps 7 must be removed.
* Place SK 100 on the base frame Fig. 3
* To fasten the hexagon screws SCH M8x35 supplied with
the base frame, use spring washers and hexagon nuts
