Operating the machine

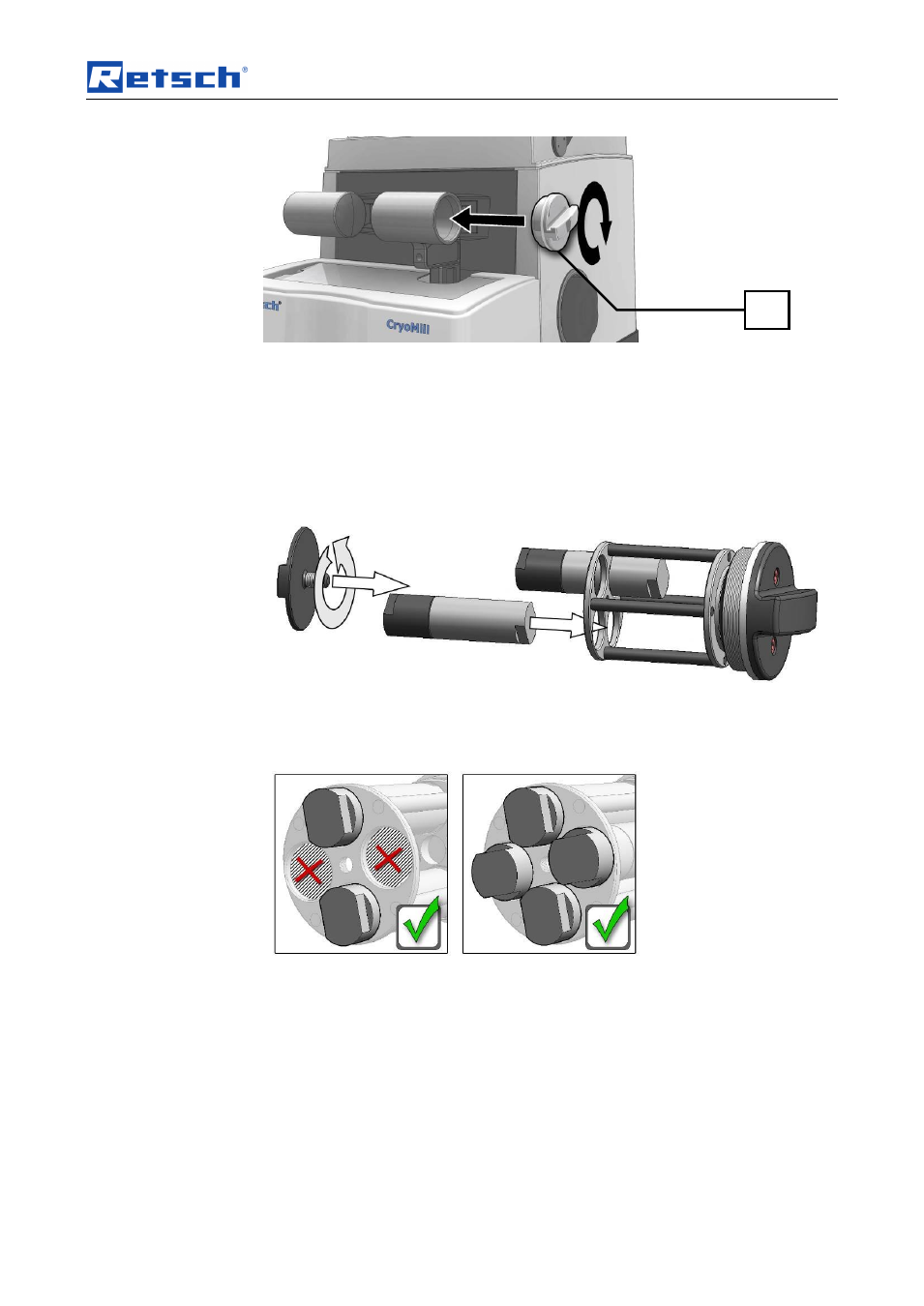

Fig. 24: Inserting the cooling jacket seal

Pos : 6. 23 /00005 Ü berschrif ten/ 1. 1. 1 Ü bersc hrift en/ 111 Adapter f ür 4/2 x 5ml Mahlbec her ei nsetz en @ 0\ mod_1227516748177_9. doc @ 3960 @ @ 1

5.5.3

Insert the adapter for 4/2 x 5 ml grinding jar

Pos : 6. 24 /00010 Bedi enungsanleit ung en Kapitels ammlungen/Cr yoMill II /0007 Bedi enung/0001 Cr yoMill II Modul 5ml M ahlbec her ein setzen @ 5\ mod_1343829229211_9.doc @ 33147 @ @ 1

You can operate the CryoMill with 4 or 2 (5 ml) grinding jars.

•

Insert the 5 ml grinding jars into the adapter as shown in the following
diagram.

Fig. 25: Inserting a 5ml grinding jar

Note the positioning of the grinding jars. If you are using two grinding jars, these
must be inserted in opposite openings.

Fig. 26: 5ml grinding jar position
