RaySafe Solo User Manual
Page 23

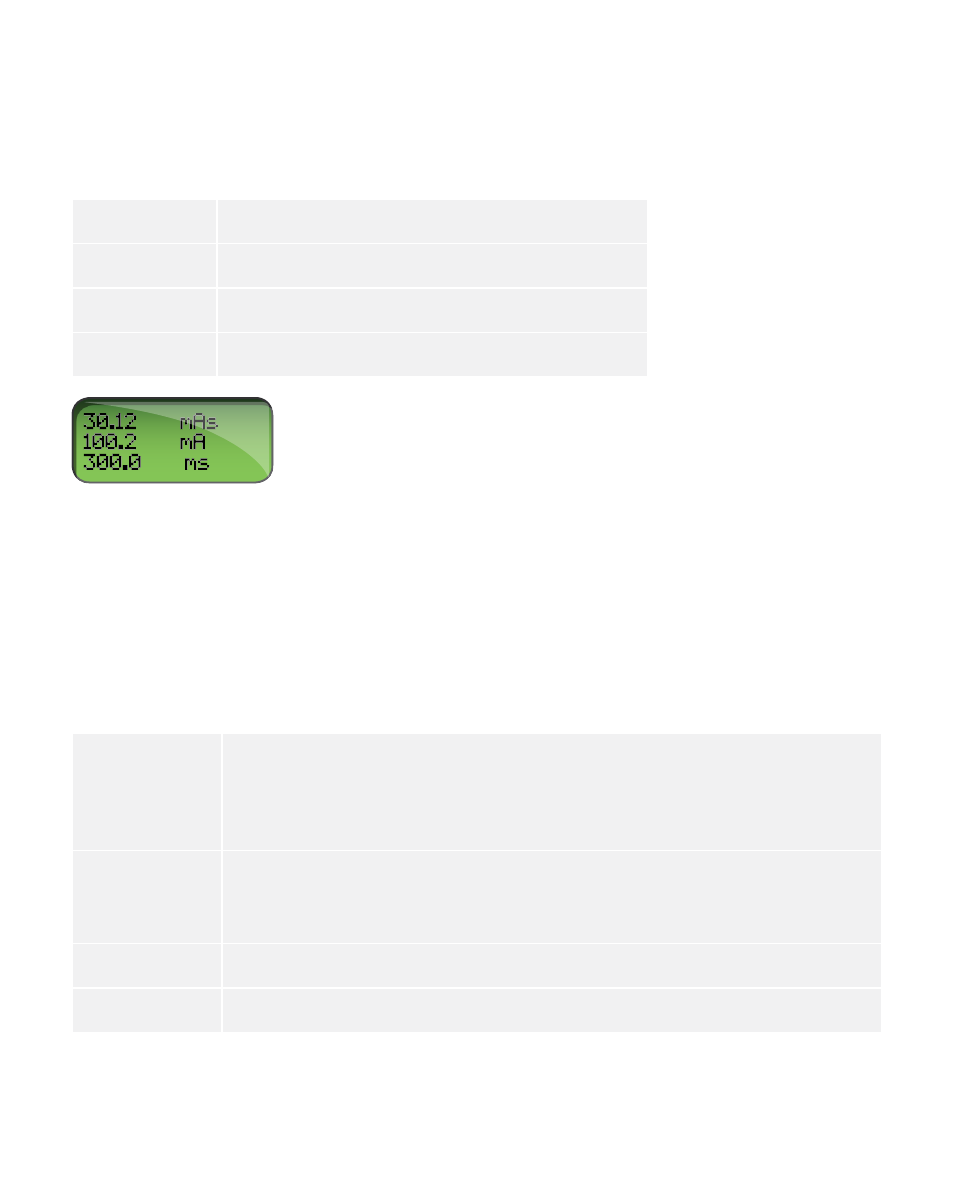

2. MEASURE MODE
After an offset adjustment, the instrument is in MEASURE MODE. the displayed values are updated after each
exposure or continuously after 4 seconds of fluoroscopy.
mAs
mAs
mA
mA
Time
ms, s
Pulses
pulses
3. SETUP MENU
press SELECT to enter the SETUP MENU (from MEASURE MODE) and STEP to step between setup
parameters.
When in the SETUP menu, the active selection will blink. All values are stored in a non-volatile memory and are
valid until manually changed. At start up (after the battery status information), valid trig delay and Calc. delay
are displayed in sequence.
(factory settings in bold.)
Trig delay
A delay in ms after the normal trig of the RaySafe Solo. Utilize when an unwanted part
of an exposure, such as a pre-pulse, should be excluded from the measurement. no
measurements are performed during the trig delay. (0, 5, 10, 50, 100, 200, 500, 1000,
2000 ms)
Calc. delay
defined as the dead time after end trig, before data is calculated. default is 0.5 s but it
is recommended to use a longer delay when measuring on pulsed fluoroscopy where
the time between pulses may exceed 0.5 s. (0.5, 2, 4, 6 s)
Backlight
display lighting option. (off, 2, 5, 10 s, on)
Auto Power Off
never, or after 5, 20 or 60 minutes of inactivity.
23
RaySafe Solo User Manual – mA/mAs Measurement
