8
ASSEMBLY
WARNING: Before rotating the reel
be sure L/H & R/H mounts are well
clamped so that reel cannot tip or
fall.
CAUTION: To prevent cam arm
assemblies from sliding sideways off
of cam tracks as reel is mounted,
wire-tie cam arm assembly to the outer reel
arm assembly (fastened in step 3).

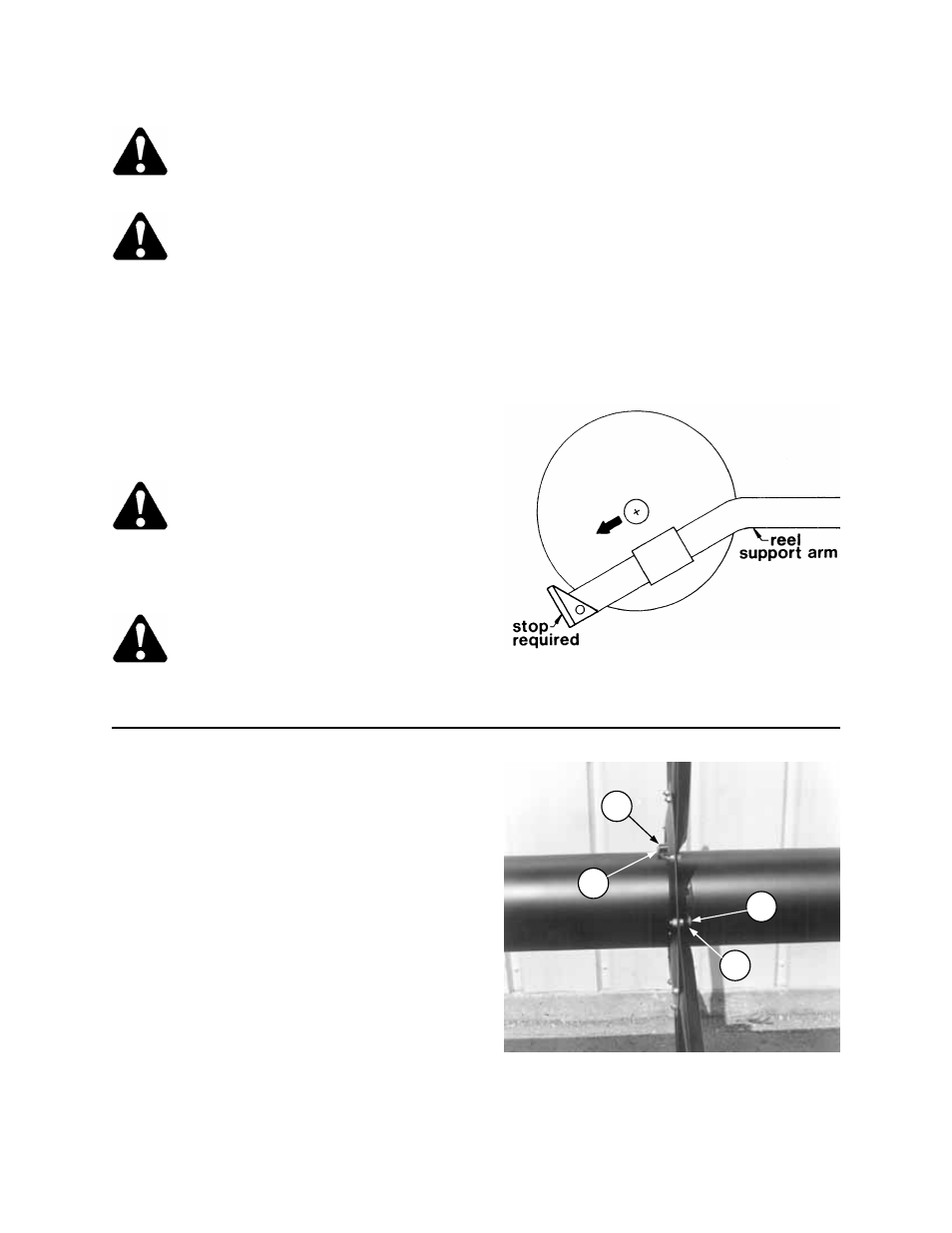

6. MOUNT REEL TO HEADER SUPPORT ARMS.
NOTE: If header is not available, position new
stands at left and right mounts and clamp reel
securely. Remove supports under reel center
tube.
See insert sheet supplied with mounting
package for mounting instructions.
WARNING: The reel weighs between
400 lbs. (15') and 800 lbs. (30') and
must be adequately supported. When
positioning, be sure a stop is in place to
prevent the reel from sliding off the reel
support arms.
WARNING: The reel drive must be
properly shielded. Install and
maintain all recommended shields
and safety signs.
7.
ATTACH REMAINING REEL ARM
ASSEMBLIES to center tube using 3/8 NC x 1-
1/2 long carriage bolts and flange locknuts as
follows:
Position arm assembly at the set of lugs where
it is to be installed.
Place the disc between the one offset lug (A)
and the other three lugs (B) and rotate to align
holes in disc with lugs on tube.
Install hardware finger tight only, with bolt
heads (C) against lugs.
MOUNT REEL SAFELY
ATTACH REEL ARM ASSEMBLIES
A
C
C
B
