22
MAINTENANCE

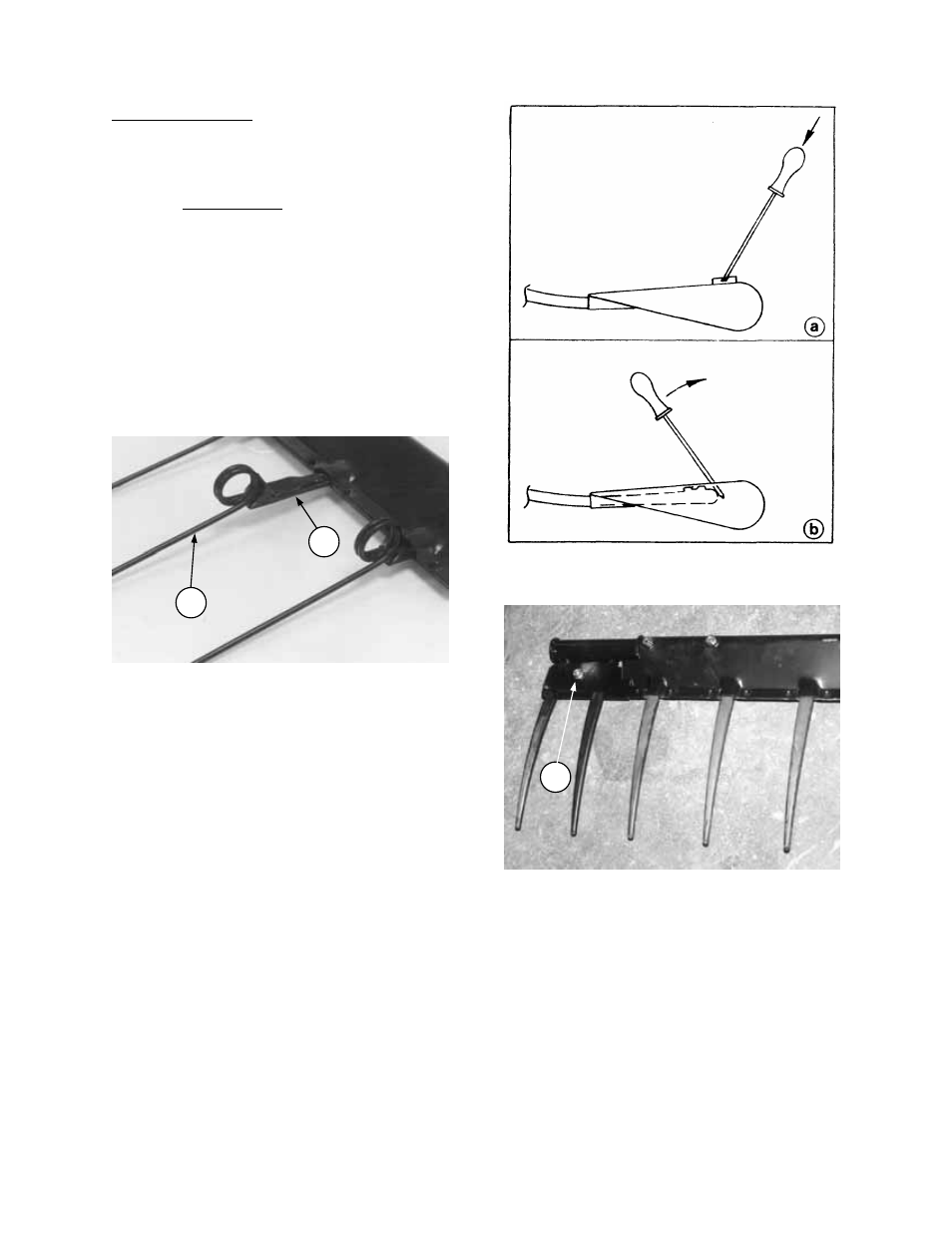

FINGER REMOVAL
a. Insert screwdriver in slot in finger button and tap
to push button into bat and down.
NOTE: For 36' Header: On end bats at center of
header, 5/16 flange nut (C) must be loosened to
allow finger removal.
b. Insert screwdriver into buttonhole in bat and pry
top of finger down until it can be removed from
pocket.
c. Use tool supplied to install new finger. For steel
fingers, pre-assemble finger (D) and clip (E)
and install.
FINGER REMOVAL
STEEL FINGER ASSEMBLY
E
D
LOOSEN BOLT TO REMOVE
END BAT FINGERS (36' ONLY)
C
