ASSEMBLY

CAUTION:To help prevent injury, use
protective shoes, a hard hat,
protective glasses or goggles, and
close fitting clothing.

CAUTION: Be careful when cutting
strapping and shipping wire. Release
of pressure can cause sudden

movement. Remove wire and strapping from
the assembly area.

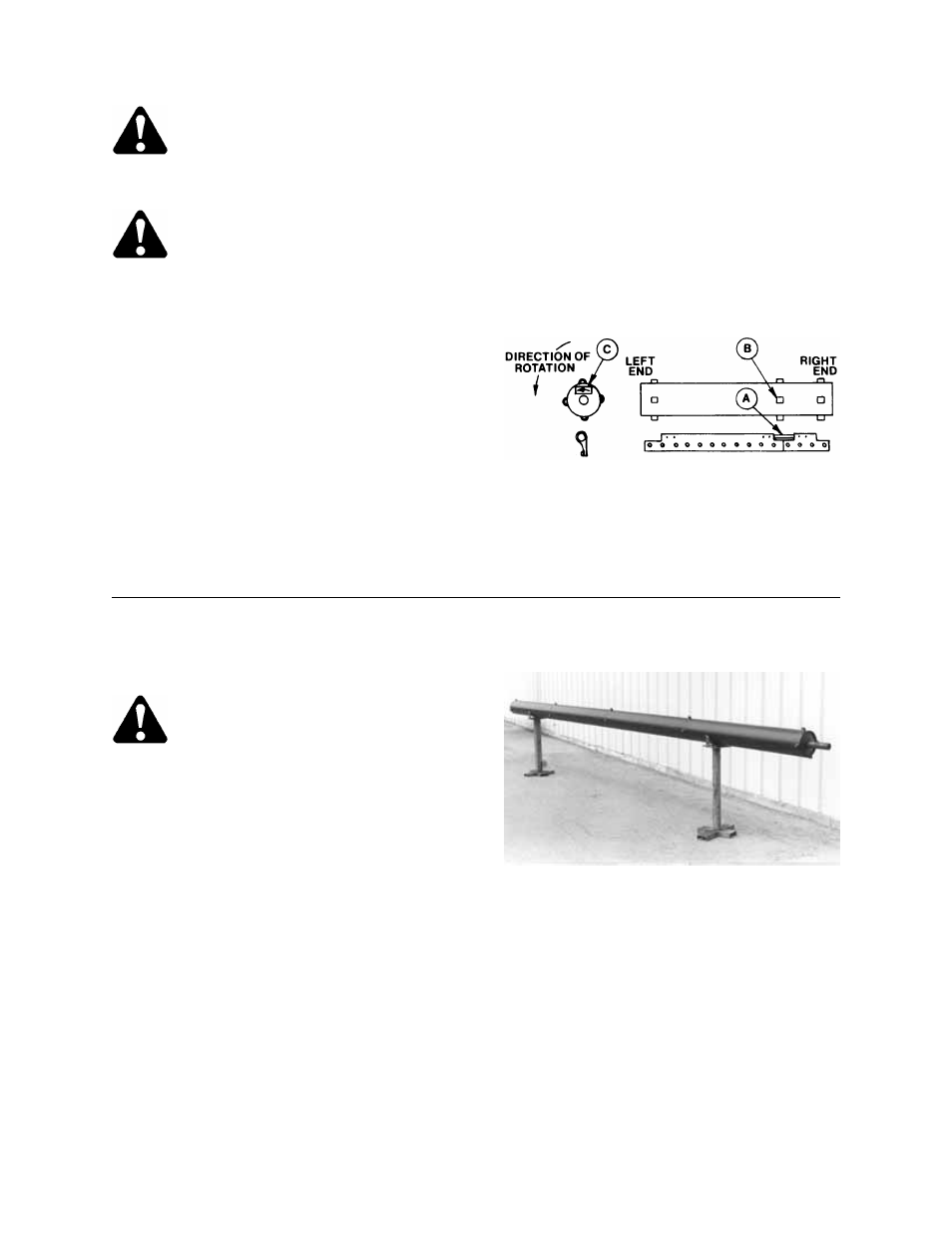

1. IDENTIFY LEFT/RIGHT END:

Lay bats down as they were strapped to
center tube. Do not turn end for end. Notches
(A) in bats should line up with lugs (B) on reel
center tube. Identify left and right ends of
center tube by the decal (C) at each end.

2. SUPPORT CENTER TUBE on suitable

stands.

WARNING: The completed reel
weighs between 400 lbs. (15') and
800 lbs. (30') and must be adequately
supported.

NOTE: Be sure reel is located where it can be
easily approached when mounting on header.

SUPPORT CENTER TUBE

IDENTIFY LEFT & RIGHT ENDS
