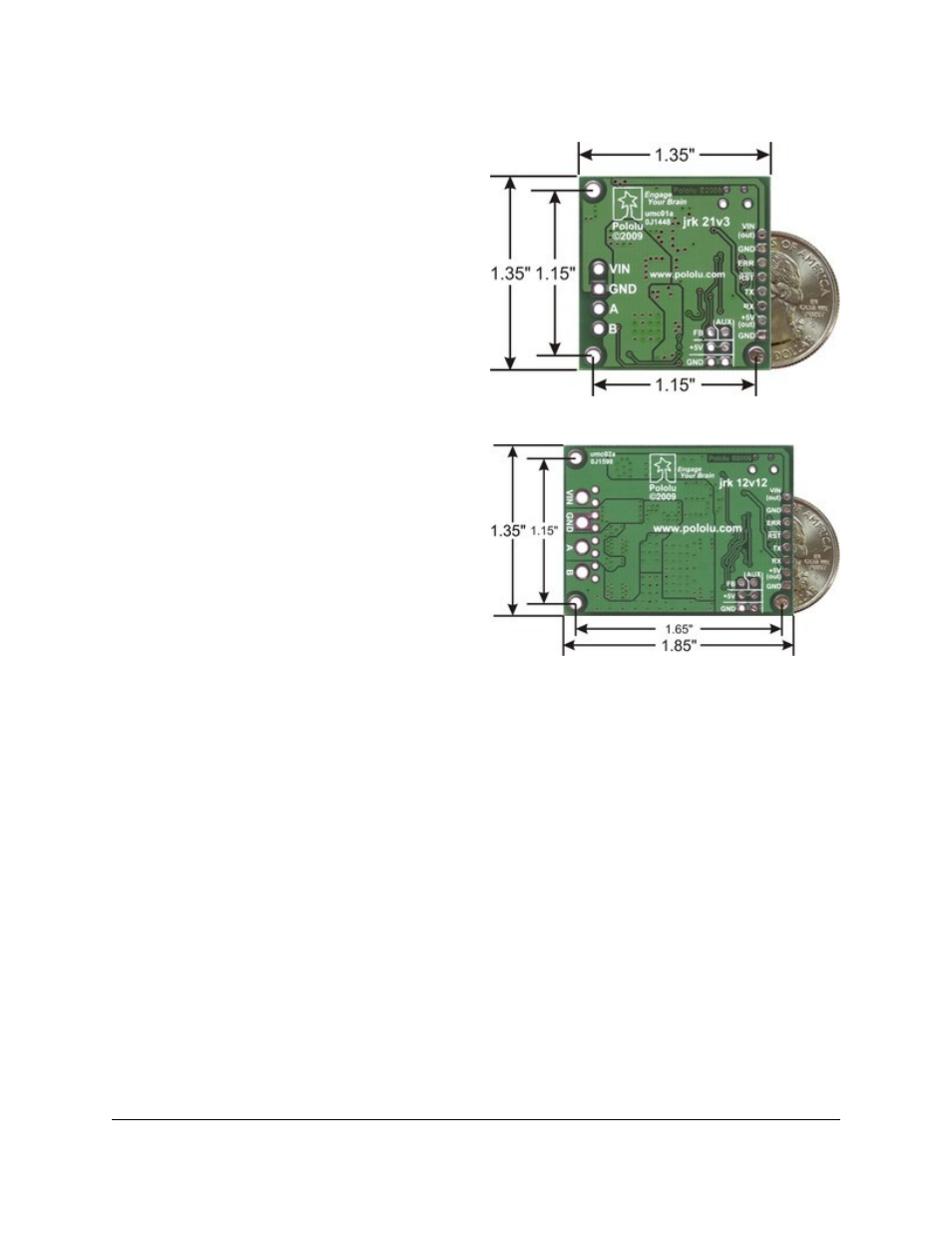

Pololu jrk 21v3 USB motor controller with
dimensions.
Bottom of the jrk 12v12 USB motor controller
with feedback with dimensions.
1. Overview
The jrk family of versatile, general-purpose motor
controllers supports a variety of interfaces, including USB.
Analog voltage and tachometer (frequency) feedback
options allow quick implementation of closed-loop servo
systems, and a free configuration utility (for Windows)
allows easy calibration and configuration through the USB
port.
There are two different jrk motor controllers:
The
has a broad
operating range from 5 V to 28 V. The continuous output
current of 3 A (5 A peak) allow this board to control most
small DC brushed motors.
The
has an
operating range from 6 V to 16 V. The high continuous
output current of 12 A (30 A peak) allow this board to
control many medium-sized DC brushed motors
Main Features of the Jrk 21v3
• 5 V to 28 V operating supply range.
• 3 A maximum continuous current output (5 A peak).
• Automatic motor driver shutdown on under-voltage,
over-current, and over-temperature conditions.
Main Features of the Jrk 12v12
• 6 V to 16 V operating supply range.
• 12 A maximum continuous current output (30 A
peak).
Main Features of all Jrk Motor Controllers
• Simple bidirectional control of one DC brush motor.
• Four communication or control options:
◦ USB interface for direct connection to a PC.
◦ Full-duplex, TTL-level asynchronous serial interface for direct connection to microcontrollers or other
embedded controllers.
◦ Hobby radio control (RC) pulse width (PWM) interface for direct connection to an RC receiver or RC
servo controller.
◦ 0–5 V analog voltage interface for direct connection to potentiometers and analog joysticks.
• Two closed-loop feedback options:
◦ 0–5 V analog voltage.
◦ Frequency/tachometer digital input up to 2 MHz with 1 ms PID period.
◦ (Open-loop control with no feedback also available.)
