Step twenty-eight, Step twenty-nine, Step thirty – Pavement Ends 51204 Replay User Manual
Page 8: Step thirty-one
51204 pg 8
0612 Rev. A
Pull both sliders
down as far as pos-
sible to catch pin
Start
Zipper
Step Twenty-eight
I
NSTALL
T
AILGATE
B
AR
ON
V
EHICLE

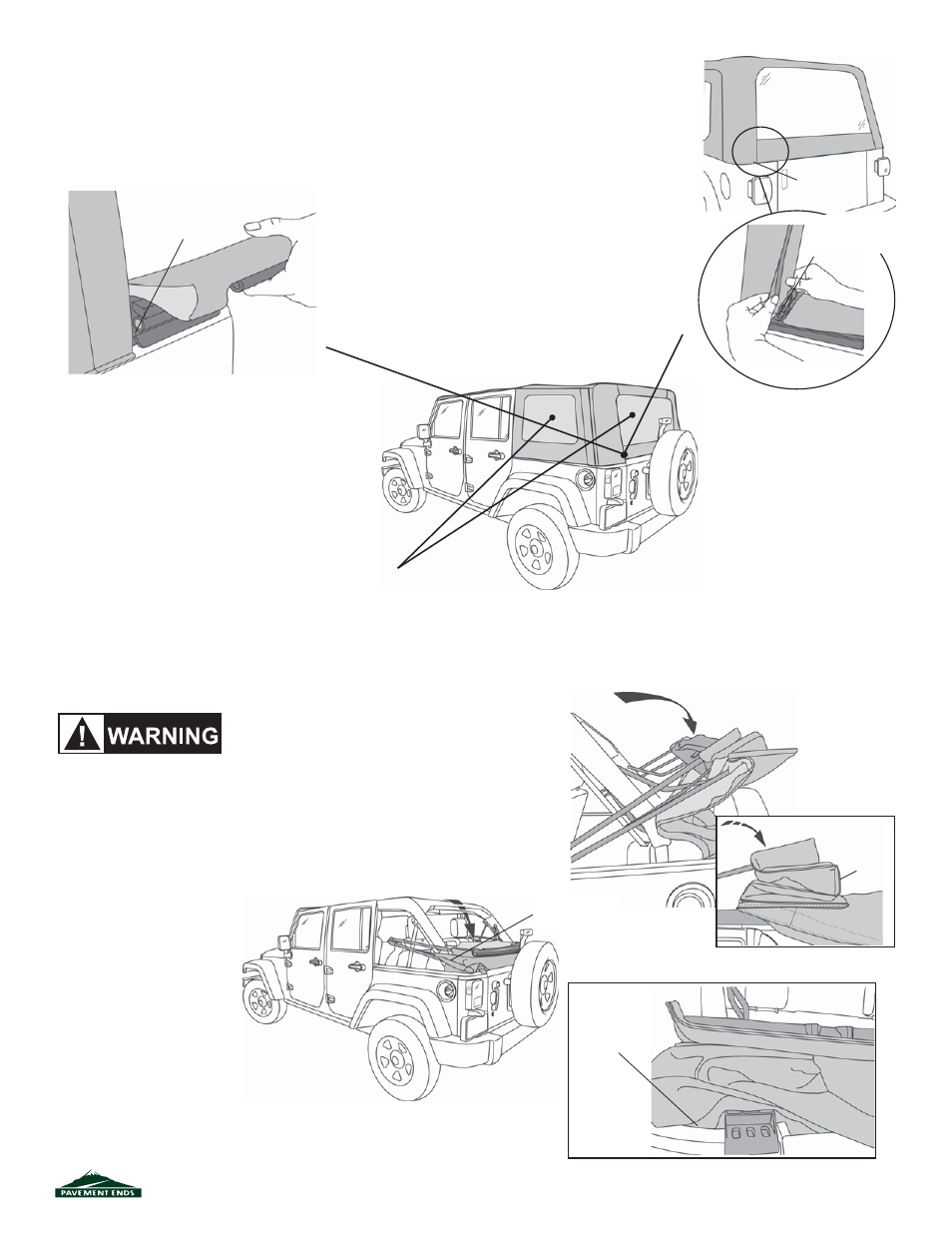

Insert the Tailgate Bar into the mounts on
each side of the tailgate opening with the
vinyl side of the Rear Window toward the
outside of the vehicle.
Place Tailgate
Bar in mounts
Step Twenty-nine
S
ECURE
R
EAR
W
INDOW
Z
IPPERS
To start the zipper, pull the two sliders as far
down as possible on the driver’s side of the
window in order to catch the sliders to the
pin.
Once the zipper is caught, start the top slider
1/2". Then hold up the top of the window
with one hand and close the zipper with the
other. The zipper is sandwiched between lay-
ers of fabric in the corners so be careful not
to catch extra fabric in the zipper. Close the
zipper.
Make sure that the Tailgate Bar is centered
and is securely in the mounts.
When operating the
vehicle without the
Quarter Windows, the
Rear Window should be rolled up and secured with
the elastic garters for proper ventilation.
Step Thirty
T
O
F
OLD
THE
T
OP
D
OWN
R
EMOVE
Q
UARTER
P
ANELS
AND
R
EAR
W
INDOW
Remove the Quarter Panels and the Rear Window.
To remove the Quarter Windows, unzip the rear
and top zippers. Release the plastic strip from the
retainer. Release the Hook and Loop Fasteners
from around the Vertical Retainer.
To roll up the Rear Window, remove the Tailgate
Bar and open the zippers on each side of the
window to the top. Start at the bottom and roll the
window to the inside. Avoid wrinkles in the fabric
and window. Secure it in place with the elastic
garters inside of the top.
Step Thirty-one
T
O
F
OLD
THE
T
OP
D
OWN
C
OLLAPSE
T
OP
Release the front of the top from the
windshield. Raise the front of the deck and
collapse the rear bows, tucking the stay pad
and fabric inside of the bows, Wrap the fabric
around the bows, then tuck the rear legs of
the top under the bows.
Tuck fabric and
stay pad inside
bows
Collapse bows and
fold toward rear
Top
Fabric
Tuck fabric
inside vehicle
