Pavement Ends 51204 Replay - Manual (Page 4)

51204 pg 4 0612 Rev. A

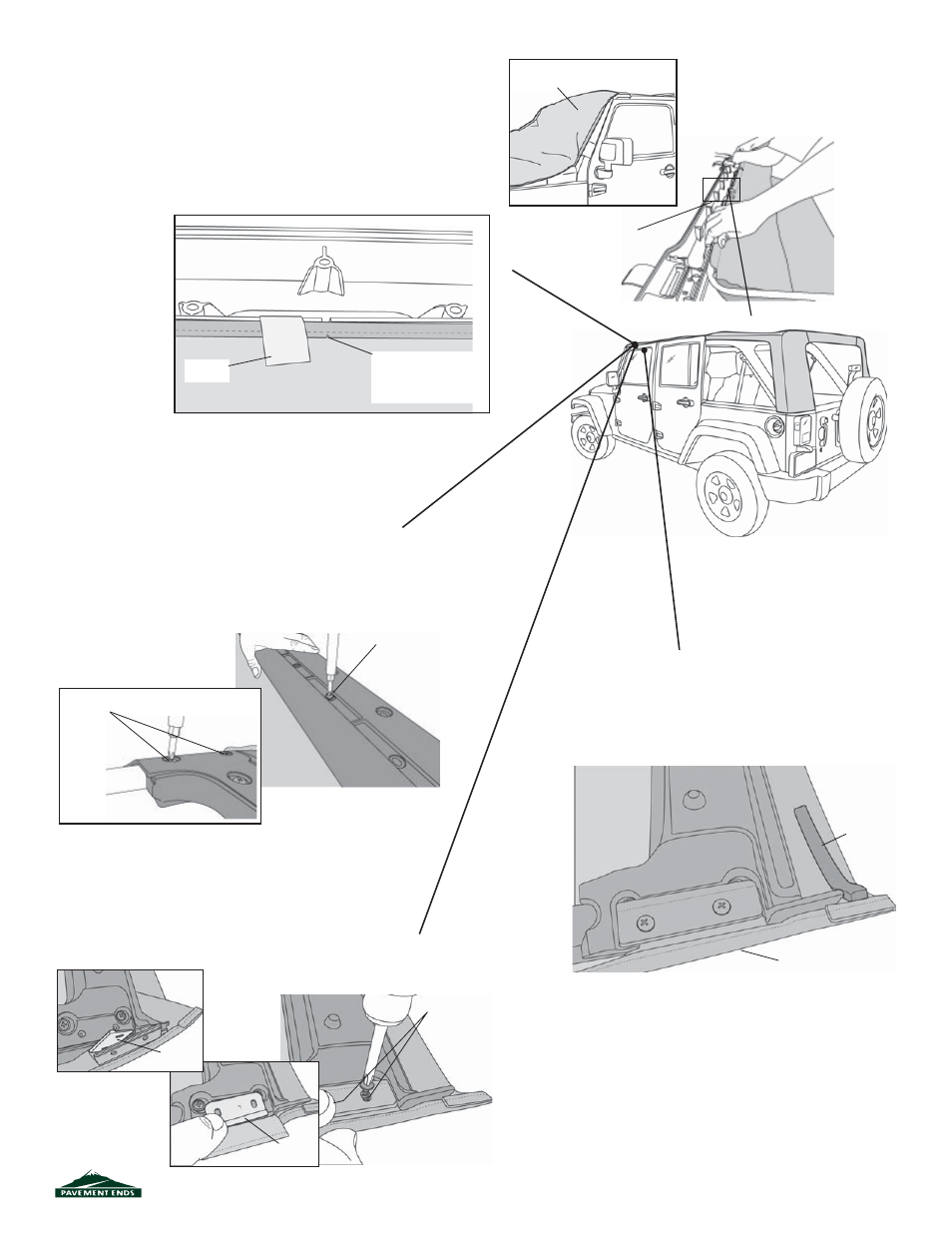

Step Ten
I
NSTALL
T
OP
F
ABRIC
Close the upper header over the fabric, sandwiching
the fabric. Reinstall the four (4) corner screws.
Then install the twenty-three (23) screws across the
header.
Lower the bow assembly to the rear of the vehicle.
Step Eleven
I
NSTALL
C
ORNER
S
CREWS
Slip the fabric pocket sewn into the top between the
headers and position the cable anchor.
Install two (2) T-15 Torx Screws through the fabric and
metal fl ag into the Lower Header on each side.
Step Twelve
I
NSTALL
F
ABRIC
F
OAM
Peel the backing off the Fabric Foam and install
it on each side of the Header.
Step Nine
I
NSTALL
T
OP
F
ABRIC
Raise the bow assembly and lock the header to the windshield.
Drape the top fabric, backing side up, over the hood and
windshield. Install the extrusion along the front edge of the top
into the channel in the lower header. Line up the center notch
in the fabric with the center notch in the header. Use masking
tape to help hold the fabric in place along the lower header.
Install Screws
Across Header
Top Fabric - Backing
Side Up
Slide Extrusion along
the Front Edge of the
Channel
Line up the Center
Notch in the Fabric
with the Center Notch
in the Header
Masking
Tape
Reinstall Torx
Screws
Cable
Anchor
Reinstall Corner
Screws
Cable
Anchor
Header
Fabric
Foam
