Cable Spring
Bracket
Step Seventeen
S
ECURE
C
ABLE
S
PRING

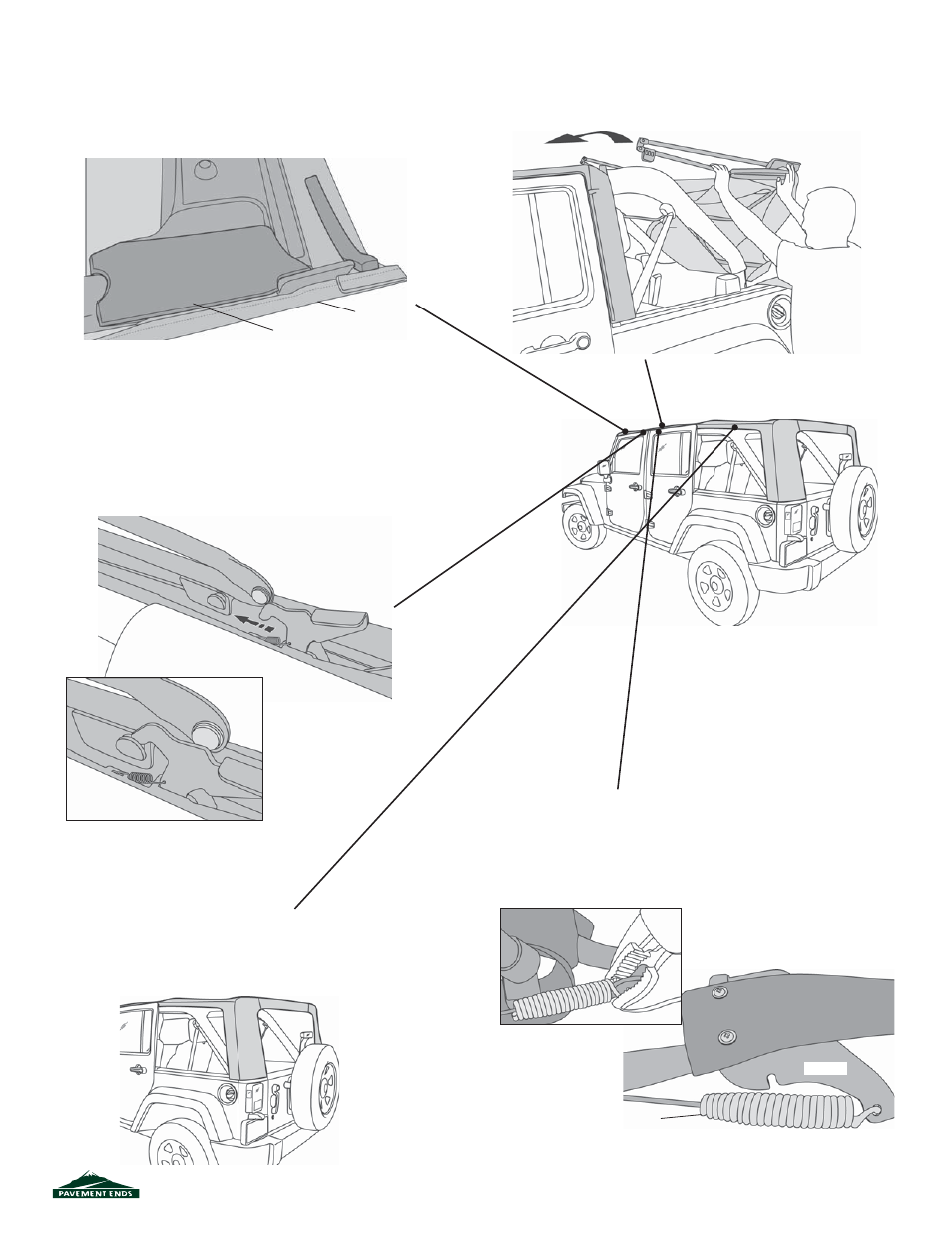

Lift the Header to reduce Side Cable tension. Hook the
Cable Spring to the bracket on the bow and use pliers
to crimp the spring.
Step Thirteen
I
NSTALL
H
EADER
F
OAM
Peel the backing off the Driver’s Side Header Foam
and install it on the driver’s side of the Header.
Repeat on the passenger side.
Step Fourteen
D
RAPE
T
OP OVER
C
AB
Open the top and drape the fabric over the
cab.
Header
Header Foam
Driver’s Side Shown
Step Fifteen
S
ECURE
B
OW
A
SSEMBLY
Slide the Pivot Assembly on the Top along the track
above the door until it latches into place.
Sport Bar
Passenger Side Shown
Step Sixteen
P
ULL
F
ABRIC
O
VER
B
OWS
Pull the fabric up over the bow assembly.
Sport Bar
