Step twenty-fi ve, Step twenty-three, Step twenty-four – Pavement Ends 51204 Replay User Manual
Page 7: Step twenty-six, Step twenty-seven
51204 pg 7
0612 Rev. A

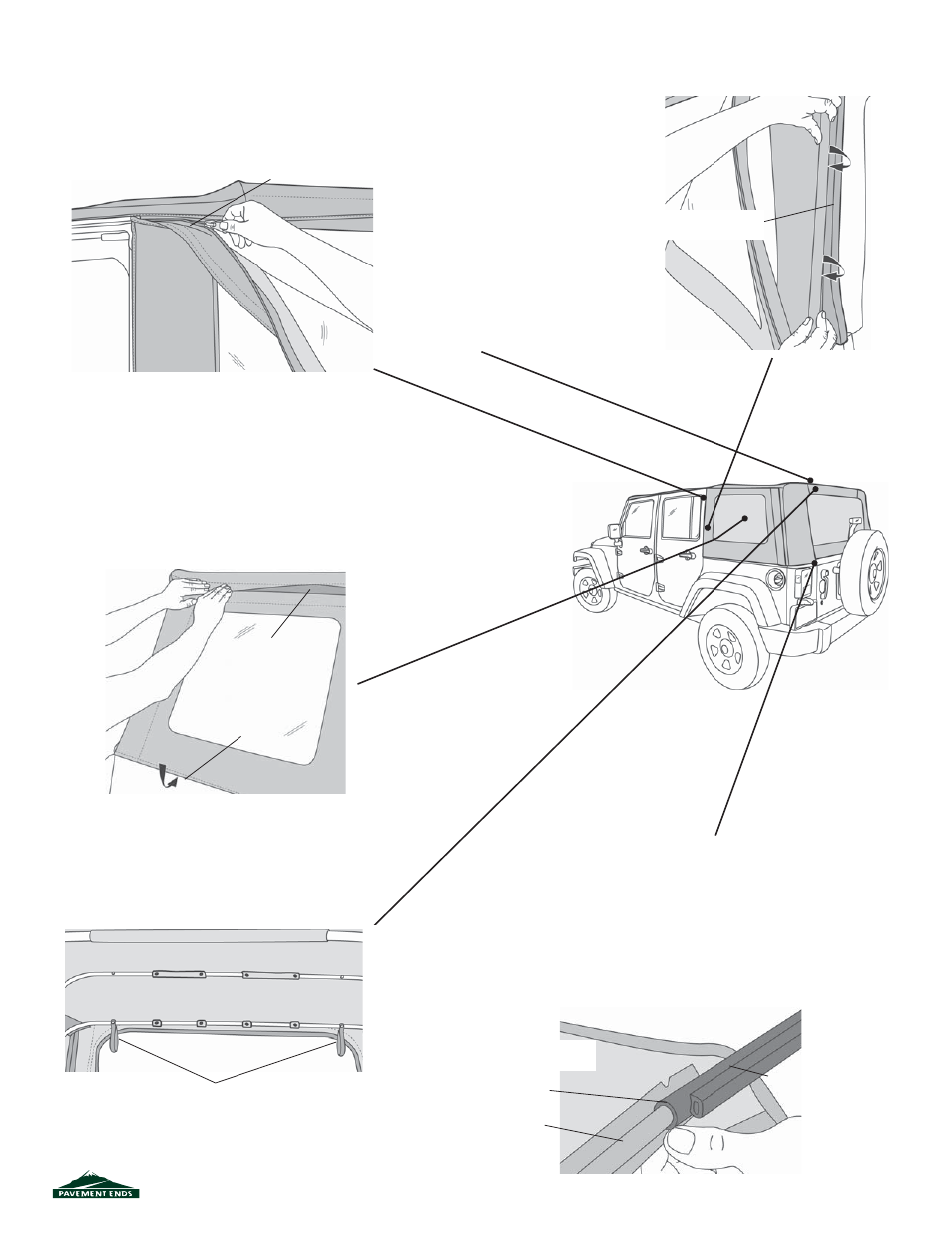

Step Twenty-fi ve
S
ECURE
Q
UARTER
W
INDOW
Close the zipper and slip the plastic along the bottom of
the Side Window into the channel on the vehicle.
Fasten the hook and loop strip above the window to the
top.
Step Twenty-three
A
TTACH
Q
UARTER
W
INDOW
Z
IPPERS
Start the zipper on the Quarter Window and
close it 1-2 inches.
Step Twenty-four
S
ECURE
F
RONT
OF
Q
UARTER
W
INDOW
Roll the plastic strip along the front
of the Quarter Window into the
channel in the Door Surround.
Roll Plastic into
Channel
Fasten Hook
and Loop
Start Zipper on
Quarter Window
Roll Plastic Strip into
channel in retainer
Step Twenty-six
I
NSTALL
E
LASTIC
G
ARTERS
Snap the Elastic Garters to the snaps on the
Rear Bow above the rear window opening.
Snap Elastic Garters
to Rear Bow
Rear Window -
Backing Side
Tailgate Bar
Tailgate
Retainer
Channel
Tubed
Strip
Step Twenty-seven
I
NSTALL
T
AILGATE
B
AR
ON
R
EAR
W
INDOW
Remove the Rear Window from the box and lay it fl at with the
backing side up. Locate the Tailgate Bar set aside in Step One.
The bar has a “C” shaped channel, when viewed from the
end. Orient the bar with the round seal down and slide the “C”
channel on the retainer onto the tubed strip sewn to the backing
side of the Rear Window.
