51204 pg 6 0612 Rev. A
Step Twenty-two
S
ECURE
R
EAR
C
ORNERS
Pull down on the Rear Bow and work the
plastic sewn to the rear corners of the top
into the retainer on the vehicle.
Step Eighteen
S
ECURE
H
EADER TO
W
INDSHIELD

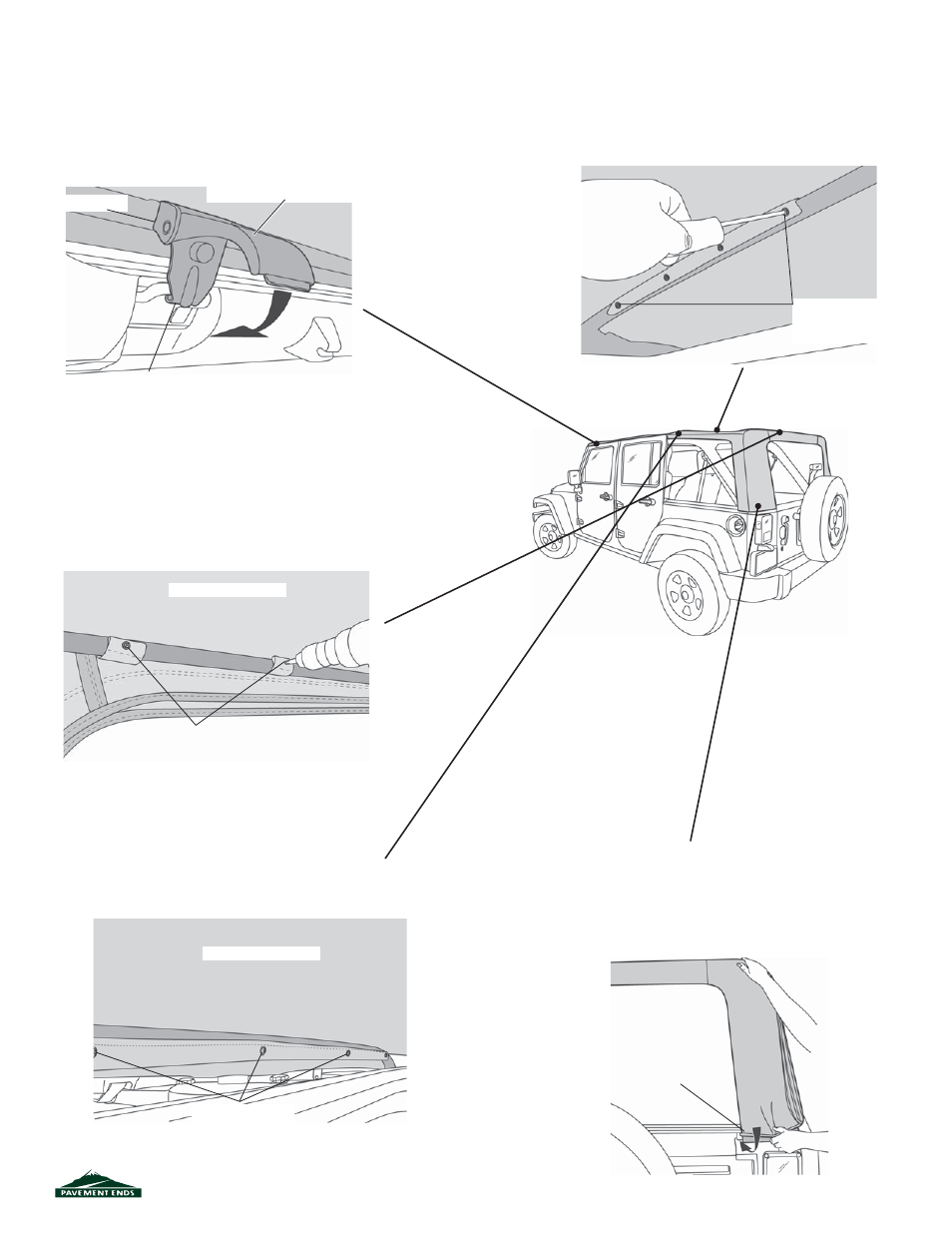

Close the header latches to secure the front of the
top to the windshield. Catch the hook in the loop in
the windshield frame and then close the lever over
it so that it lays fl at against the windshield frame.
Windshield
Frame
Windshield
Header Latch
Close lever over top of hook to
lay fl ush with windshield frame
Catch hook
in loop
Step Twenty
A
TTACH
T
OP TO
R
EAR
B
OW
Locate the fl aps inside the top above the rear
window opening. Use the four (4) screws that were
removed in Step 4 to secure the fl aps to the Rear
Bow.
Reinstall screws to
secure fl aps to the
Rear Bow
View from inside vehicle
Rear Window
Opening
Step Twenty-one
S
ECURE
C
ENTER
B
OW
Reinstall the screws removed in Step 5 to secure
the fabric to the Center Bow.
View from inside vehicle
Reinstall screws to
secure the fabric to
the Center Bow
Step Nineteen
S
ECURE
#3 B
OW
Reinstall the four (4) screws that attach the
fl ap in the top to the Center Bow.
Reinstall the screws
to secure the fabric
from the Center
Bow
Roll Plastic into
Retainer Channel
