44523 pg 8

Rev. D 0210

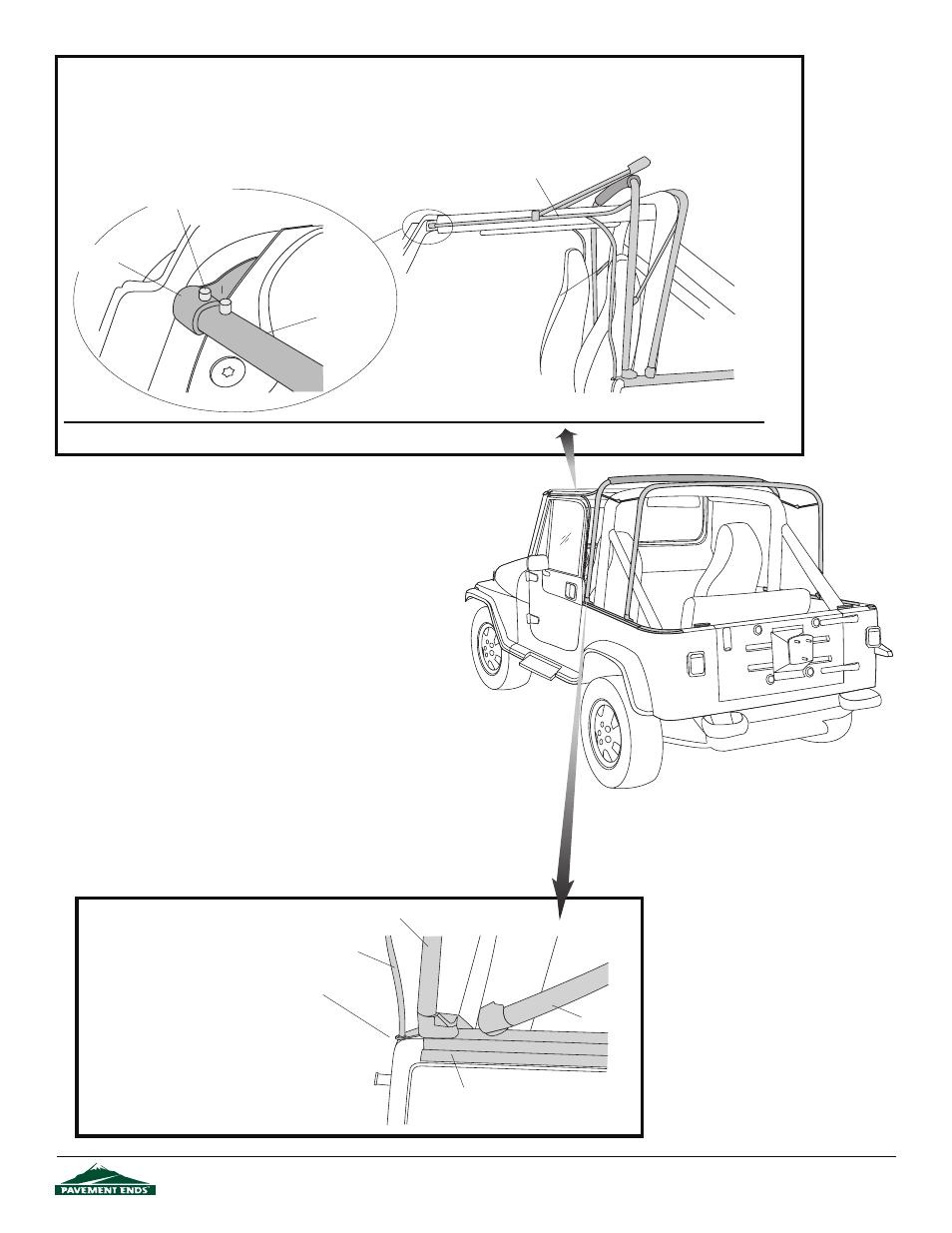

Horizontal Rod

Windshield

Bracket

Slide rod into bracket

until pin pops up

Horizontal Rod

Vertical Rod

Step Seven

I

NSTALL

H

ORIZONTAL

R

OD

Slip the end of the Horizontal Rod into the tube on the Windshield Bracket until the spring button on the rod pops up through

the hole in the Windshield Bracket.

Step Eight

I

NSTALL

V

ERTICAL

R

OD

Place the bottom of the Vertical

Rod into the hole at the front of

the Side Belt Rail. Bolt the rod

to the Horizontal Rod on the

Bow Assembly with the Screw

and Nut attached to the

Horizontal Rod.

Side Belt Rail

Vertical Rod

Place Vertical Rod

into hole

Front Bow

Rear Bow

Note: The pin must pop up through the hole in the Windshield Bracket for proper fit.
