44523 pg 6 Rev. D 0210
Caution
Step Four
I
NSTALL THE
C
ORNER
B
ELT
R
AILS

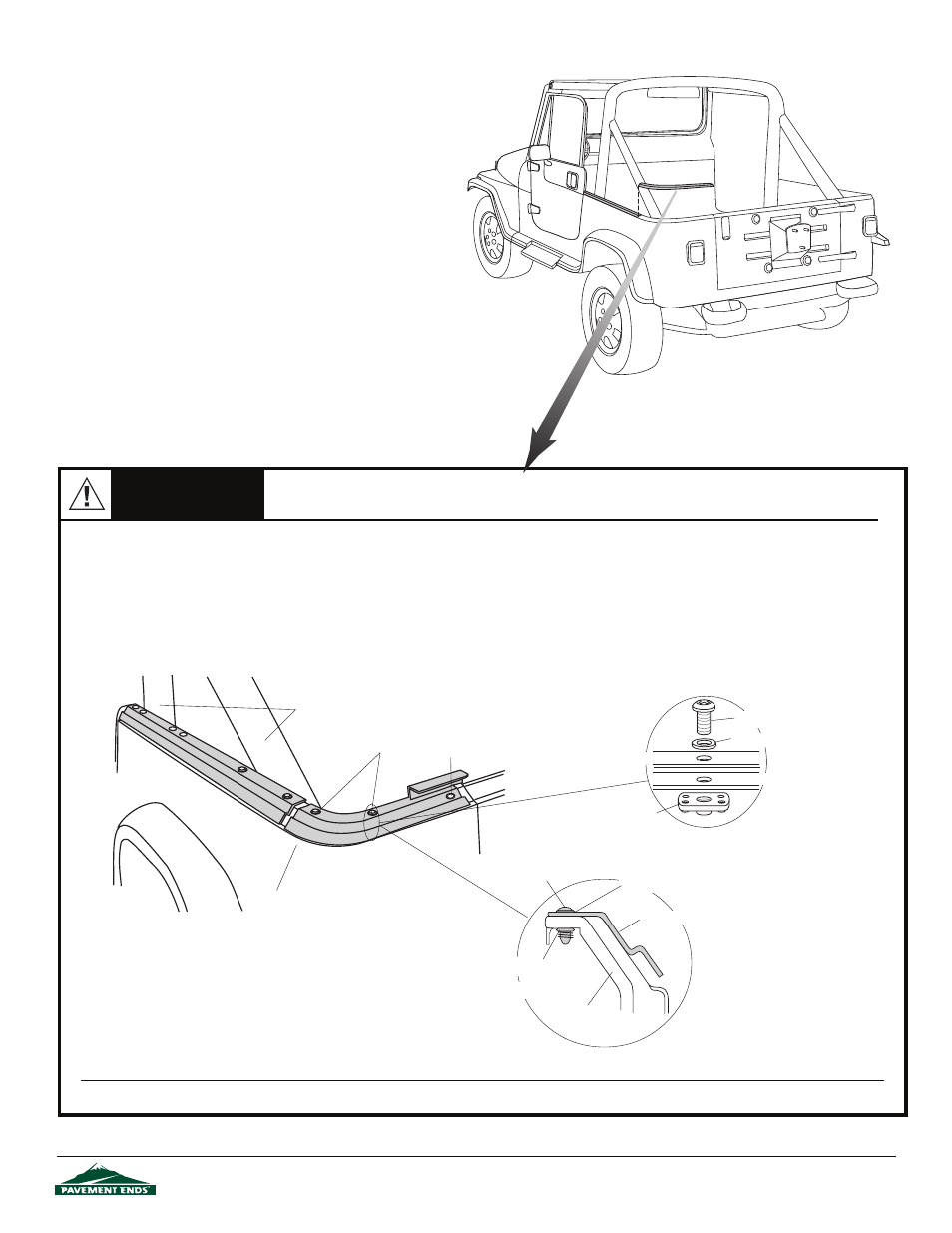

Install the Left and Right Rear Corner Belt Rails on each side of the vehicle. Notice that the Corner Belt Rails do not butt-up against the side belt
Rails installed in Step 3, this is normal. Use the Corner Belt Rails as templates to mark, center punch and drill two 3/8" holes on the top edge of
the vehicle body. Some vehicles may already have some of these holes. Install the Corner Belt Rails with two 5/16" Phillips Head Bolts, two 5/16”
Washers and two 5/16" Tapping Plates. At the location of the remaining hole in the Corner Belt Rail, next to the tailgate, mark, center punch and
drill a 1/8" hole. Install a #8 x 1/2" Pan Head Screw. Do not tighten the bolts yet.
When drilling in the top edge of the vehicle body, check underneath for wiring for the rear lights. Pull the
wiring out of the way before drilling.
Note: There may be a small gap of +/- 1/4" between the Corner Belt Rails and the Side Belt Rails.
Rear Corner
Belt Rail
Front
Sport Bars
5/16" Phillips
Head Bolts
#8 x 1/2" Pan
Head Screw
Rear Corner
Belt Rail
Tapping Plate
Inside of Vehicle
Body Panel
5/16" Washer
Rear Corner Belt Rail Detail
Cross Section
5/16" Phillips
Head Bolt
Tapping Plate
Detail
Corner Belt
Rail
5/16" Phillips Head Bolt
5/16" Washer
Vehicle Body
Tapping Plate
