Pavement Ends 44523 Flip Top - Manual (Page 7)

Rev. D 0210 44523 pg 7
Step Five
A
SSMEBLE
B
OW
A
SSEMBLY

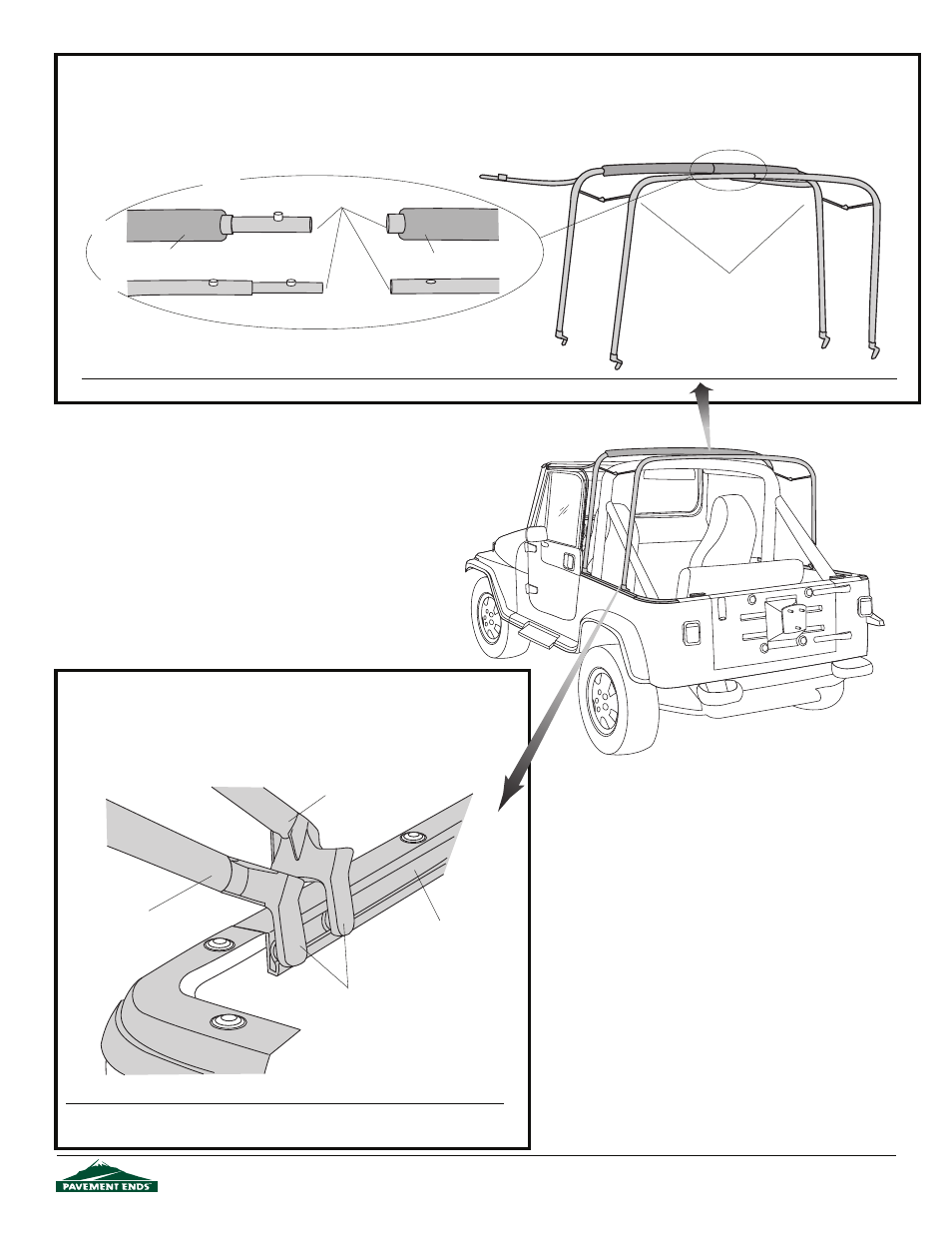

Assemble the two halves of the support bow. Orient the two pieces to each other and lay them on the floor. Slide the pieces together, pushing
down on the buttons. Once the two halves are together install a Snap Head Screw in the hole formed in the center, front of each bow. This will
require a #20 TORX socket.
Front Bow
Rear Bow
Foam
Foam
Slide Bow Halves
Together
Push buttons in
Slide halves together to form
Support Bow Assembly
Note: It may be helpful to use a flat screwdriver to push buttons down while sliding bow halves together.
Slide Bow Ends
into Track
Front Bow
Rear Bow
Inside of Vehicle
Side Belt Rail
Note: It may be helpful to have two people to slide both sides of the bow
assembly forward at the same time.
Step Six
I
NSTALL
B
OW
A
SSEMBLY
Slide the ends of the front and rear bows into the tracks in the Side Belt Rails
on each side of the vehicle. Start from the rear of the vehicle and slide the bow
assembly toward the front.
