Minotaur IV • V • VI User’s Guide Section 1.0 - Introduction
1.1. Minotaur Family Performance and Capability
Figure 1.1-1 shows the Minotaur family of launch vehicles, which is capable of launching a wide range of
payload sizes and missions. Representative space launch performance across the Minotaur fleet is
shown in Figure 1.1-2 and illustrates the relative capability of each configuration. In addition to space
launch capabilities, the Minotaur I Lite and Minotaur IV Lite configurations are available to meet suborbital
payload needs for payloads weighing up to 3000 kg. This User’s Guide covers the Peacekeeper-based
Minotaur IV family. Please refer to the Minotaur I User’s Guide for information regarding Minuteman-
based Minotaur vehicles.

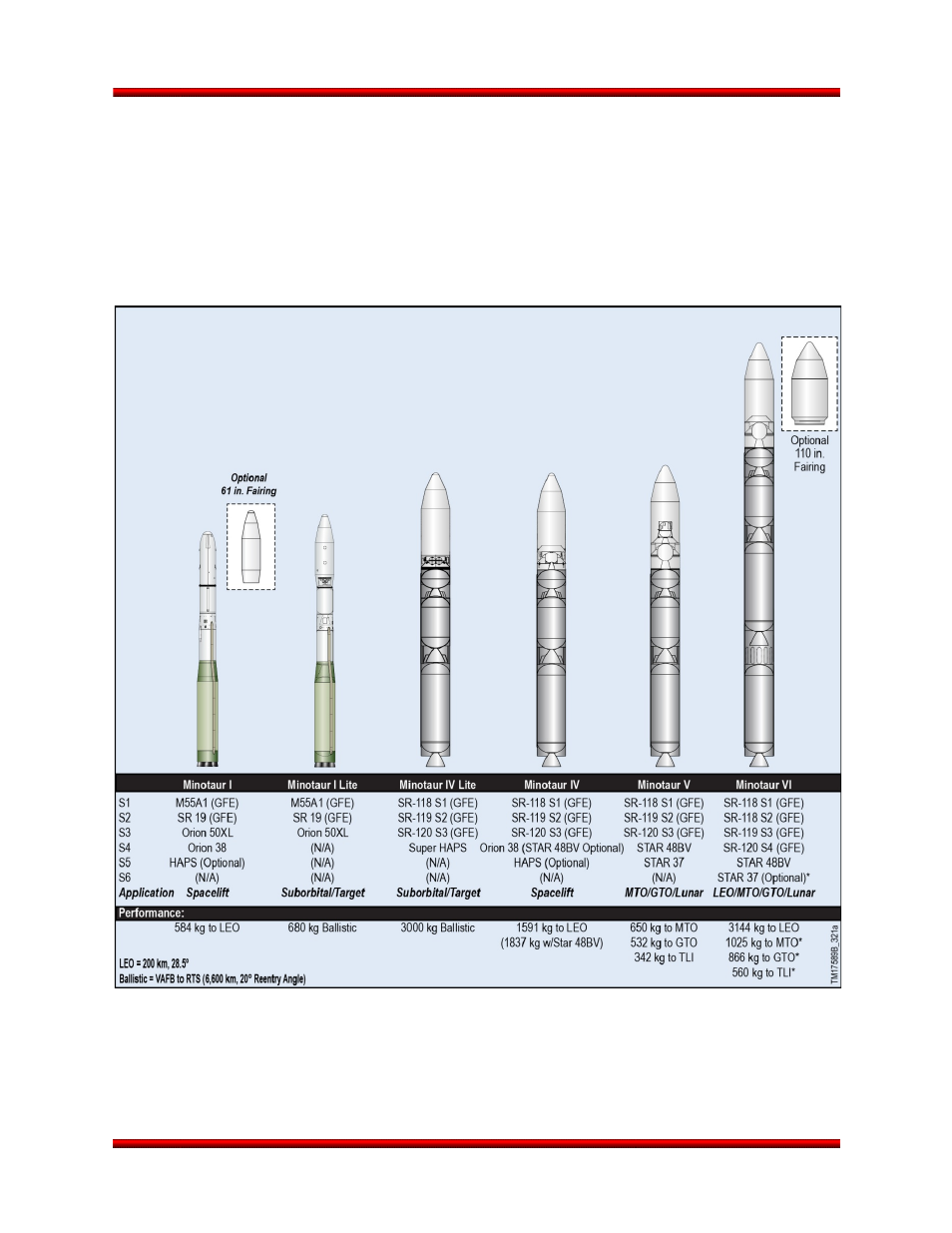

Figure 1.1-1. The Minotaur Family of Launch Vehicles
Release 2.0 June 2013 2
