PAGE 44 — LT12D50SA LIGHT TOWER • OPERATION MANUAL — REV. #0 (03/16/09)

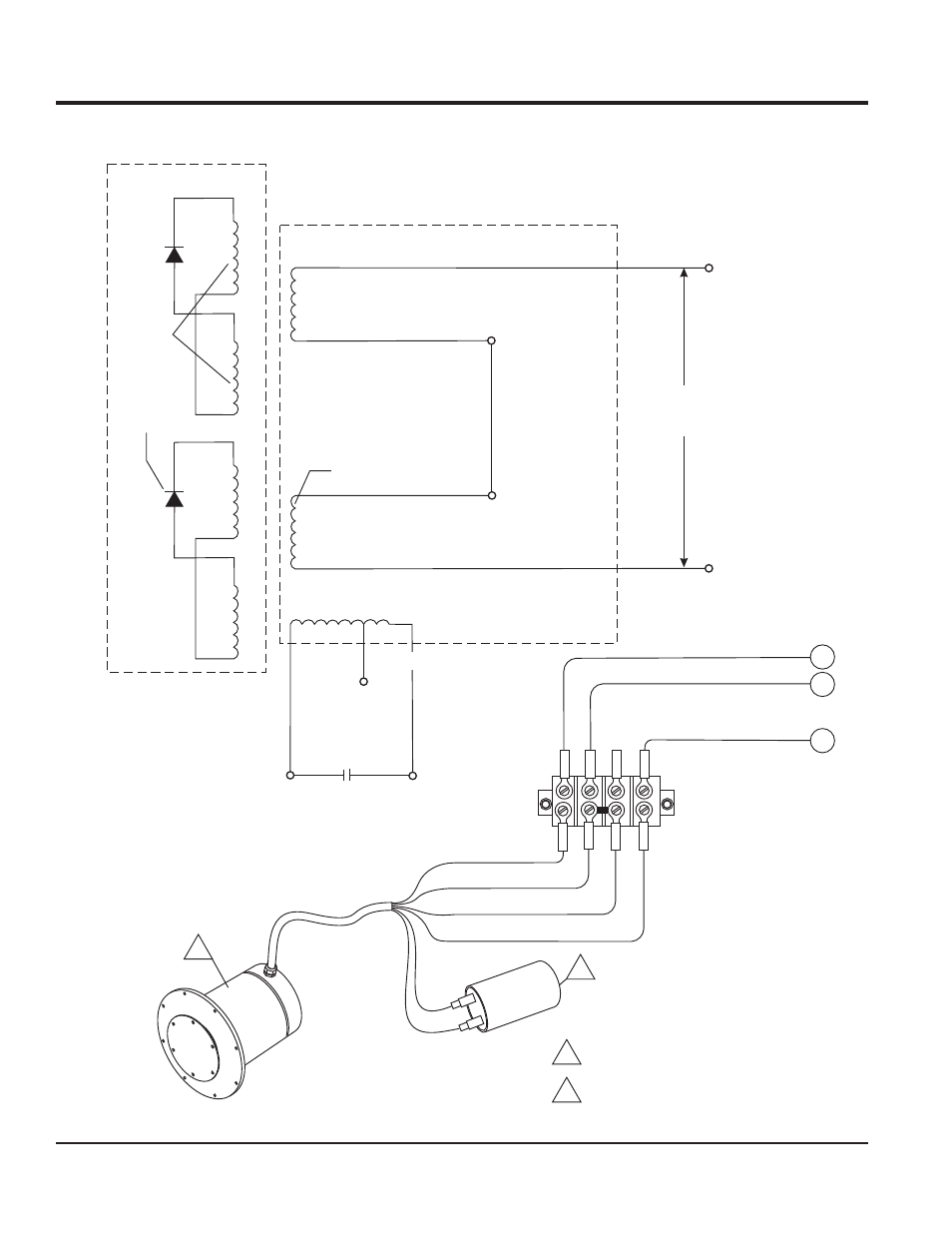

LT12D50SA WIRING DIAGRAM — S/N 902626 AND ABOVE
60 HZ
50 HZ
ROTOR
STATOR
EXCITATION
WINDING
C1
35µF@425V
EXCITATION
CAPACITOR
STATOR
WINDING
ROTOR
WINDINGS
FIXED FLOW
CURRENT
DIODE
BLACK 4
BLACK 3
BLACK 1
RED
BLK
BLK
BLK
BLK
BLK
RED
RED
44444 33333 22222 111111
TB1
C1
35µF@425V
EXCIT
ATION
CAP
ACIT
OR
4
3
1
GRN
WHT
A
NOTES
USE ONLY 50 Hz GENERATOR, P/N 49126.
A
B
B
,
USE ONLY 35µF@425 EXCITATION
CAPACITOR P/N GECAP35MF.
RED
BLACK 2
230 VAC
50 HZ
