PAGE 26 — LT12D50SA LIGHT TOWER • OPERATION MANUAL — REV. #0 (03/16/09)
OPERATION
Mast Operation

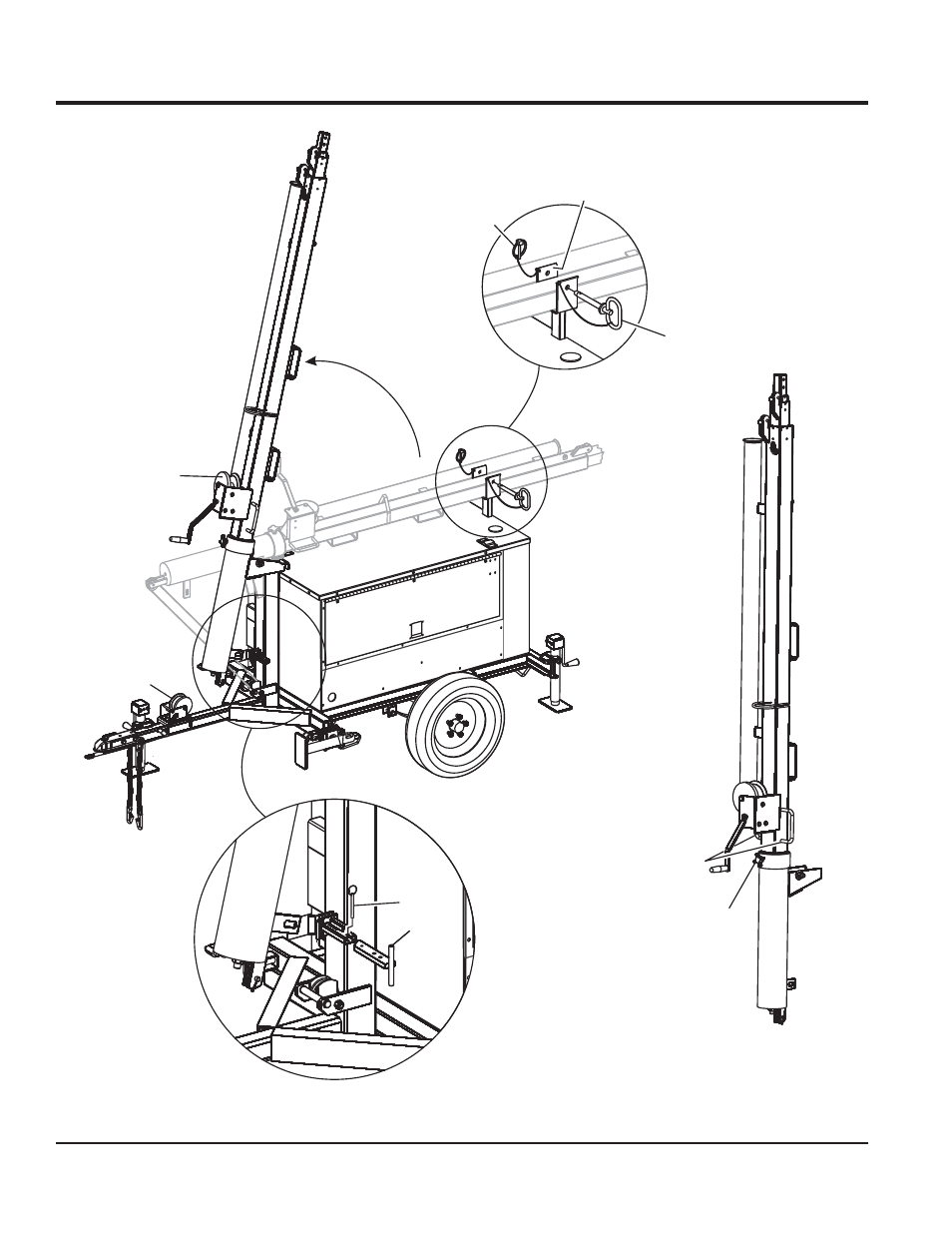

Figure 16.
MAST
CRADLE
SUPPORT
RETAINING
PIN
CRADLE
LOCK/
RELEASE
PIN
MAST
LOCK/
RELEASE
PIN
MAST
LOCK
HANDLE
VERTICAL
MAST
WINCH
MAST
ROTATION
LOCKING
KNOB
ROTATING THE MAST
MAST
ROTATION
HANDLES
MAST
EXTENSION
WINCH
