PAGE 18 — DCA20SPXU2D 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (03/25/11)
CONTROL PANEL
DECREASE INCREASE
EDIT RESET RUN OFF AUTO
ALARM
SILENCE
ALARM
SILENCE
LAMP
TEST LAMP
TEST NOT IN
AUTO
NOT IN
AUTO
ALARM
SUPPLYING
LOAD
SUPPLYING
LOAD
1 2 3
4
5

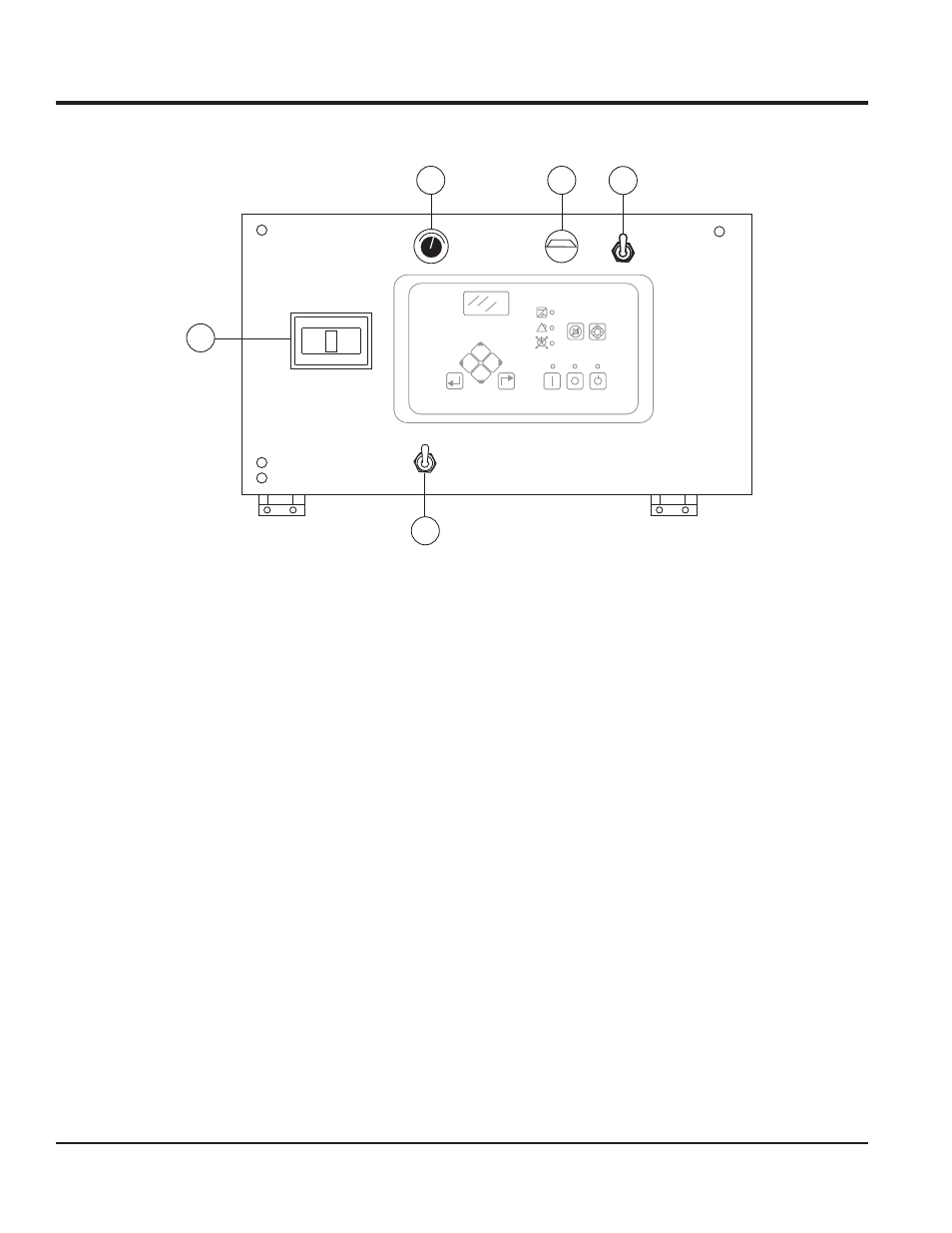

Figure 4. Control Panel
The defi nitions below describe the controls and functions
of the Control Panel (Figure 4).
1. Voltage Regulator Control — Allows ±15% manual
adjustment of the generator’s output voltage.
2. Panel Light — Normally used in dark areas or at night
time. When activated, panel lights will illuminate. When
the generator is not in use be sure to turn the panel light
switch to the OFF position.
3. Panel Light Switch — Place switch in the ON position
to activate generator. Place switch in OFF position when
generator is not in use.
4. Control Power Switch — Activates Digital Controller.
5. Main Circuit Breaker—This three-pole, 90A main
breaker is provided to protect the the U,O, and V output
terminal lugs from overload.
