Sp2S20h paVeMeNT SaW • operaTioN MaNual — reV. #1 (02/17/12) — page 17
DiMensiOns
D
A
B
C
E
F
G
H
UNLEADED GAS ONLY
23587

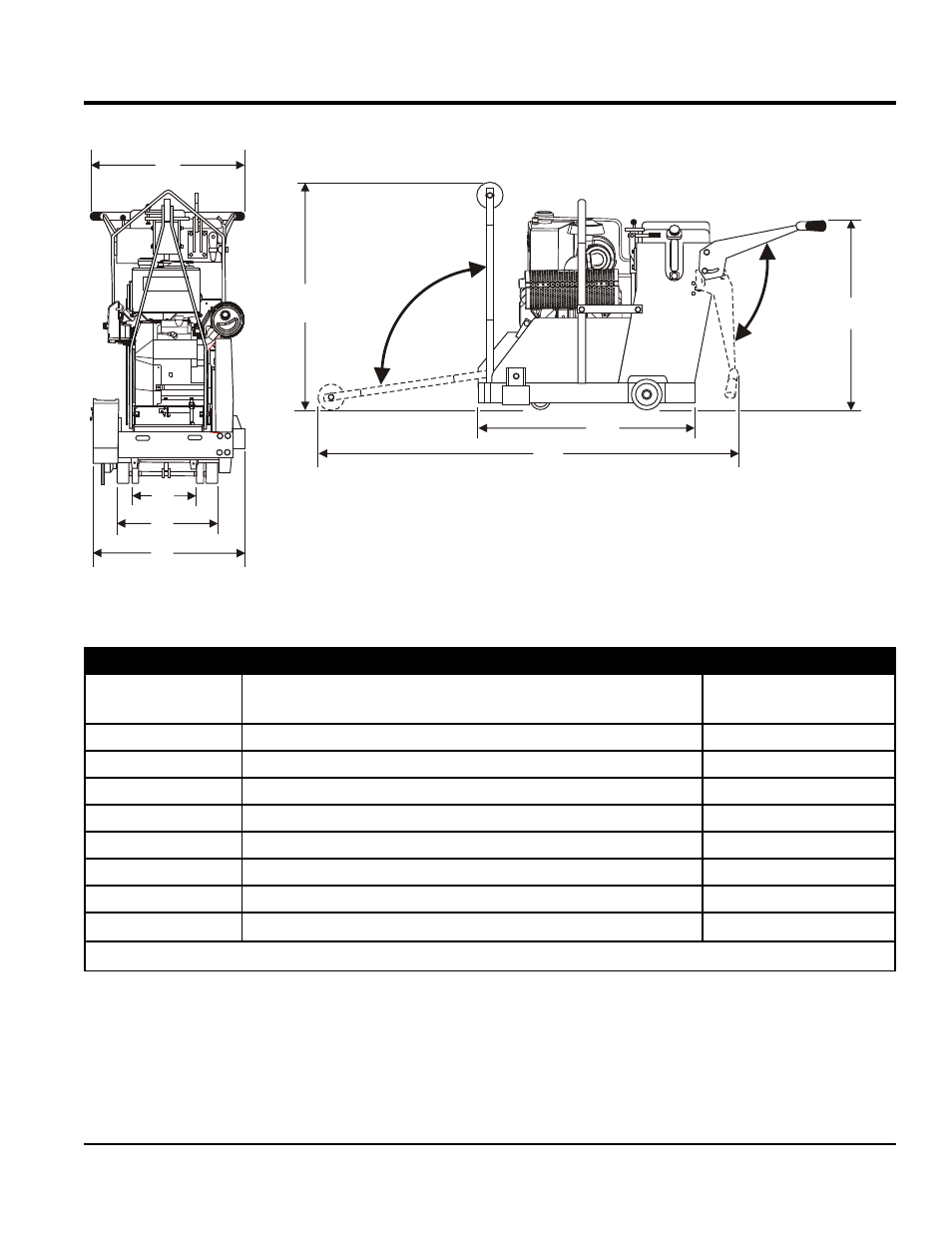

Figure 1. Dimensions
Table 3. Dimensions
reFereNCe
leTTer
DeSCripTioN
DiMeNSioNS
iN. (MM)
a Max Height (Handle Bars fully lowered & Front Pointer raised) 914 mm (36 in.)
B Max Handle Bar Height (fully raised) 1016 mm (40 in.)
C Max Length (Handle Bars & Front Pointer fully raised) 1092 mm (43 in.)
D Max Length (Handle Bars fully raised & Front Pointer lowered) 1727 mm (68 in.)
e Max Handle Bar Width 610 mm (24 in.)
F Max Width 622 mm (24.5 in.)
g Rear Wheel Base 406 mm (16 in.)
h Front Wheel Base 356 mm (14 in.)
Crated Dimension (l x W x h): 1194 x 762 x 1118 mm (47 x 30 x 44 in.)
