trOwel speCifiCatiOns/diMensiOns
Table 1. Trowel specifications
A–Width (Ring Diameter) – in. (mm) 36.5 (927) Sound Pressure (Guaranteed) – dBA 2 TBD
B–Length – in. (mm) 70.5 (1,790) Vibration (Hand/Arm) – ft/s 2 (m/s 2 ) 1 TBD
C–Height (Handle) – in. (mm) 37.5 (953) Electric Motor – H.P. 2.0 (1.5 kW)(
D–Height (Switch Box) – in. (mm) 36 (914) Rotor – RPM (Dry Concrete) 30-160
Number of Blades 4 Operating Weight – lbs. (kg.) 166 (75
Path Width – in. (mm) 34.5 (876) ?? Shipping Weight – lbs. (kg.) 191 (86)
Sound Pressure (Weighted) – dBA 2 TBD
1. Sound pressure is “A” weighted . Measured at the
operators ear position while the walk-behind trowel is
operating at full throttle on concrete in a manner most
often experienced in “normal ” circumstances. Sound
pressure may vary depending upon the condition of the
concrete. Hearing protection is always recommended.
2. The vibration level indicated is the maximum RMS
(Root Mean Square) value obtained at the handle
grip while operating the ride-on trowel on curing
concrete in a manner most often experienced in
“normal ” circumstances. Values were obtained from
all three axes of motion. The values shown represent
the maximum RMS value from these measurements.

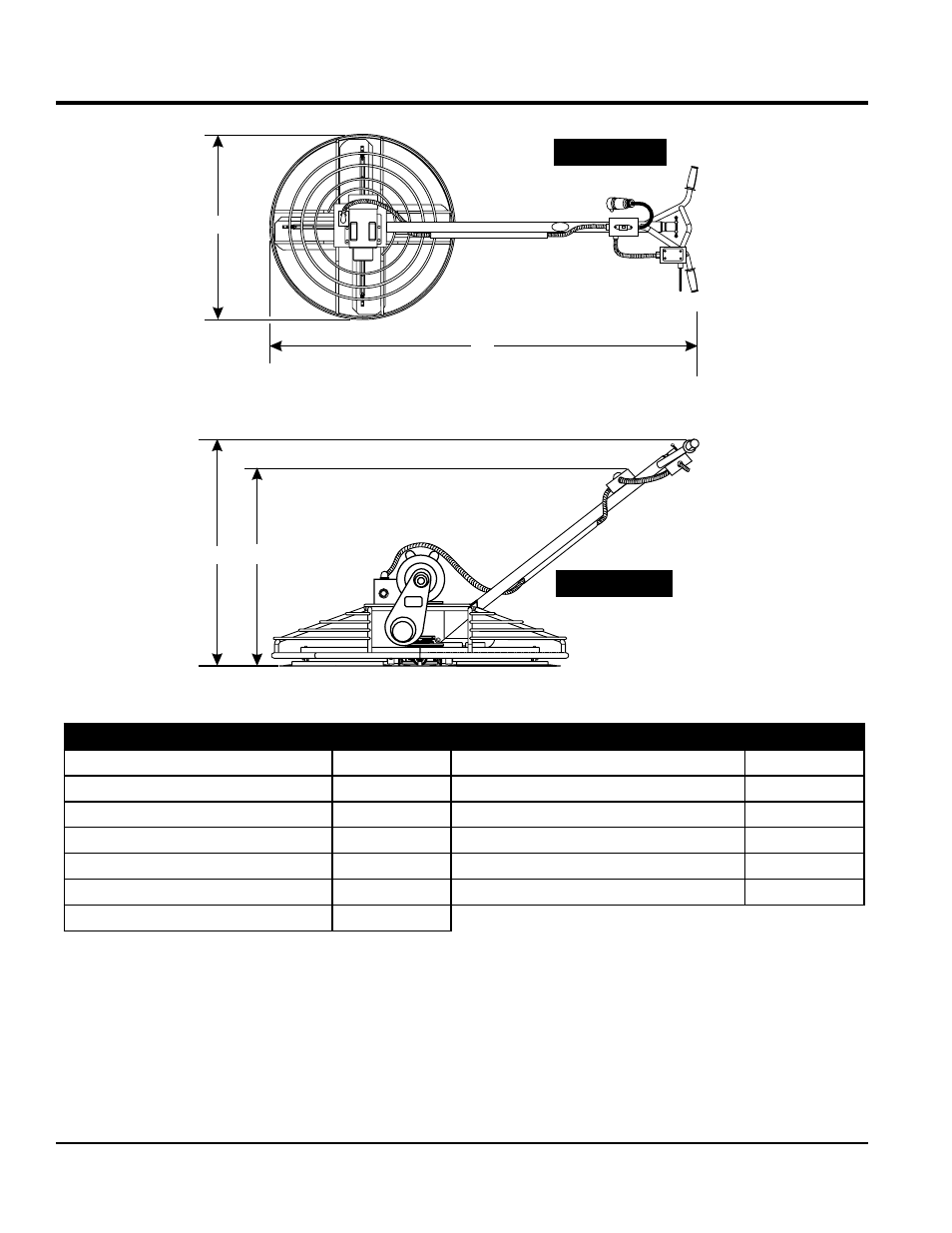

Figure 1. Dimensions
C
SIDE VIEW
A
B
TOP VIEW
C C D
