page 34 — HHN31VTCSL5 RIDe-ON TROWeL • OpeRaTION aND paRTS maNuaL — ReV. #8 (05/03/12)
RemOVINg THe DRIVe BeLT
1. Remove Drive Belt Cover. See Figure 16.
2. Disconnect the left-side CV Axle from the left-side gearbox
and the lower drive pulley coupler. See Figure 28.

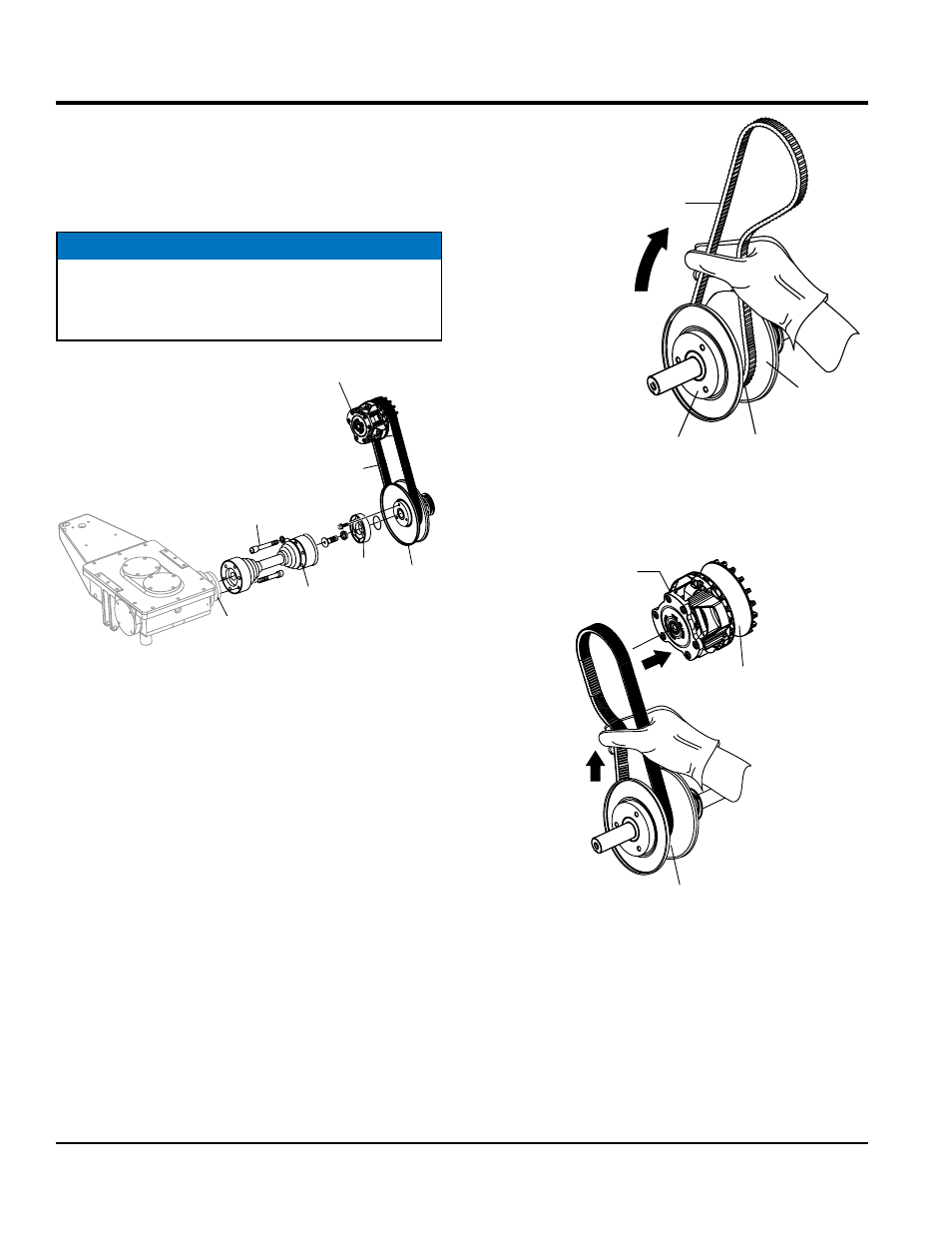

Figure 28. Remove Left-Side CV Axle
3. If the belt is not being reused (recommended), CUT
the drive belt. Ensure all belt remnants are removed
from the pulleys.
INSTaLLINg DRIVe BeLT
1. Place new CVT belt over the lower pulley. Squeeze the
belt Figure 299) and pull the belt upwards and towards
the rear of the trowel. This will spread open the faces
of the lower drive pulley.
NOTICE
Note that the 3 bolts securing the CV axle to the coupler
are shorter than those securing the CV axle to the
gearbox. Remember bolt orientation for reassembly.
LEFT-SIDE
GEARBOX
GEARBOX
COUPLER
CV AXLE
LOWER
DRIVE
PULLEY
COUPLER
CVT
BELT
UPPER DRIVE
PULLEY/CLUTCH
SHORTER
SCREWS (3)
Figure 29. Holding Lower Pulley Open
2. Place free end of CVT belt into upper pulley grooves.
Figure 30. Upper Pulley Belt Installation
3. Reconnect left-side CV Axle Assembly. to the left side
gearbox and lower drive pulley coupler. See Figure 28.
CVT BELT
(P/N 23365)
MO LOWER
PULLEY
VEABLE
FACE
FIXED
FACE
PULL UPWARDS
AND TOWARDS
REAR OF TROWEL
CLUTCH
UPPER
PULLEY
LOWER
PULLEY
MaintenanCe (new style ClutCh)
