page 22 — HHN31VTCSL5 RIDe-ON TROWeL • OpeRaTION aND paRTS maNuaL — ReV. #8 (05/03/12)
inspeCtiOn
This section is intended to assist the operator with the initial
inspection of the HHN trowel. It is extremely important that
this section be read carefully before attempting to use the
trowel in the field.
DO NOT use your trowel until this section is thoroughly
understood.

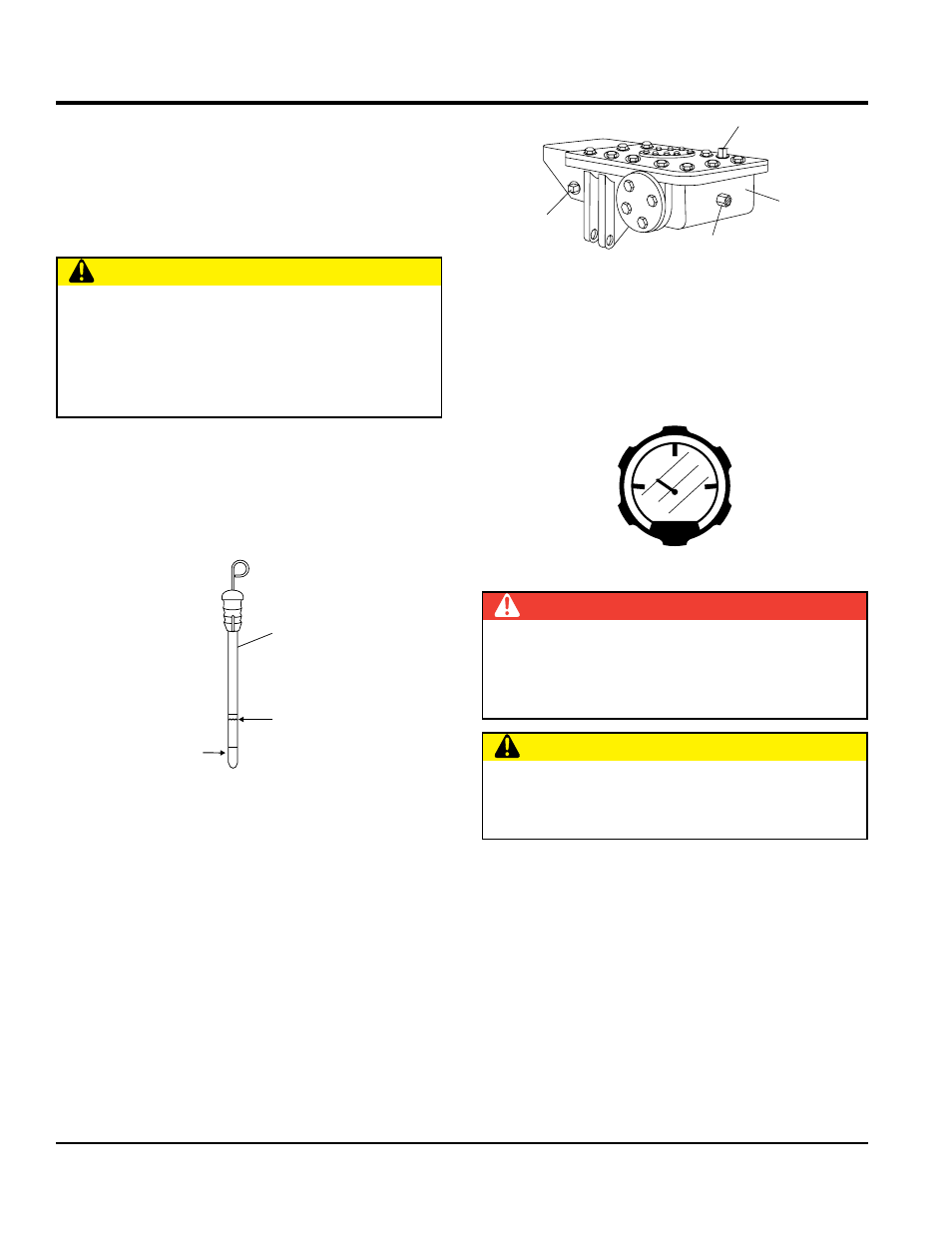

eNgINe OIL LeVeL
1. Pull the engine oil dipstick from its holder.
2. Determine if engine oil is low (Figure 6), add correct
amount of engine oil to bring oil level to a normal safe
level. (See Table 5).
Figure 6. Engine Oil Dipstick
geaRBOx OIL LeVeL
1. Check the gearbox oil level in both gearboxes by
viewing the sight glass at the rear of the gearbox. See
Figure 7.
2. The oil level of the gear box should be at the half-way
point of the sight glass (Figure 7). The gear box oil
capacity is 1 U.S. Gallon, (3.79 liters). If additional oil is
required, unscrew the oil fill plug located on top of the
gearbox, and refill with ISO 220 A GMA GR 5 EP oil.
CauTION
Failure to understand the operation of the HHN trowel
could result in severe damage to the trowel or personal
injury.
See Figure 2 and Figure 3 for the location of any control
or indicator referenced in this manual.
MAX
MIN
ENGINE OIL
DIPSTICK
ADD
ENGINE
OIL
SAFE
OPERATING
OIL LEVEL
Figure 7. Gearbox Oil Plugs/Sight Glass
FueL
Determine if the engine fuel is low (Figure 8). If fuel level
is low, remove the fuel filler cap and fill with appropriate
engine fuel. The HHN31V uses diesel fuel.
Figure 8. Fuel Gauge
SIGHT GLASS
(OIL CHECK)
FILL PLUG
GEAR BOX
DRAIN PLUG
FUEL
E F
DaNgeR
Handle fuel safely. Motor fuels are highly flammable
and can be dangerous if mishandled. DO NOT smoke
while refueling. DO NOT attempt to refuel the ride-on
trowel if the engine is hot or running.
CauTION
Never store the ride-on trowel with fuel in the tank for
any extended period of time. Always clean up spilled
fuel immediately.
