COMpOnents
20. eZ- mover Boss — Front -side insertion point for EZ
Mover. Used when the transporting of the trowel is
required.
21. Radiator/Filler Cap — Holds coolant or water
necessary to keep engine at a safe operating
temperature. Remove this cap to add water or
antifreeze. DO NOT revove this cap when the engine
is warm.
22. Lift Loops — Located on both the left and right sides
of the main frame. Used when the trowel must be lifted
onto a concrete slab.
23. Lights — Four 12 volt halogen lights are provided
with this unit.
24. Right-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
25. Left-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
26. Safety Kill Switch — Shuts down engine when
operator is not sitting in seat.
27. engine Oil Filler Cap — Remove this cap to add
engine oil.
28. Overflow Bottle — Supplies coolant to the radiator
when radiator coolant level is low. Fill to indicated level
as shown on bottle.
29. engine air Filter — Prevents dirt and other debris from
entering the fuel system. Lift locking latch on air filter
cannister to gain access to filter element.
30. engine Dip Stick — Indicates engine oil level. Add
oil as required.
31. Oil Filter — Provides oil filtering for the engine.
32. Battery — Provides +12V DC power to the electrical
system
33. Retardant Spray motors — Used in conjunction with
the left and right spray control buttons.
34. Retardant Spray Tank — Holds 5 gallons of retardant.
35. Belt guard — Encloses drive belt used in conjunction
with clutch.
36. eZ- mover Boss — Back- side insertion point for EZ
Mover. Used when the transporting of the trowel is
required.
37. Oil Sight glass — Indicates the level of the hydraulic
oil in the gear box.

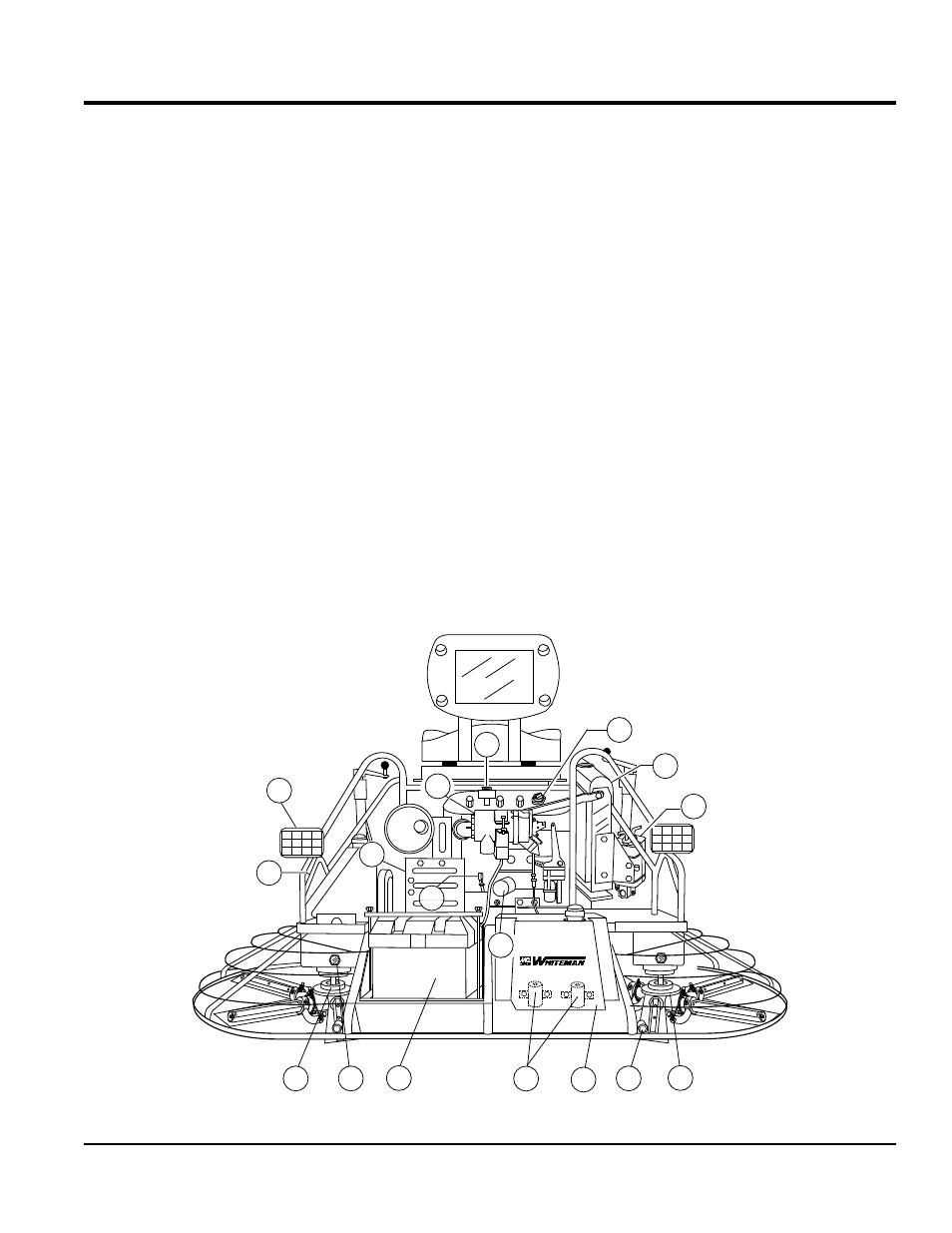

Figure 3. HHN Components (Rear)
