PAGE 36 — MAYCO LS-40D/LS-40TD/LS-50TD PUMP — OPERATION AND PARTS MANUAL — REV. #11 (09/16/11)

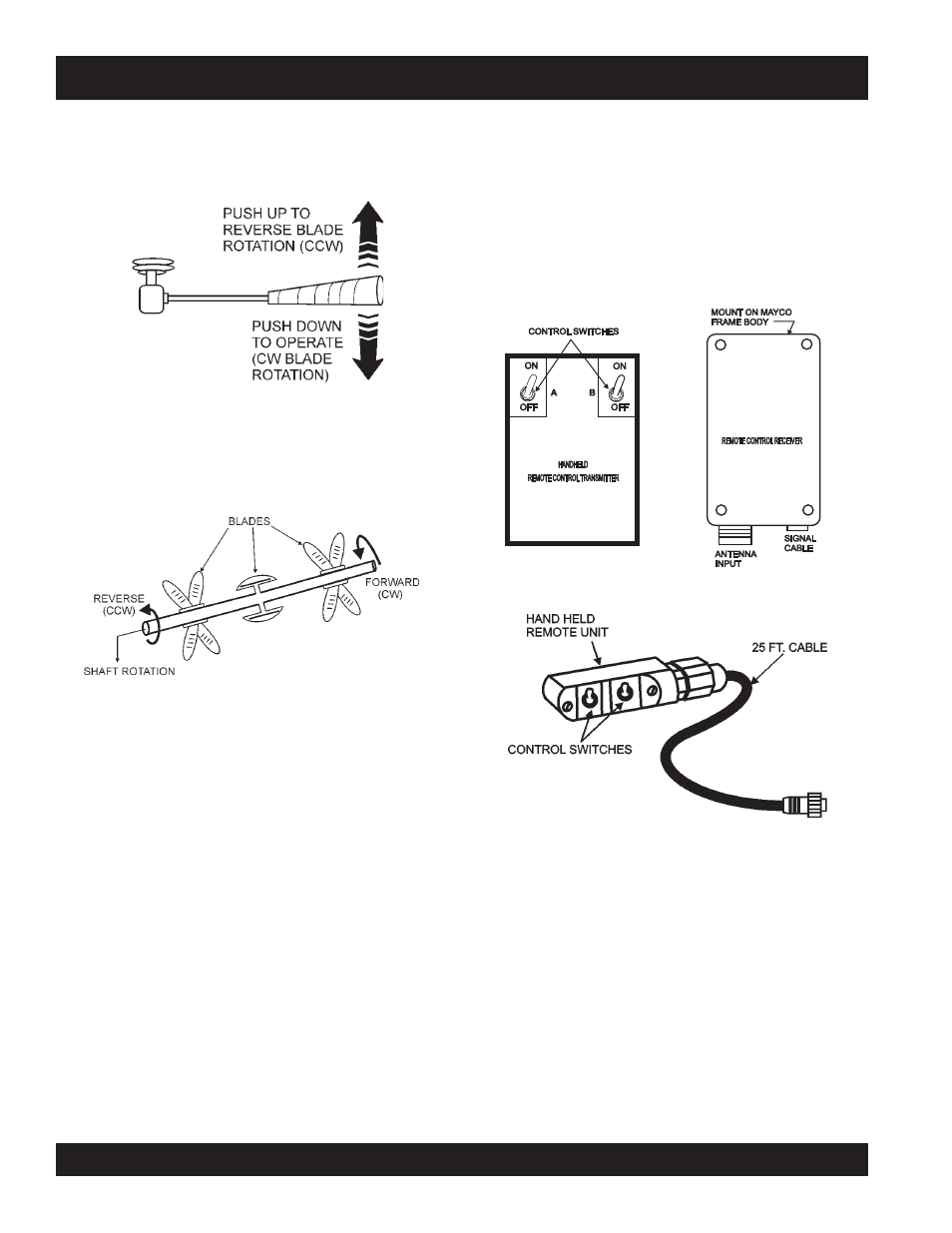

Figure 36. Handheld Receiver/Transmitter
Figure 37. Handheld Remote Cable Unit
RADIO REMOTE CONTROL (OPTIONAL)
The MAYCO LS-40D/LS-40TD/LS-50TD Concrete Pump has
a remote control feature that allows the pump to be remotely
controlled. If desired, the pump can be operated via a
receiver/transmitter method (Figure 36) or a hardwire method,
which utilizes a 25-ft. extension cable.
The manual remote cord (Figure 37) should be installed under
the main control box. Contact your MAYCO representative
for further information.
LS-40D/LS-40TD/LS-50TD PUMP — OPERATING PROCEDURES
2. Push the Hopper Remixer Control lever UPWARD
(Figure 34) and observe that the blades (Figure 35) inside
the hopper are turning in a counter-clockwise direction
(REVERSE).
1. Push the Hopper Remixer Control lever DOWNWARD
(Figure 35) and observe that the blades (Figure 37) inside
the hopper are turning in a clockwise direction (forward).
Figure 35. Hopper Remixer Blades (Rotation)
HOPPER REMIXER CONTROL
The Hopper Remixer Control lever is located to the left of
the Hydraulic Temperature gauge is (Figure 34).
Figure 34. Hopper Remixer Control Lever
