MAYCO LS-40D/LS-40TD/LS-50TD PUMP — OPERATION AND PARTS MANUAL — REV. #11 (09/16/11) — PAGE 29

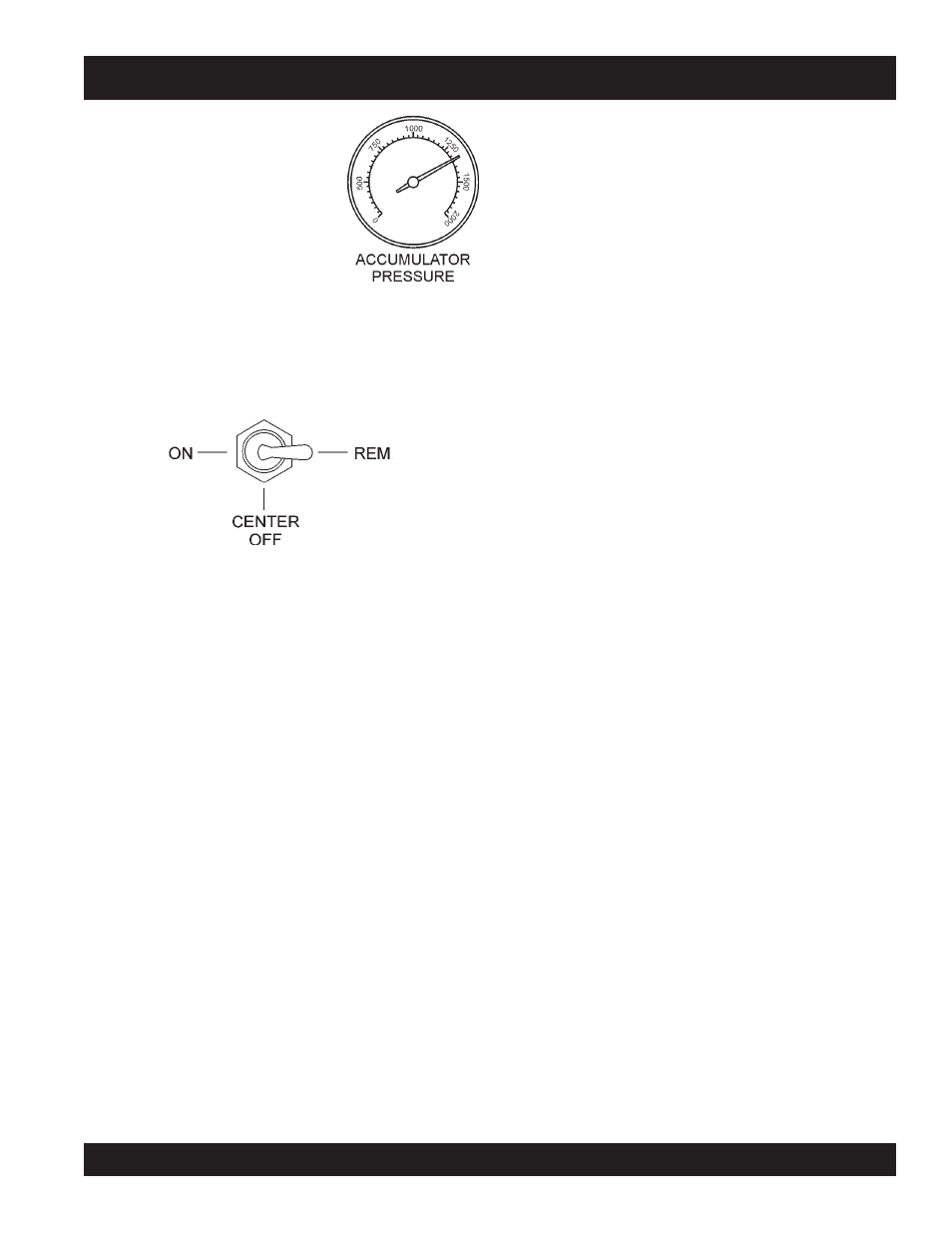

Figure 29. Accumulator
Pressure Gauge
LS-40D/LS-40TD/LS-50TD PUMP — START-UP/SHUT-DOWN PROCEDURE
11. The Accumulator Pressure
Gauge (Figure 29) should read
approximately 1750 pounds per
square inch (psi).
12. Turn the Cylinder Stroke Control switch to the OFF
position (Figure 30). The pump is now ready to be
operated. Refer to the
Operating Procedures section
of this manual for priming and operating instructions.
Figure 30. Pumping Control
Switch (Off)
EMERGENCY SHUTDOWN PROCEDURE
In the event of an emergency, to shut down the pump:
1. Depress the Emergency Stop Switch (Figure 19)
