PAGE 108 — MAYCO LS-40D/LS-40TD/LS-50TD PUMP — OPERATION AND PARTS MANUAL — REV. #11 (09/16/11)
1
2
4
4
3
A
B
C
5
Grease daily, two or three hots of #2 multipur-
pose automotive grease. Over greasing any
bearing will not damage the machine.
ALWAYS grease
before and after pump
operation.
POSITION LOCATION LENGTH OF LINES
A ................................................. CLEVIS GREASE POINT ................................................ 34 in. (1.1 m)
B ................................................. SWING AXLE BUSHING GREASE POINT ...................... 26 in. (.85 m)
C................................................. PIVOT BRACKET GREASE POINT ................................. 41 in. (1.5 m)

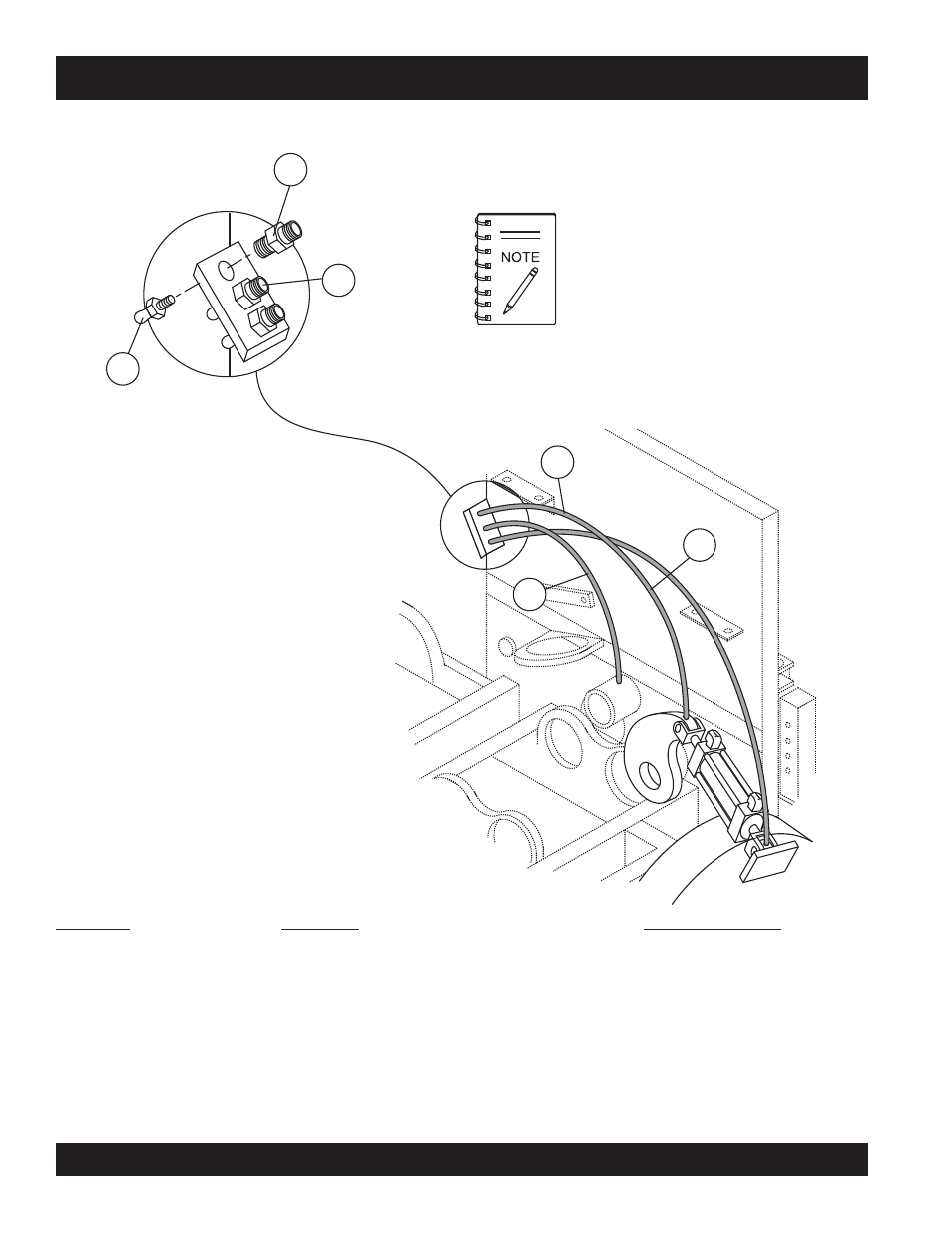

GREASE POINTS
LS-40D/LS-40TD/LS-50TD PUMP — LUBRICATION PANEL
