MAYCO LS-40D/LS-40TD/LS-50TD PUMP — OPERATION AND PARTS MANUAL — REV. #11 (09/16/11) — PAGE 23
LS-40D/LS-40TD/LS-50TD PUMP — ENGINE COMPONENTS
INITIAL SERVICING
The engine (Figure 8) must be checked for proper lubrication
and filled with fuel prior to operation. Refer to the
manufacturers Engine manual for instructions & details of
operation and servicing.
1. Fuel Filter – Service the fuel filter as recommended in
the maintenance section of this manual.
2. Oil Filter – Prevents dirt and other debris from entering
the engine. Service the oil filter as recommended in
the maintenance section of this manual.
3. Crankcase Drain Plug – Remove this plug to drain
engine oil from the engine crankcase. For best results
drain engine oil when oil is warm.
4. Dip Stick – Remove dipstick to determine if the engine
oil level is low. If low add oil as specified in Table 4.
5. Speed Control Lever – This lever is connected to the
throttle control which is located on the side of the fuel
filter mounting bracket Use this lever to control engine
speed.
6. V-Belt Cover – Remove this cover to gain access to
the V-belt. When replacing V-belt , use only
recommended type V-belt.

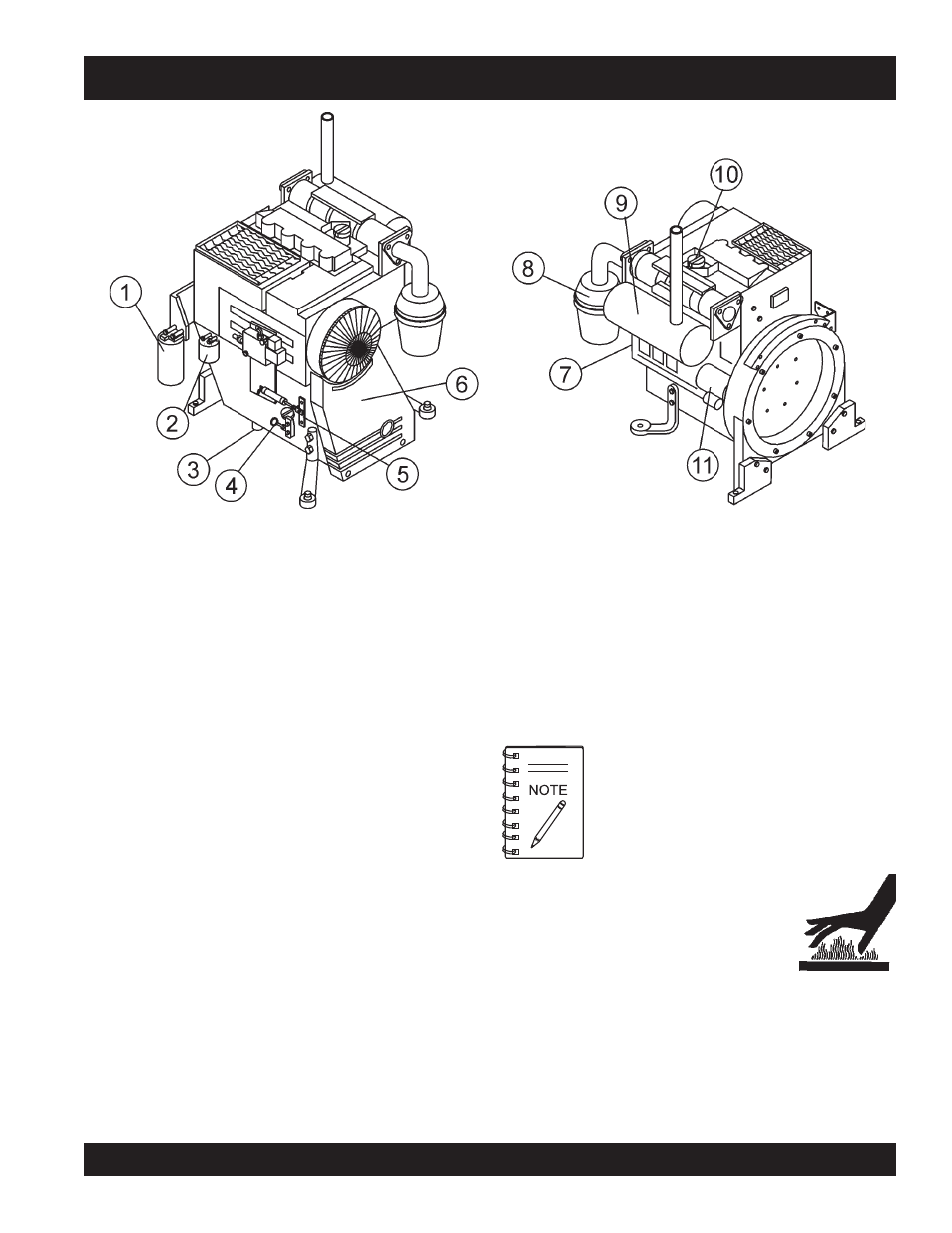

Figure 8. Deutz F4L2011F/BF4L2011 Diesel Engine Components
7. Alternator – Provides power to the electrical system.
Replace with only manufacturers recommended
replacement parts.
8. Air Filter/Cover – Prevents dirt and other debris from
entering the fuel system. Release the latches on the
side of the air filter cover to gain access to filter element.
Operating the engine without an air filter, with
a damaged air filter, or a filter in need of
replacement will allow dirt to enter the engine,
causing rapid engine wear.
9. Muffler – Used to reduce noise and
emissions. NEVER touch the muffler
while it is hot! Serious burns can
result. NEVER operate the engine with
the muffler removed.
10. Oil Filler Port/Cap – Remove this cap to add engine
poil to the crankcase. Fill with recommended type of
oil as specified in the maintenance section of this
manual.
11. Starter/Solenoid – This engine uses a 12 VDC , 2.7kW
(3.7 HP) starter motor with solenoid.
