page 30 — wm63-series mixer • operaTion and parTs manual — rev. #0 (09/27/12)
4. If gear teeth are not contacting properly (Figure 34),
adjust pillow block to correct the problem.

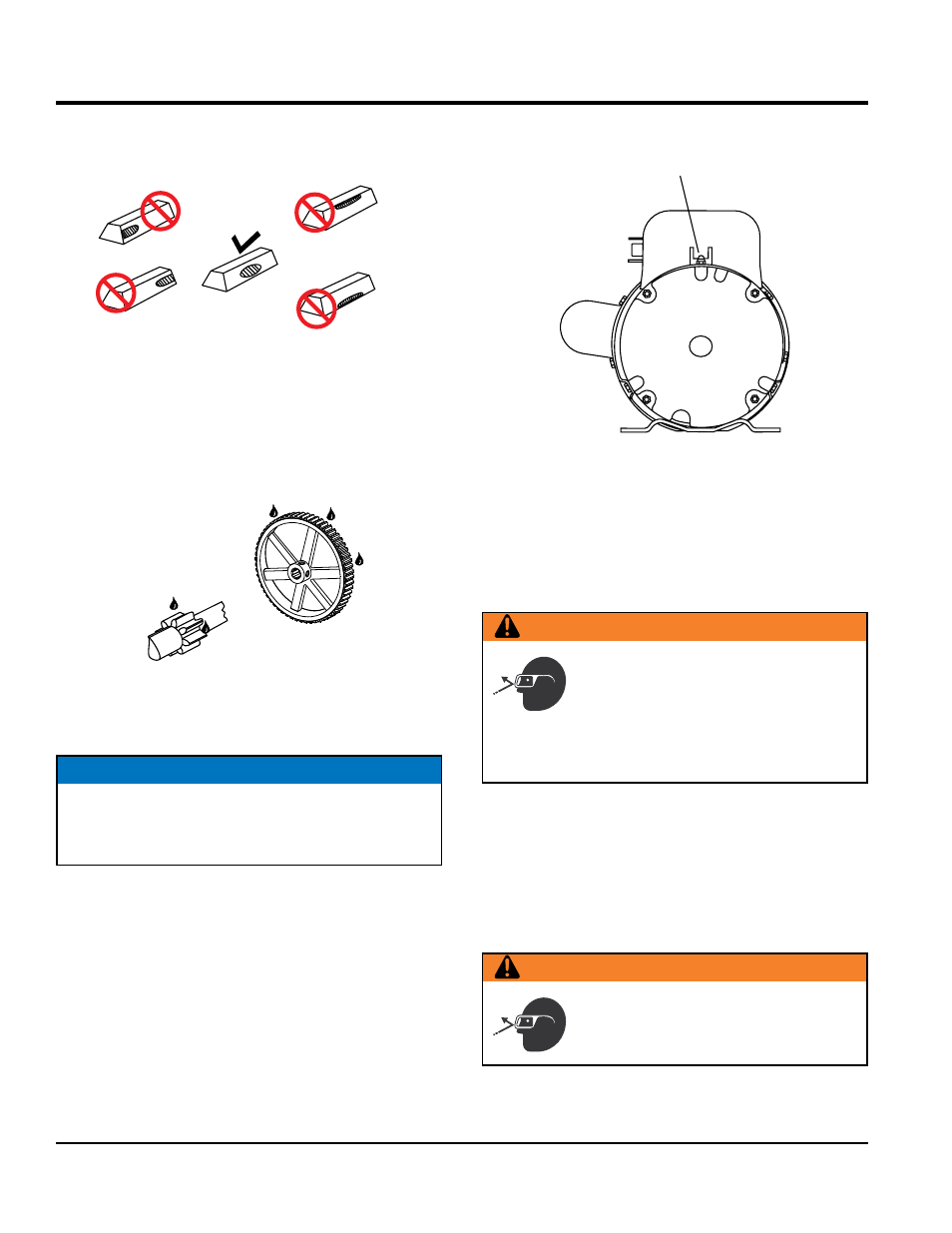

Figure 34. Gear Teeth Alignment
gear luBriCaTion
The surface of the pinion and main gear (Figure 35) should
be very lightly greased.
Figure 35. Pinion and Bull Gear Lubrication
grease FiTTings (Zerk) mainTenanCe
(eleCTriC moTor)
1. There are two grease (Figure 33) fittings at each end of
the electric motor that will require lubrication. Lubricate
these fittings about every 16 months.
2. Use Poleyrex EM (Exxon Mobil) or equivalent lubricant.
Clean grease fitting, apply grease gun to fitting (1/2
shot). Remember too much grease or injecting grease
too quickly can cause premature bearing failure. Slowly
apply the recommended amount of grease, taking a
minute or so to apply.
HEAL
CONTACT
TOE
CONTACT
FACE
CONTACT
FLANK
CONTACT
PROPER
CONTACT
MAIN
GEAR
DRIVE
PINION
NOTICE
Grease main and pinion gears every 250 hours of
operation. avoid over-greasing. Excess grease will
accumulate contaminants and cause premature wear.
Maintenance (Mixer)
Figure 36. Grease Fittings Electric Motor
Tires/wHeels/lug nuTs
Tires and wheels are a very important and critical
components of the trailer. When specifying or replacing
the trailer wheels it is important the wheels, tires, and axle
are properly matched.
Tires wear/inflation
Tire inflation pressure is the most important factor in tire
life. Pressure should be checked cold before operation.
do noT bleed air from tires when they are hot. Check
inflation pressure weekly during use to insure the maximum
tire life and tread wear.
Table 9 (Tire Wear Troubleshooting) will help pinpoint the
causes and solutions of tire wear problems.
GREASE
FITTING
warning
do noT attempt to repair or modify a wheel.
do noT install an inter-tube to correct a leak
through the rim. If the rim is cracked, the air
pressure in the inter-tube may cause pieces
of the rim to explode (break-off) with great force and can
cause serious eye or bodily injury.
warning
alwaYs wear safety glasses when removing
or installing force fitted parts. Failure to
comply may result in serious injury.
