page 28 — wm63-series mixer • operaTion and parTs manual — rev. #0 (09/27/12)

Maintenance (Mixer)

drum Head seals

There is 1 set of drum head seals (Figure 29) that will

require lubrication. Lubricate the grease fitting for each

drum seal every 40 hours of operation using any grade

lithium base grease. Apply grease until visible inside of

mixing drum (over grease). This will purge seal system of

contamination.

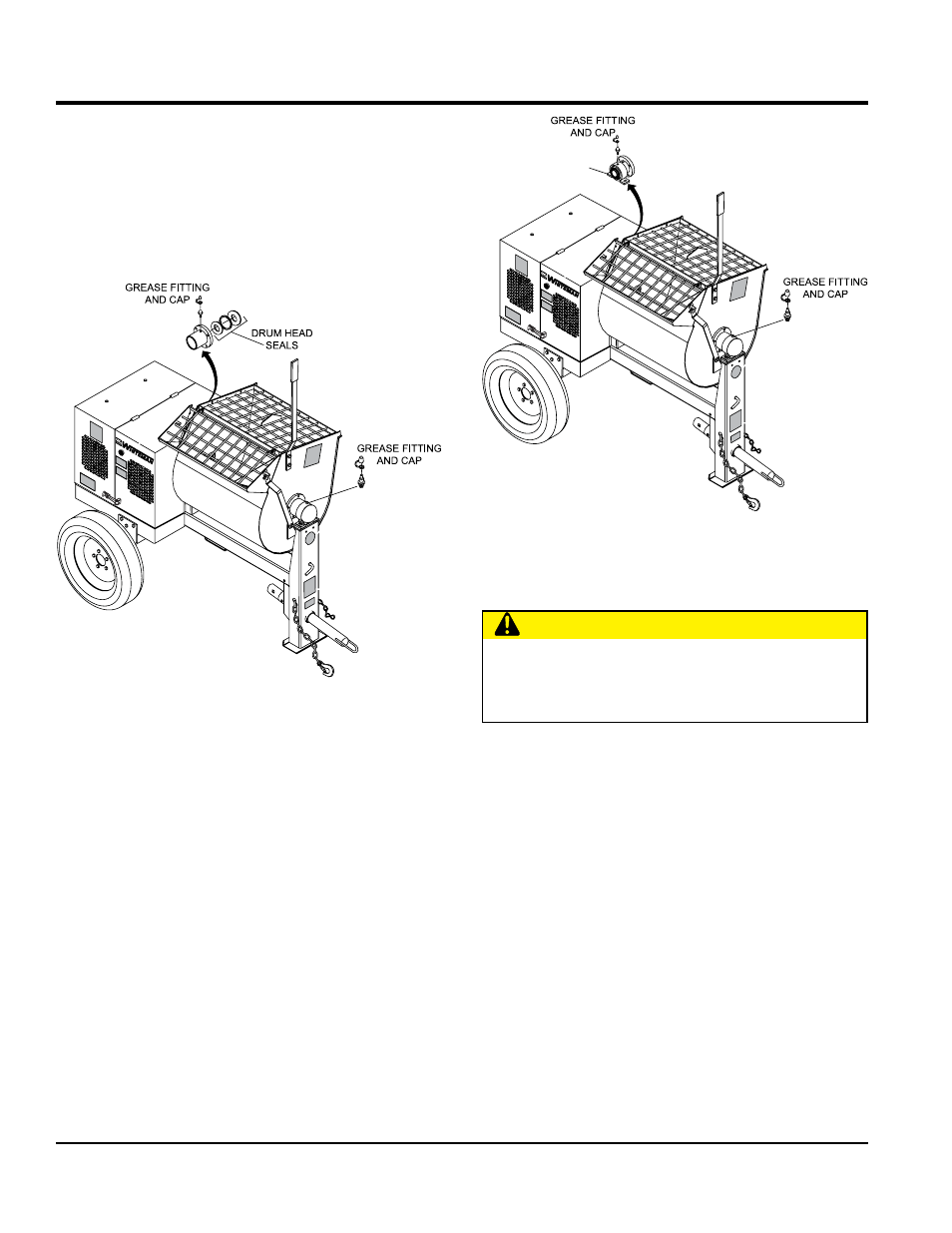

Figure 29. Grease Fittings (Drum Head Seals)

drum Bearing BraCkeT luBriCaTion

There is 1 set of drum bearing brackets (Figure 30) that

will require lubrication. These brackets are intended to

make the drum rotate freely. Lubricate the grease fitting

for each drum bearing bracket every month or when the

drum becomes difficult to position using multi-purpose

grade grease.

Figure 30. Grease Fittings (Dumping

Mechanism)

Ball soCkeT and Clamp FaCe mainTenanCe

1. If the towing vehicle is equipped with a ball socket,

smear socket periodically with multi-purpose grease.

This will keep the ball socket well lubricated.

2. Periodically oil pivot points and clamp face surfaces of

coupler with SAE 30 WT. motor oil.

3. When parking or storing your mixer. Keep the coupler

off the ground so dirt will not build up in the ball socket.

CounTersHaFT Bearing luBriCaTion

There is 1 set of countershaft bearings (Figure 31) that

will require lubrication. Lubricate the grease fitting for each

countershaft bearing every 40 hours of operation using any

grade lithium base grease.

DRUM BEARING

BRACKET

CauTion

Failure to lubricate the drum bearing grease fittings

periodically will cause the dumping mechanism to

stiffen, making the mixing drum hard to dump.
