wm63-series mixer • operaTion and parTs manual — rev. #0 (069/27/12) — page 21
paddle blade adjustMent

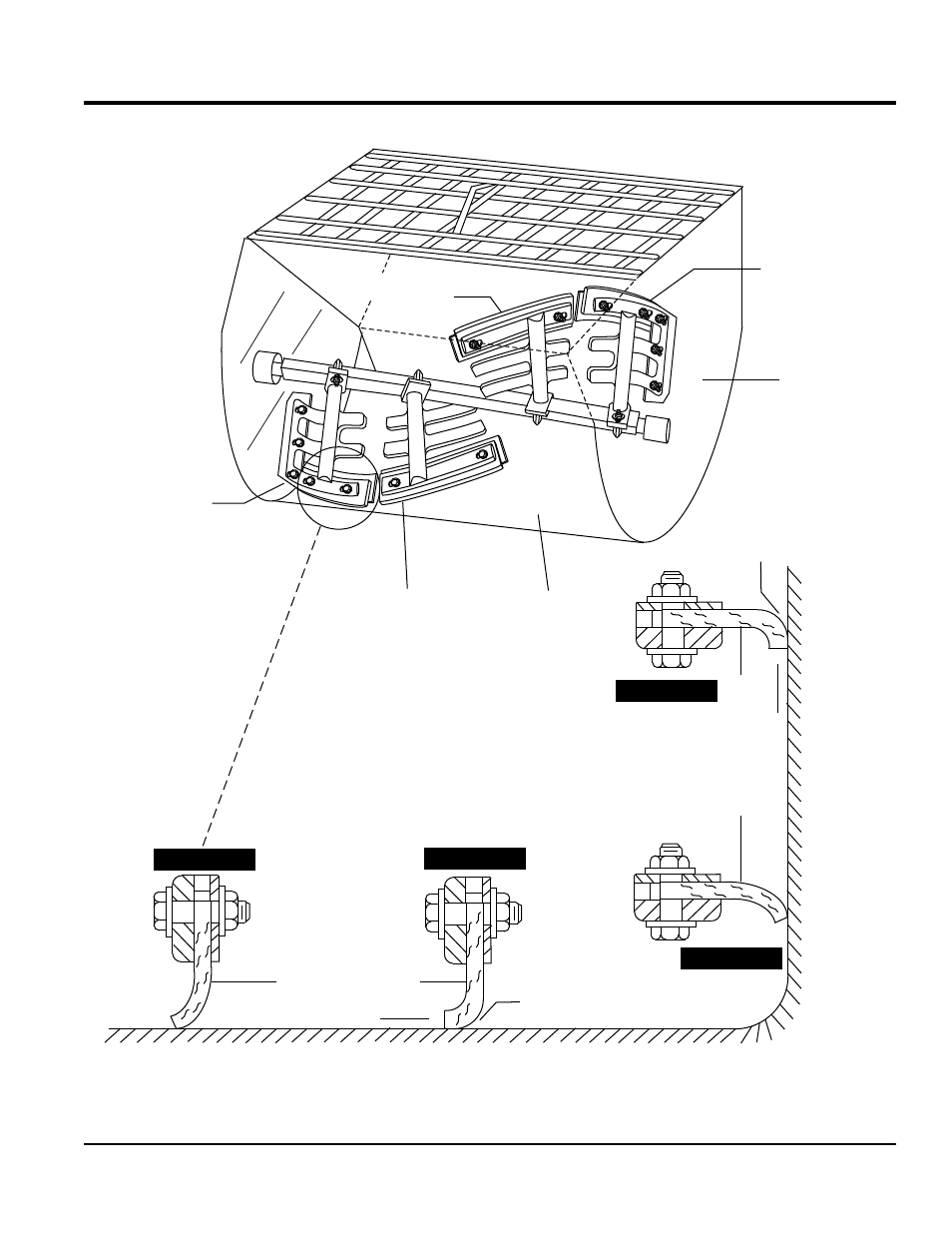

Adjust paddles as shown in Figure 13.
Figure 13. Paddle Blade Adjustment
TOW END
CAST PADDLE
ENGINE END
CAST PADDLE
CENTER ENGINE
END CAST PADDLE
SIDE PADDLE BLADE
END P
ADDLE BLADE
ROTATION
ROT
A
TION
PADDLE BLADE IS TOO
TIGHT AGAINST DRUM
SIDE WALLS.
PADDLE BLADE IS TOO
TIGHT AGAINST DRUM
SIDE WALLS.
DRUM END AND SIDE WALLS
CENTER TOW END
CAST PADDLE
INCORRECT
INCORRECT
CORRECT
CORRECT
INCORRECT
DRUM END
DRUM SIDE
