Recover from a Tripped Limit
To prevent actuator and lower crosshead damage, your MTS Criterion test system monitors the position
of these components. The system has limit switches that trip before actuator or crosshead movement can
cause damage.
If, during normal operation, you encounter a tripped limit, use one of the two methods below to restore the
system to operation.

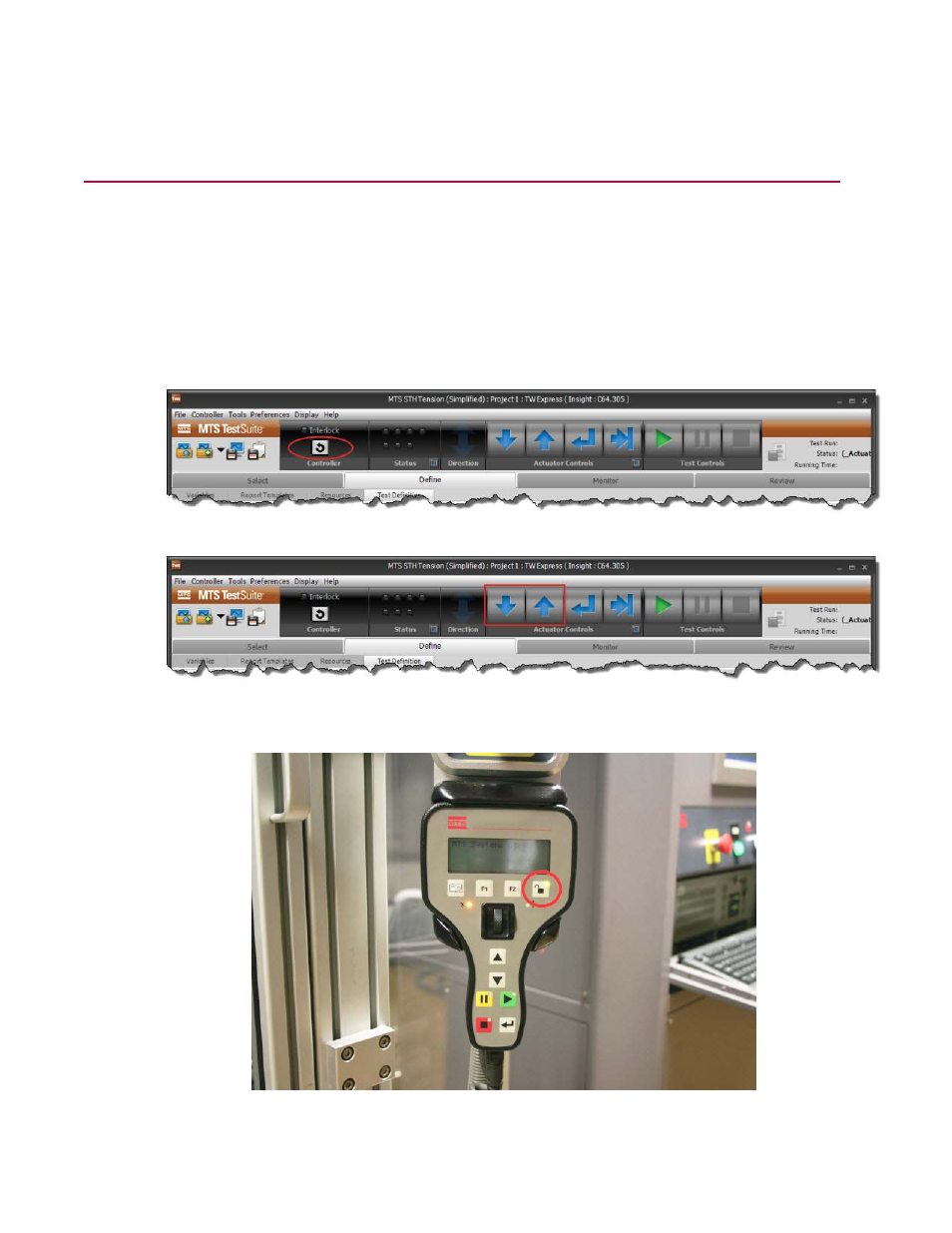

1. Use the actuator controls in TW.
a) Reset the Interlock.
b) Use the Actuator Up or Actuator Down button to move the actuator out of the interlock condition.
2. Use the handset.
a) Reset the interlock and enable the handset by pressing the Handset Enable button twice.
