MTS Criterion Series 60 User Manual
Page 120

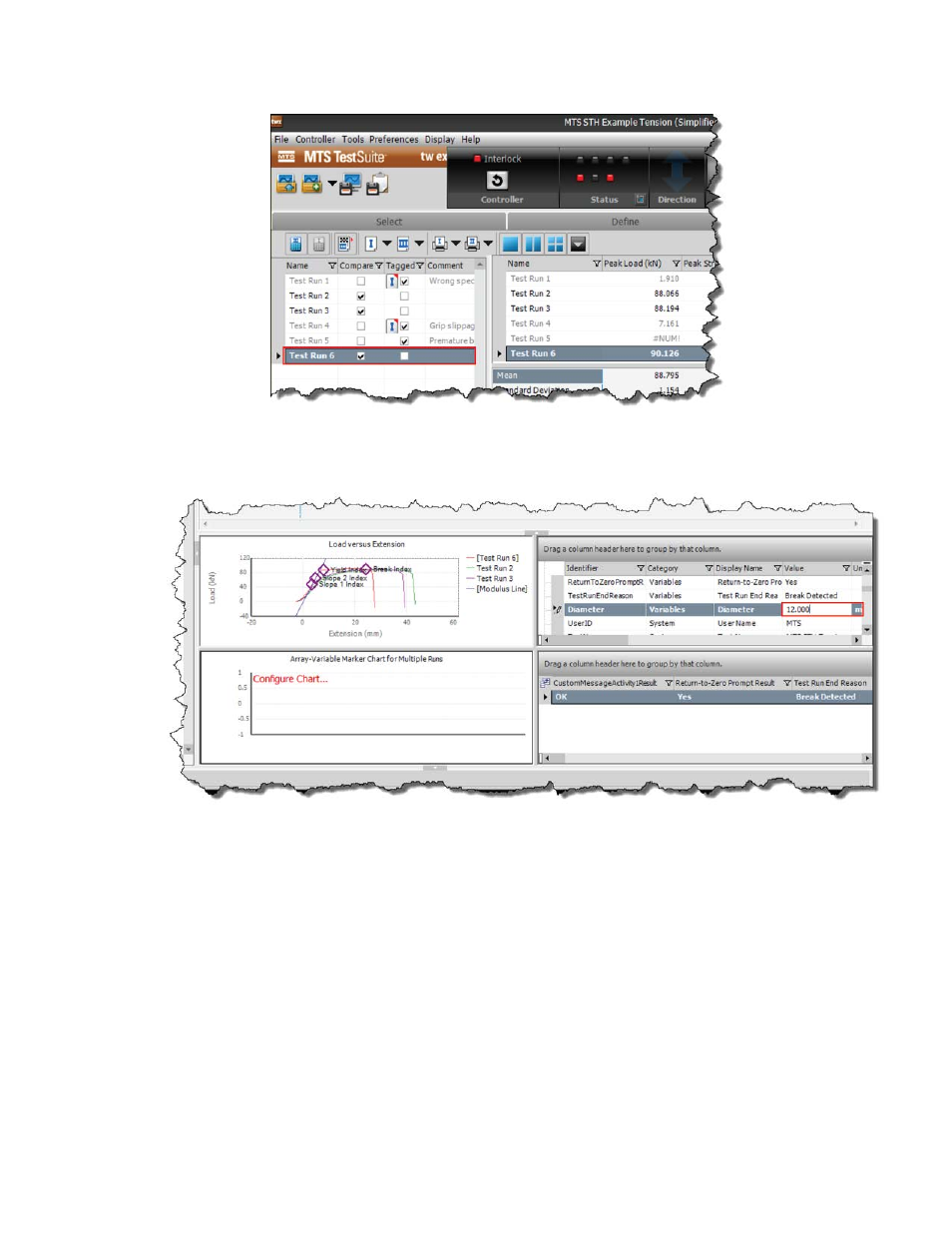

b) In the Variable Table view, scroll down to Diameter and change the value from 12.700 mm to
12.000 mm. Clicking anywhere else on the screen enters the value and updates any dependent
calculated values.
c) If desired, reset the Diameter to its original value by clicking the Reset button in the Reset Value
field. A confirmation window appears.
120 | MTS Criterion
™
Series 60
Reviewing, Analyzing, and Reporting Data
