MTS Criterion Series 60 User Manual
Page 37
Important:
Observe all hazard and warning stickers shown on the front of the frame.
Caution
:
During a test, the lower crosshead remains stationary, and the actuator moves the upper
crosshead and table in an upward direction to provide load to the specimen. The lower
crosshead is only for adjusting the tension and compression spaces to insert specimens.
Applying load on the specimen by adjusting the crosshead position can cause equipment
damage.
Do not apply load by moving the lower crosshead. All tests should be performed by moving
the actuator (upper crosshead and table).

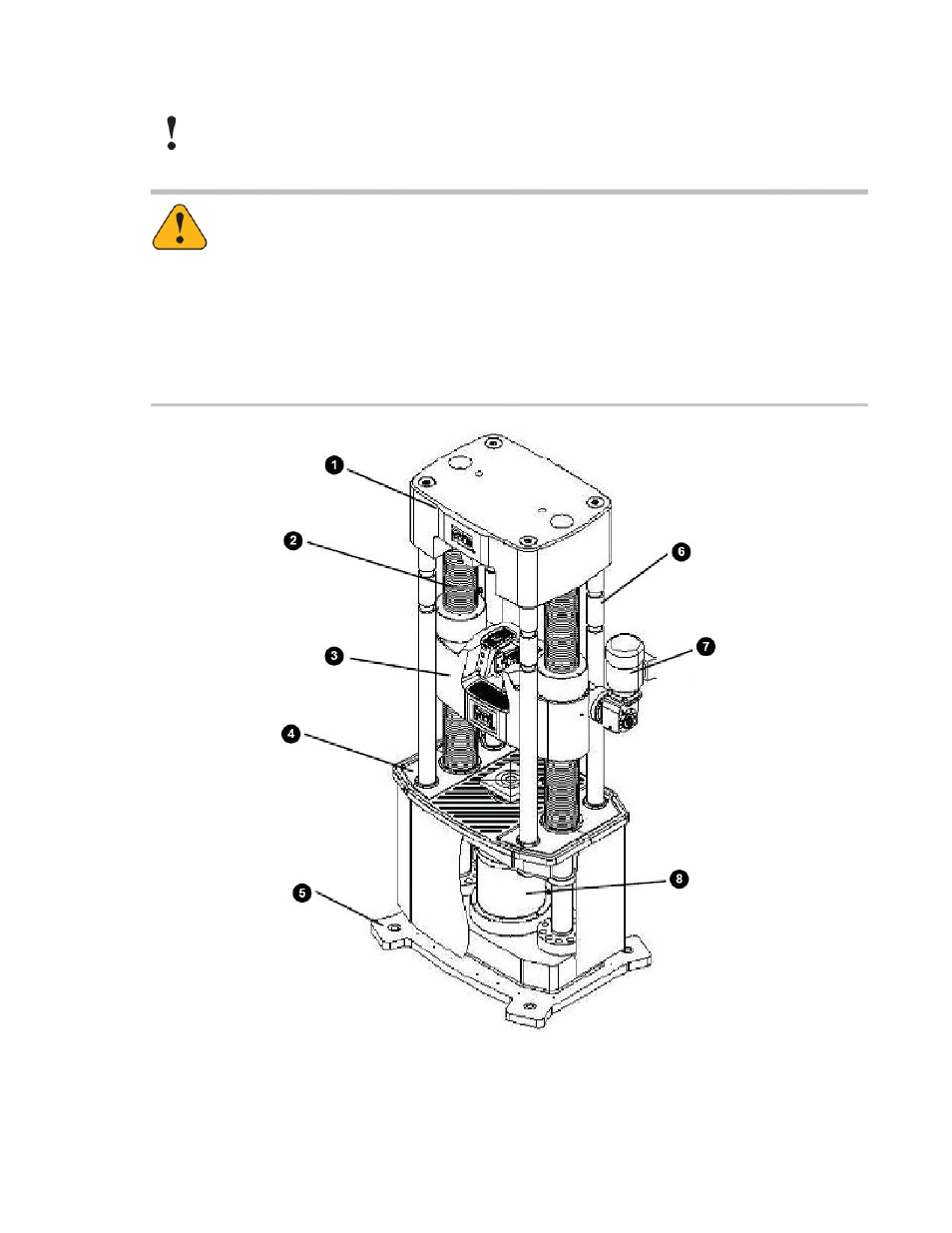

MTS Criterion Series 60 Load Frame
MTS Criterion
™
Series 60 | 37
System Introduction
