MTS Criterion Series 60 User Manual
Page 112

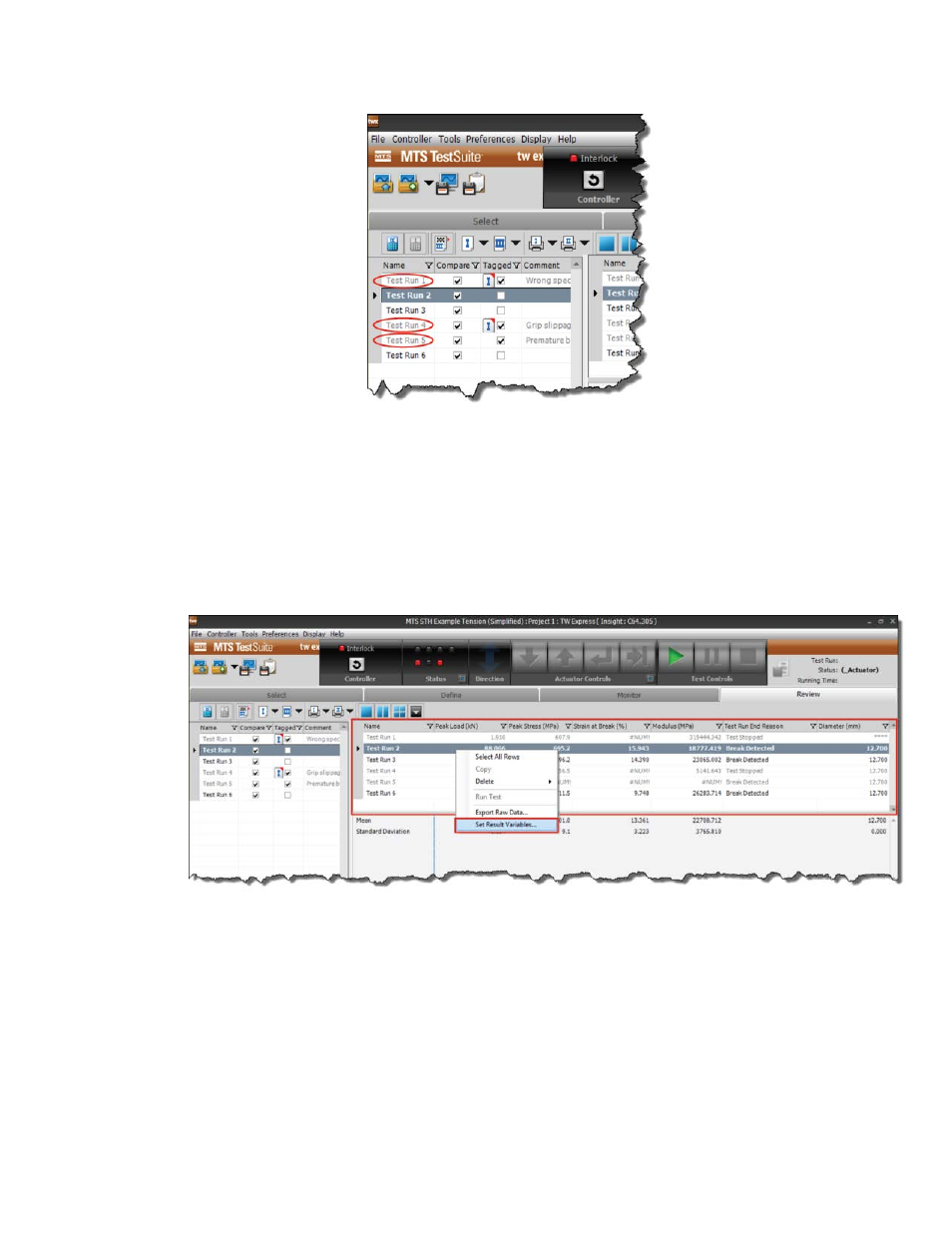

Test Runs 1 and 4 are automatically tagged and excluded from the statistical results and reports.
However, notice that test run 5 is not autotagged because of the non-numerical values in the
data. Always review autotagging results to ensure the results are as expected.
6. Add and order data fields shown in the Results panel.
This step demonstrates how to set up the Results panel to your liking.
a) Add the Yield Index field to the Results panel.
1. Right-click anywhere inside the Results panel. Select Set Result Variables.
2. Find Yield Index in the variable list and click the right arrow to add it to the Results panel.
112 | MTS Criterion
™
Series 60
Reviewing, Analyzing, and Reporting Data
