Page 25
Calibration
25

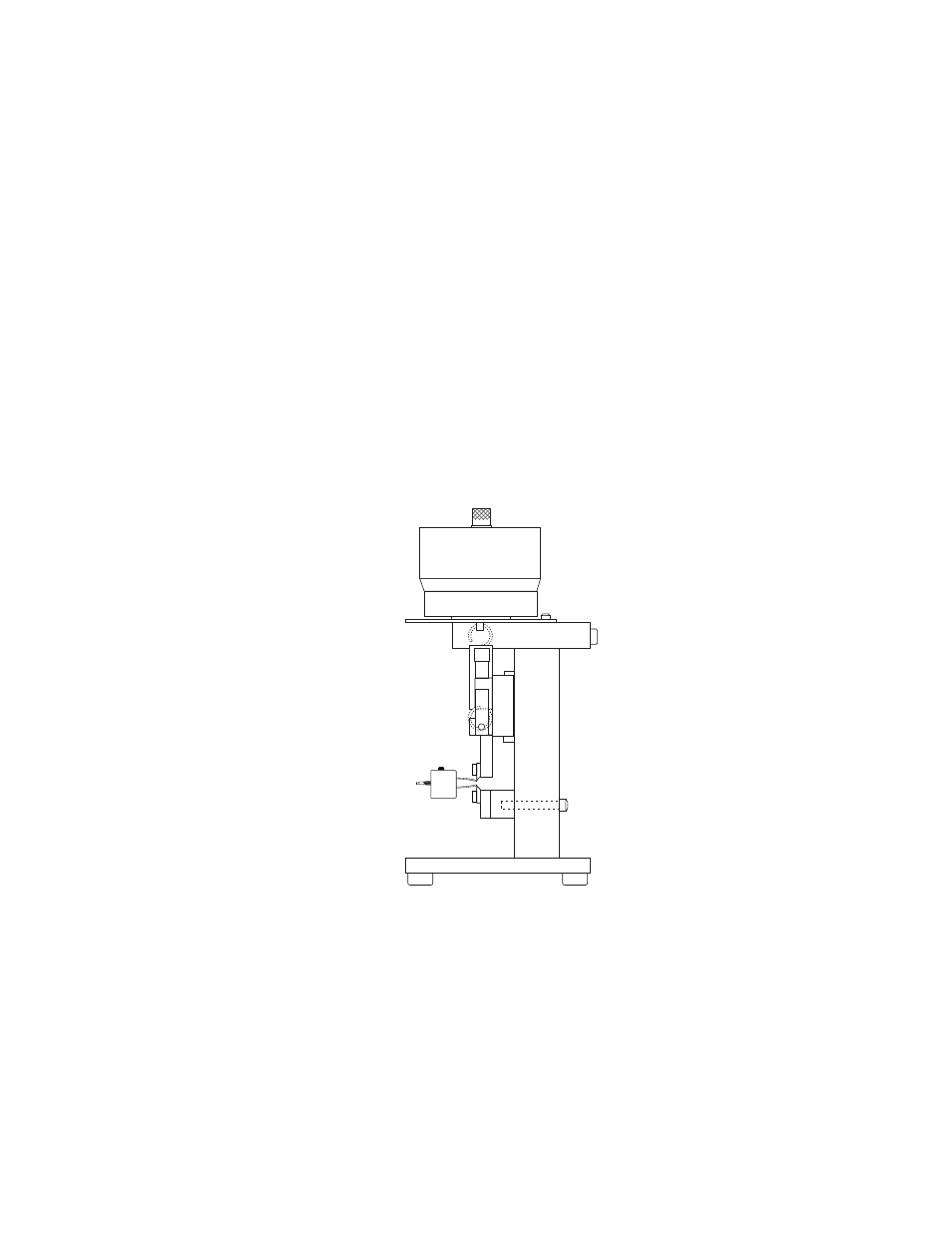

How to Use a Calibration Stand
This method requires a tool such as the Model 650.03 Calibrator from
MTS Systems Corporation. Use this procedure as a guideline to
calibrate other clip-on gages.
Note
The Model 650.03 Calibrator from MTS Systems Corporation
can be configured to accept any clip-on gage. Ensure that the
appropriate fixture is mounted to the calibrator and set it up for
the compressed gage length. The fixture for clip-on gages is
MTS part number 031-508-501.
1. Set up the controller.
Your test controller must be configured to use the clip-on gage
signal.
A. Connect the clip-on gage to your controller.
B. Monitor the excitation voltage.
C. Monitor the clip-on gage signal.
m
