Insight Material Testing System
Description
Introduction
18
Description
Every MTS Insight material testing system is comprised of a load frame,
electronic frame controller, and TestWorks
®
software. The following figure

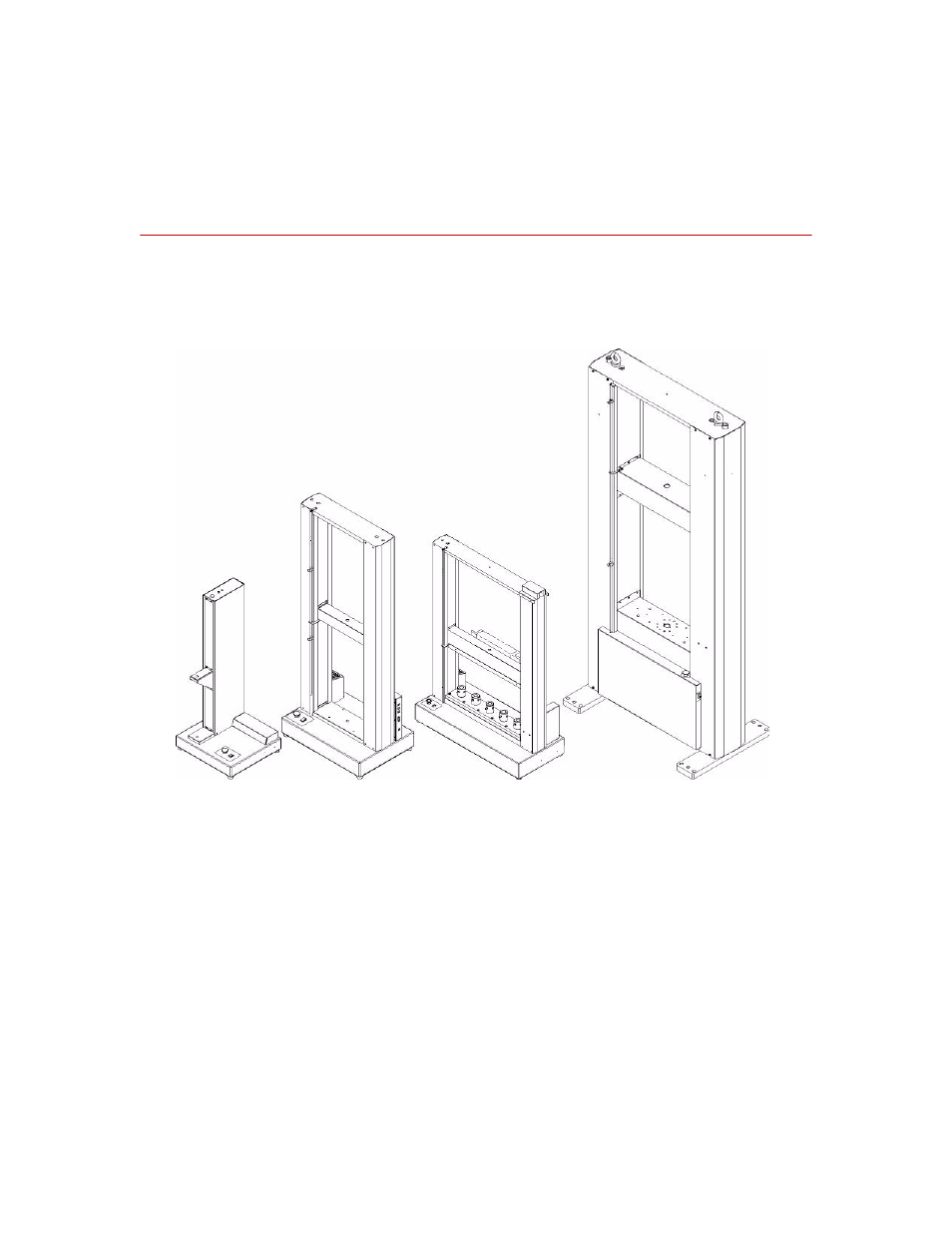

shows the external features of the various MTS Insight load frames.
The personal computer is also an integral part of the system. It runs
TestWorks software which provides full machine control, data acquisition
and management, and advanced data analysis and presentation. MTS has
minimized the amount of custom electronics required for your system,
thereby making it flexible and reliable. This is done by connecting the frame
and the computer via standard USB 2.0 connectors.
1 kN and 2 kN
2 kN EL High-Speed and
5 kN through 50 kN
100 kN through 300 kN
50 kN W and
50 kN W Mulihead (shown)
