Load Unit Addendum 82 Addendum

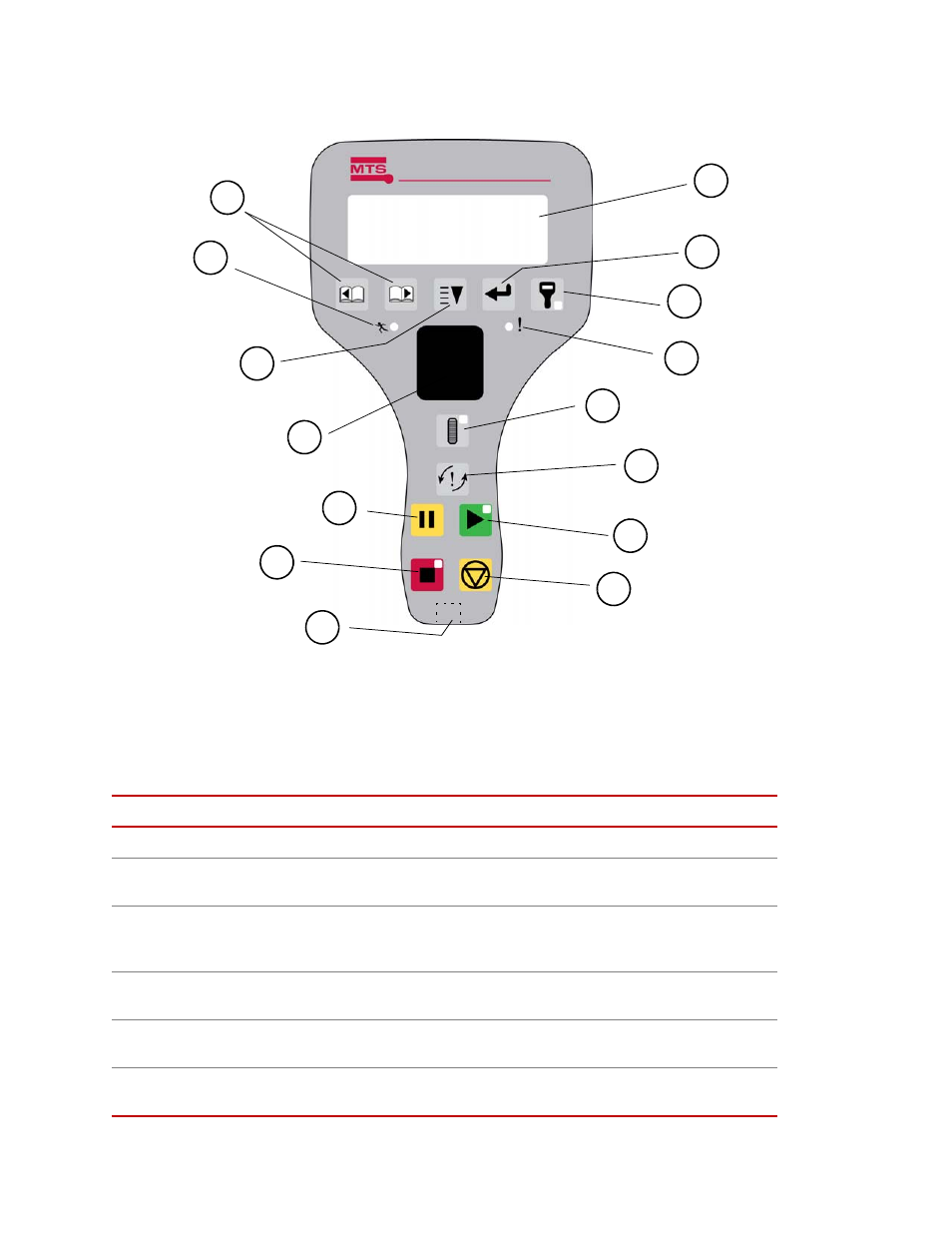

Handset functions
The handset is intended to be used in a system for specimen loading or setup. In
some applications, it can be used to completely run a test.
1
2
3
4
5
6
7
15
14
12
11
10
9
8
L I N E 1 U P T O 2 0 C H A R
L I N E 2 U P T O 2 0 C H A R
L I N E 3 U P T O 2 0 C H A R
L I N E 4 U P T O 2 0 C H A R
13
Handset Controls and Indicators
# Control/Indicator Description
1 Page Displays previous or next text in the display.
2 Active Indicator. When lit, indicates the system is active (power
applied).
3 Scroll highlight Scrolls the highlighted selection down. Selection cycles to the
top when the bottom line is highlighted and the switch is
pressed.
4 Thumb-wheel Makes fine actuator adjustment (towards display – up; away
from display – down). Only if Handset Enable is active.
5 Pause Pauses the test action. This must be pressed again for the test to
resume. Only if the application test software is active.
6 Stop Stops the test action. Only if the application test software is
active.
