Model 512.04 Hydraulic Power Unit

18

Operation

3.

At your test controller, make sure hydraulic pressure is turned off.

NOTE

Some controllers can remotely control the HPU. The Model 512.04
Hydraulic Power Unit does not support this feature.

4.

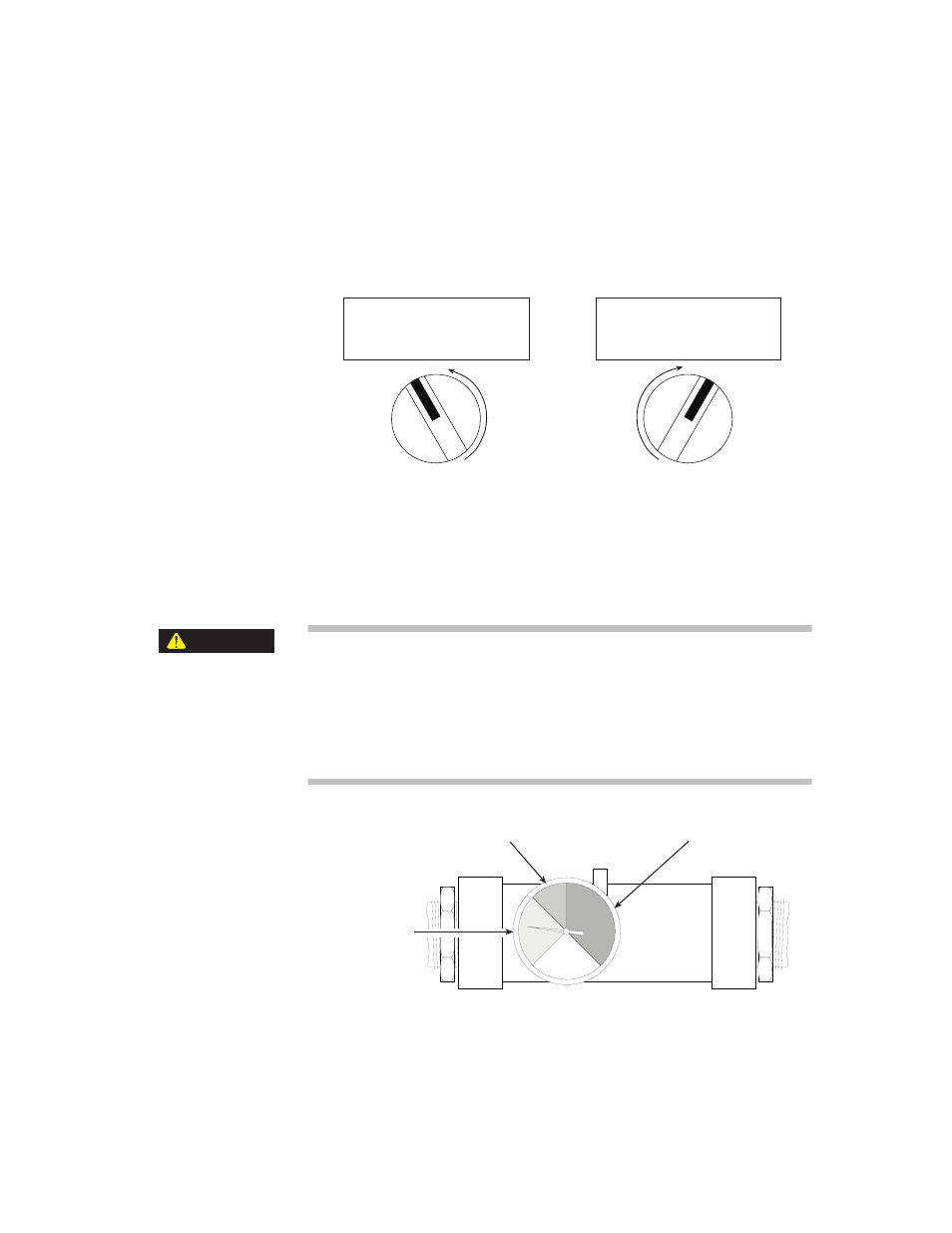

Turn the start switch to

START/LOW PRESS. and wait for the motor to

get up to speed.

Turn this switch to HIGH PRESS.

5.

Check to make sure the filter change gage’s needle stays in the green
zone.

NOTE

Cold fluid may push it temporarily into the red zone.

Turn the HPU off and change its filter if the needle stays in the yellow
or red zones.

Do not run the HPU if the filter gage is in the red region.

When the gage needle stays in the red zone, some hydraulic fluid is
bypassing the filter. This unfiltered fluid can wear or damage hydraulic
components.

Turn the HPU off when the filter gage reaches the red zone and change the
filter.

Check the Filter Change Gage

6.

Check the output pressure gage for the correct output pressure. The
pressure is factory set for 13.8 MPa (2000 psi).

START

LOW

PRESS.

HIGH

PRESS.

START

LOW

PRESS.

HIGH

PRESS.

CAUTION

Green Zone
(normal)

Yellow Zone
(warning to change)

Red Zone
(do not operate)
