Model 512.04 Hydraulic Power Unit
Installation
13
Installation
Perform the following to install the Model 512.04 Hydraulic Power Unit.
1.
Position the hydraulic power unit.
You should determine where to put the hydraulic power unit. Since it
is connected to the other hydraulic equipment through hydraulic lines,
the HPU can be located remotely.
•
The air cooled HPU must be located where adequate air
movement for cooling can occur.
•
The water cooled HPU requires a source of water.
•
The base of the HPU has four holes that may be used to secure
the unit in place.

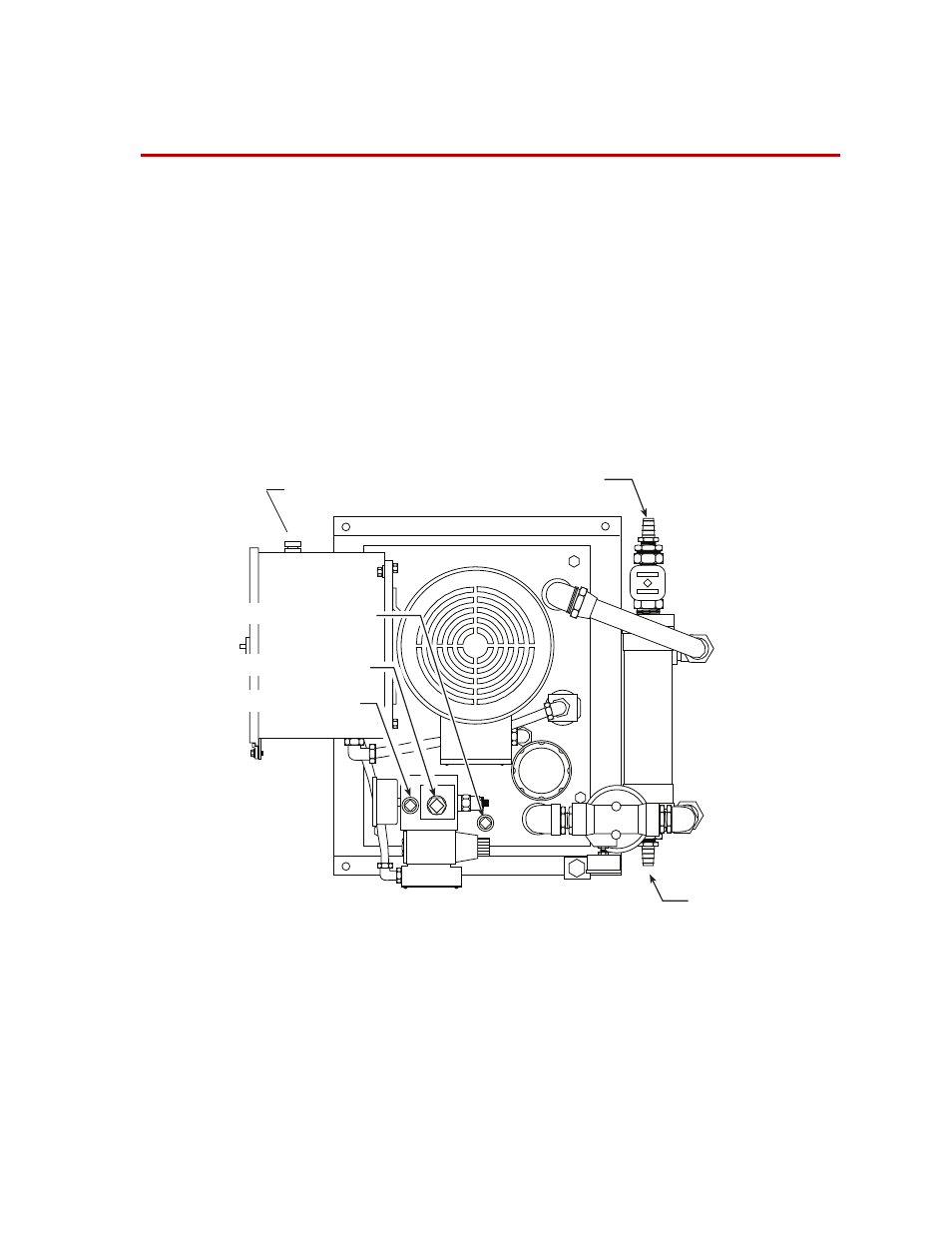

Connection Locations
Drain Line Connection
Emergency Stop Connection
Cooling Water In
Return Line Connection
Pressure Line Connection
Cooling Water Out
