Connecting Liquid Nitrogen to the Chamber
Series FEC Environmental Chamber Product Manual
Installation
27
Connecting Liquid Nitrogen to the Chamber
Prerequisites
•
Review lab safety procedures and review any safety data furnished by the
LN2 supplier.
•
Ensure that the area around the chamber is well ventilated.
The environmental chamber is not rated for combustible liquids.
When heated, flammable and combustible liquids can explode and cause
personal injury and equipment damage.
Do not use flammable or combustible liquids in the environmental chamber.
Always operate the chamber with the door closed.Do not override any safety
features.Do not modify the chamber without consulting MTS Systems
Corporation.

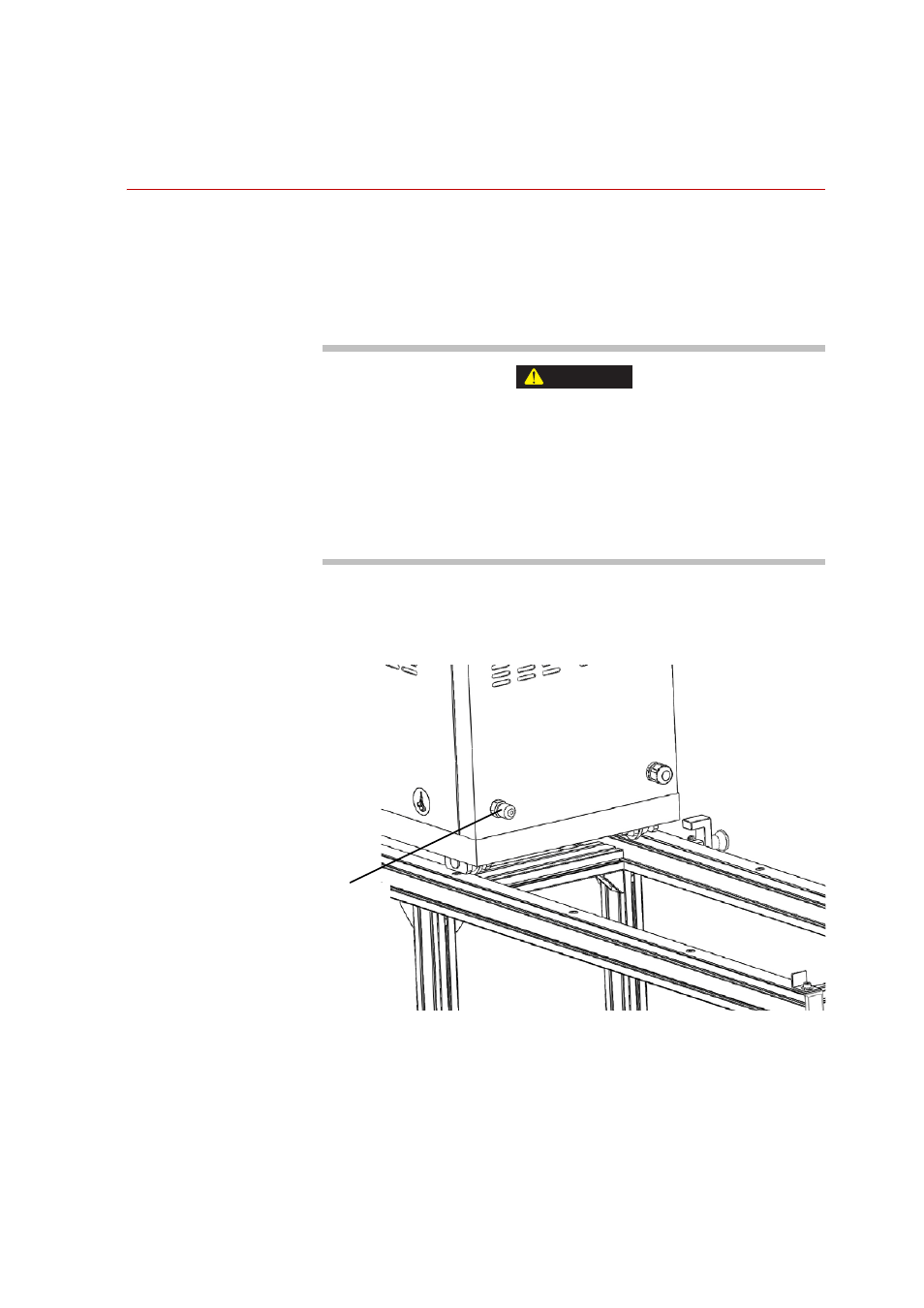

Connecting an LN2 supply tank to the chamber:
WARNING
Connect to liquid
nitrogen tank (Thread
size M20x1.5).
Power Line
LN2 Input
