MTS Series FEC Environmental Chamber User Manual
Page 21
Installing Bracket of Environmental Chamber
Series FEC Environmental Chamber Product Manual
Installation
21

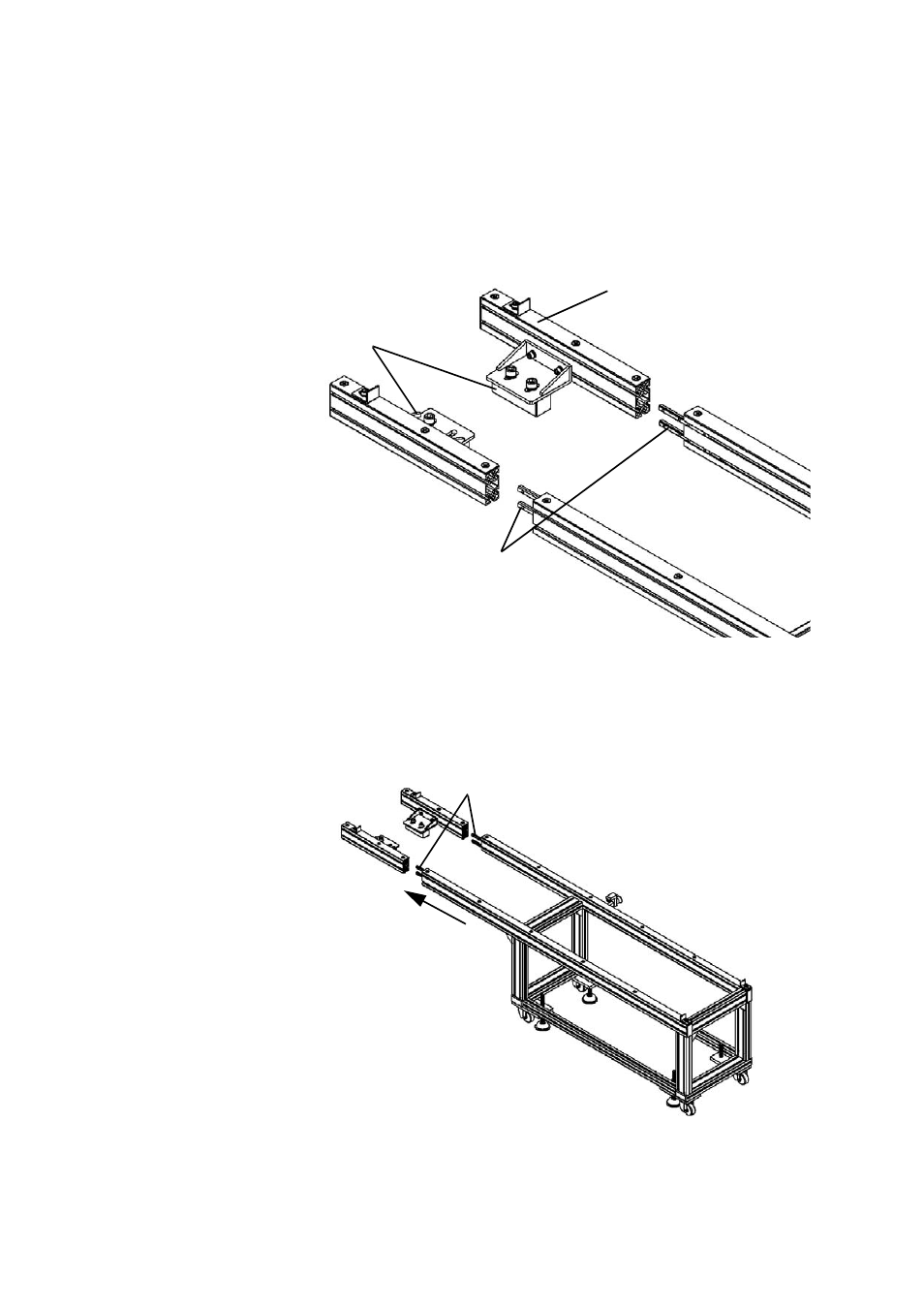

1. Install the front guide bracket to the accessory mounting locations on the
testing machine. Fix bracket onto the testing machine by adapter block, do
not tighten until alignment in next section is finished.
2. Connect the front and rear guide bracket. Push the rear guide bracket
forward and connect it with the front guide bracket using connector.
Front Guide Bracket
Fix bracket onto
the testing
machine by
adapter block.
Connect front and rear guide
with the guide connector.
Connect front and
rear guide with the
guide connector.
