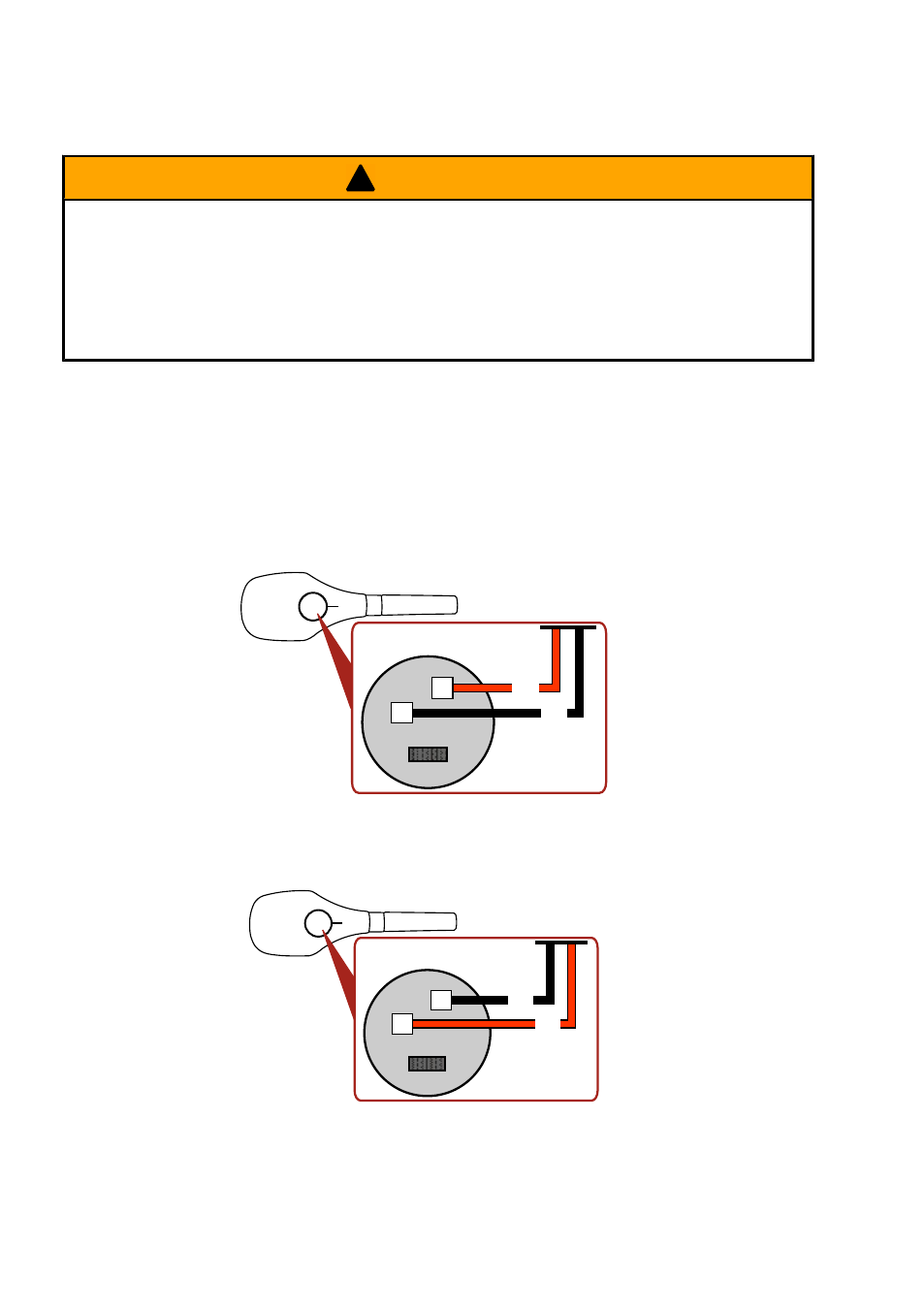

Motor Control Wiring
!
WARNING
Performing service or maintenance without first disconnecting the
battery can cause product damage, personal injury, or death due to
fire, explosion, electrical shock, or unexpected motor starting. Always
disconnect the battery cables from the battery before maintaining,
servicing, installing, or removing motor components.
IMPORTANT: Disconnect the VariMAX motor control wiring for service
only. Do not reconfigure the motor control wiring when reorienting the
motor top housing between transom and bow applications.
NOTE: If necessary, use needle nose pliers to connect the motor control
wires to their respective terminal. Ensure the wiring connection is
secure.
RED
BLK
B
A
45692
Transom mount application
BLK
RED
A
B
45693
Bow or pontoon mount application
